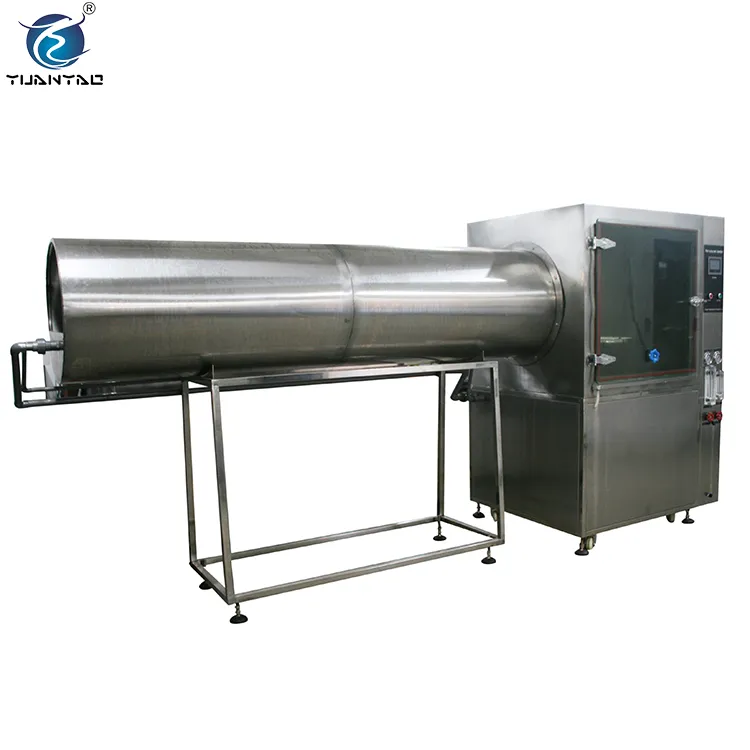

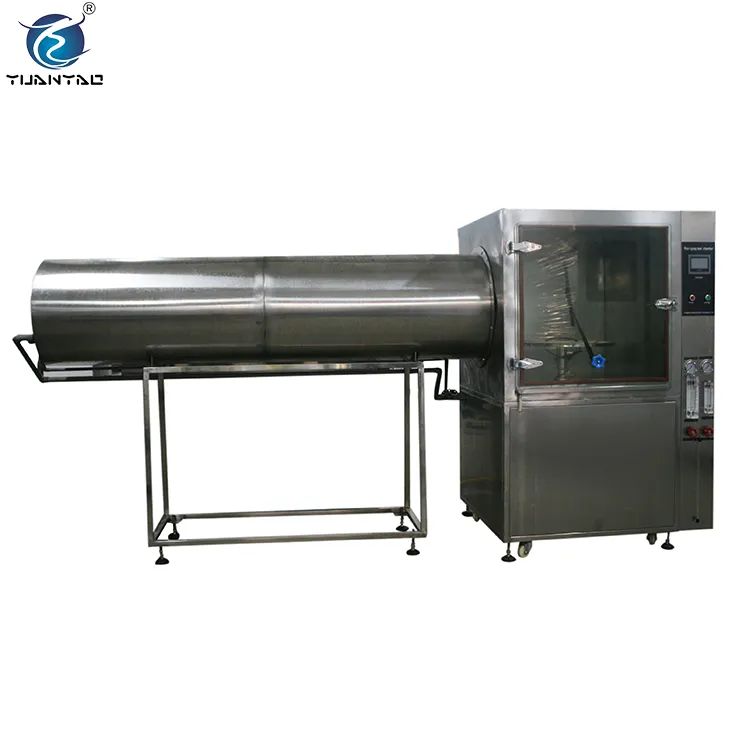

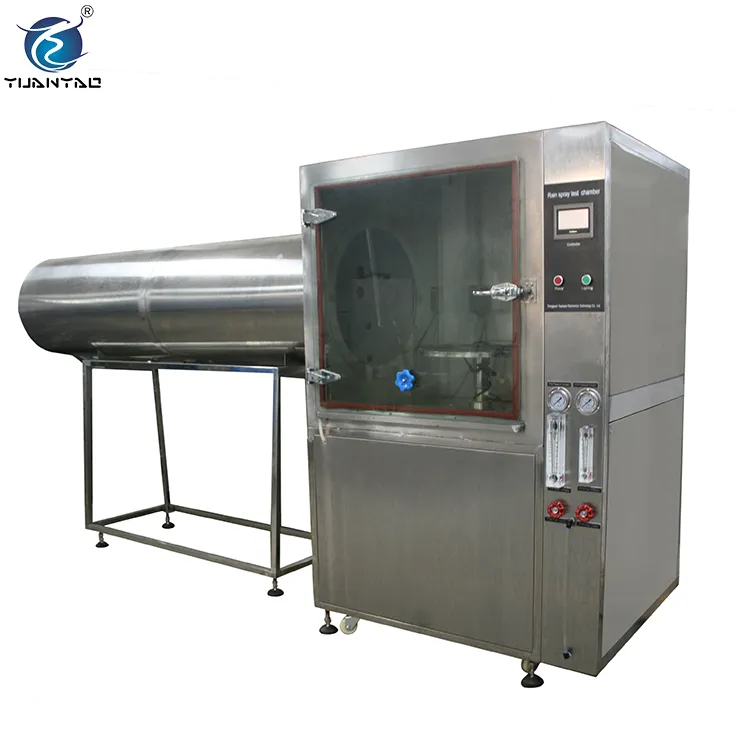

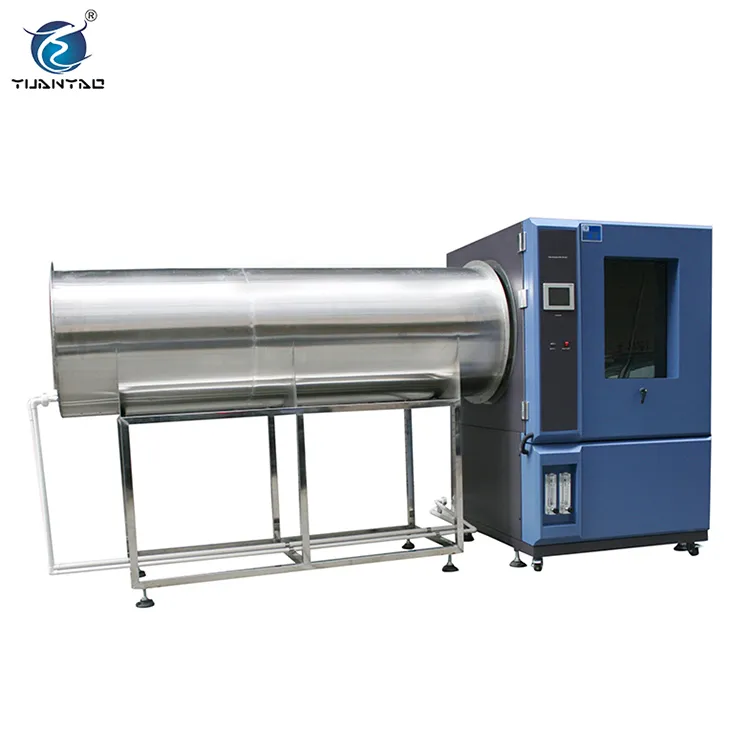

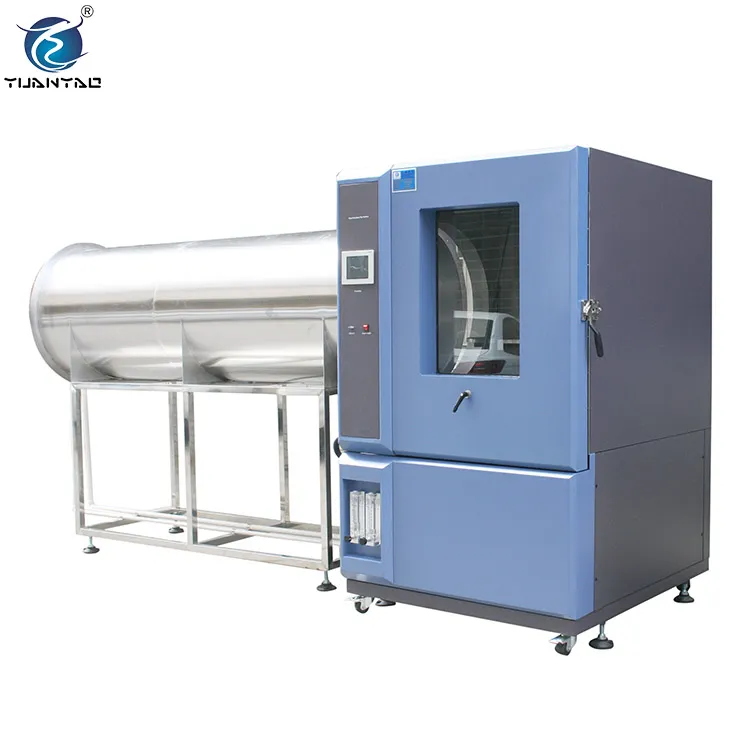

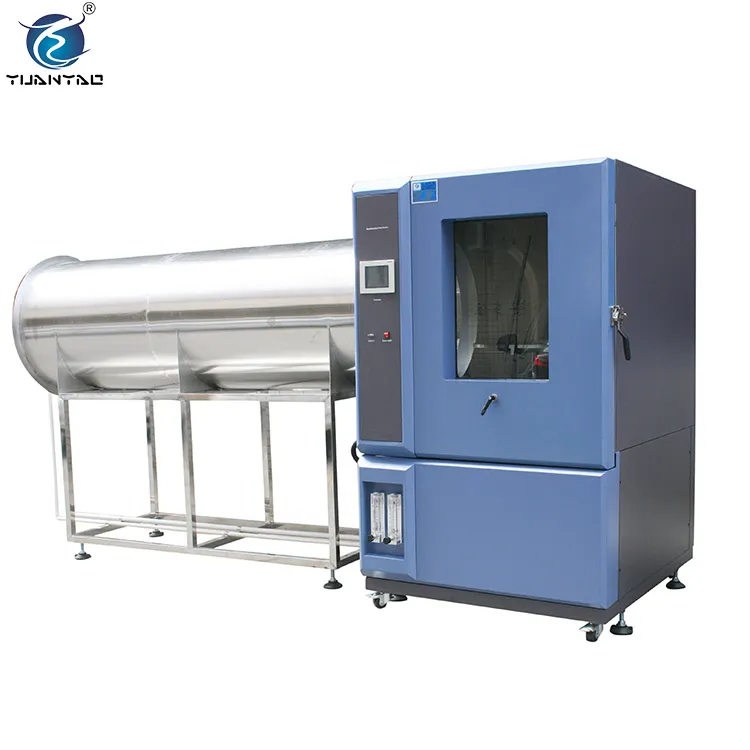

Laboratory Environment Test Equipment Rain Resistance Test Chamber

Product Description

Laboratory Environment Test Equipment Rain Resistance Test Chamber

Specification

1 Easy operation and resonable price
2 Internal material: SUS#304
3 Digital electronic controller
4 High quality, good performance
5 Protection: IP

Application

High Quality Water Resistance Test Chamber Mainly applies to communications products, auto parts (such as automotive rear-view mirror, car audio, automotive electronics, automotive lighting, car lights, motorcycle lamps, motorcycle mirrors), outdoor lighting and signaling devices.

Package and Delivery

Package: Strong wooden cases, meet the international standard.
Delivery details: In 15-20 working days.

Feature
1. Digital setting, operating easy, maintenance quickly.
2. Design consider auto maker's sand electronic industry testing.
3. Adopt large viewing glass can let operator see the specimen clearly.

Technicial parameters

Model		YSRT-1728-A		YSRT-1728-E(IEC-529)(CNS14165)
Internal Dim.W×H×D(mm)		1200×1200×1200		1200×1200×1200
External Dim.W×H×D(mm)		1750×1850×1300		1750×1850×1300
Water Temp.		Normal		Normal
Spray Type	Total Water Flow(L/min)	R1	1.8	IP×1	With in 1~1.5mm/min(In drip box)
		R2	3.2	IP×2	With in 3~3.5mm/min(In drip box)
		S1	24.5	IP×3	angle±600,R:400mm,1.1L/min
		S2	39.2	IP×4	angle±1800,R:400mm,1.8L/min
	Pressure of spray nozzle(kgf/cm*2)	R1	0.1	1.Flow rate of the water=0.07L/min 2.1P×3,Radius:400mm,16Number or open holes=16,total water flow:1:1L/min. 3.1P×4,Radius:400mm,25Number or open holes=25,total water flow:1:8L/min. *Radius:200mm,R400mm. (For 1P×3,1P×4 only)
		R2	0.3
		S1	1
		S2	3

(RPM)Test Specimen Frame		17RMP		1RPM
Spray Nozzle Rotation Speed		23RPM		Promote the pipe on both sides of the vertical line of 30 ° each time back and forth about four seconds to promote Swing 60 ° from vertical for 4 seconds at one time Promote the pipe on both sides of the vertical line of 180 ° for about 12 seconds to promote one round Swing 180 ° from vertical for 12 seconds at one time





Material	Interior	SUS#304
	Exterior
Other Components		Chamber lamp.Wiper casters with Adjusters		Chamber lamp.Wiper,casters with Adjusters

Power Source(K.W.)		AC 1Ψ 220V 60/50Hz 4KW

Except rain spray tester, Dongguan Yuan Yao Electronics Technology Co., Ltd also can supply:

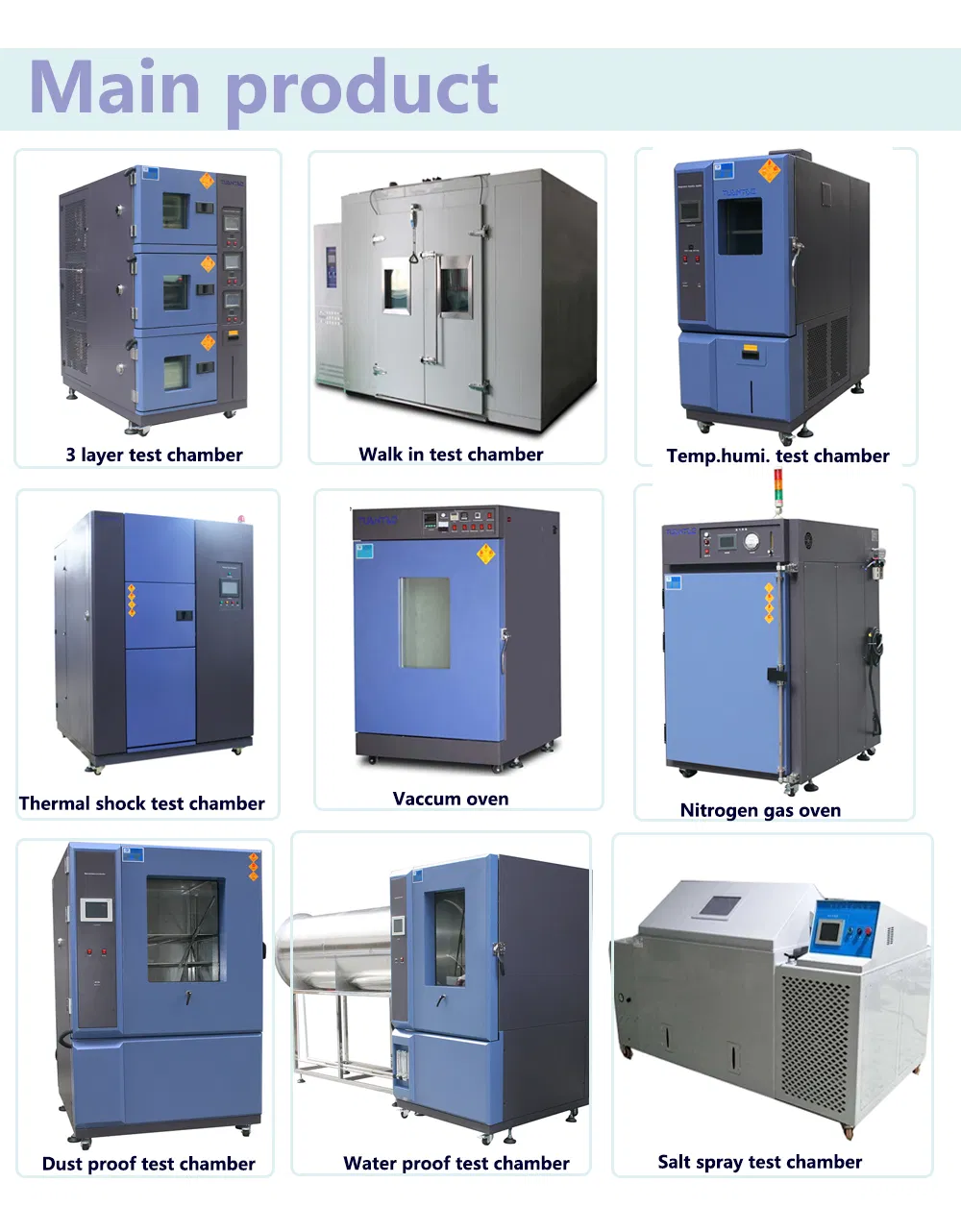

Precision Oven Tester, Triple Type Temp. & Humidity Chamber, Temp. & Humidity Control Host, Air Thermal Shock Tester, Liquid Thermal Shock Tester, Salt Spray Tester, Walk-in environmental Test Room, Temp. Humidity &Vibration Combined Test Chamber, Aging Oven Tester, Burn-in test equipment, Dust Tester, Steam Aging Tester, Vibration Tester, Tensile Tester, Drop Tester and so on

If you are interested in the items, please contact me soon.
