Home > Products > Test Machine > Laboratory Transformer Oil Lubricating Oil Turbine Oil Density Tester (DST-3000)
Laboratory Transformer Oil Lubricating Oil Turbine Oil Density Tester (DST-3000)
Laboratory Transformer Oil Lubricating Oil Turbine Oil Density Tester (DST-3000)ApplicationThe petroleum products density laboratory equipment DST-3000 is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter ......
Send Inquiry
Product Description
Laboratory Transformer Oil Lubricating Oil Turbine Oil Density Tester (DST-3000)
Application
The petroleum products density laboratory equipment DST-3000 is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)". The density tester is suitable to determine density of liquid petroleum products using a densimete.
Working Condition
1. Ambient temperature: -10°C ~ +40°C; The temperature should not be changed more than ±2°C;
2. Relative humidity: ≤85%;
3. The instrument should be placed on a flat workbench during operation. Please try your best to reduce air convection during a test.
4. If the instrument has not been used for a long time, please store it at a dry place.
Technical Parameters
Detailed images
For more detals, please contact me freely!
Main Testers
1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Multi-functional Vibration Tester VBT-2000
9.Petroleum Products Density Tester DST-3000
10.Distillation Range Tester DIL-201
11.Liquid Phase Corrosion Tester TPS-05
12.Copper Corrosion Tester TP-113
13.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
14.Dew Point Tester DPME-P
15.Vehicle Gear Oil Channel Point Tester Model TP-0030
16.Anti-Corrosive Oil/Grease Salt Spray Corrosion Tester Model TP-0081
17. Mechanical Impurities Tester Model PC-511
18. Air Release Value Tester Model TP-0308
19.Distillate Fuel Oil Oxidation Stability Tester Model TP-175
20. Foam Characteristics Tester Model FC-892
21.Dark Petroleum Products Sulfur Content Tester Model TPC-120
22. Petroleum Products Aniline Point Tester Model TP-262A
23.Petroleum Products Ash Tester Model TP-508
24.Petroleum Products Chroma Tester Model TP-225
25. Automatic Petroleum Products Carbon Residue Tester (Micromethod) CS-0625
26.Spontaneous Ignition Point Tester FP-706
27.Fully Automatic Glassware Washing Machine TP504
28. Lube Oil/Grease Evaporation Loss Tester EL-7325
29. Crude Oil And Fuel Oil Sediment Tester TP-130
30. Wide Temperature Range Lubricating Grease Drop Point Tester TLS-22
31. Crude Oil And Petroleum Products Salt Content Tester SCA-068
32. Petroleum Products Saturated Vapor Pressure Tester(Reid Method) TP-8017
33.Petroleum Products Freezing Point Tester TP-2430
34. Oxygen Bomb Calorimeter TP-1B
35. Existent Gum Tester TP-509A
36.Octane and Hexadecane Value Tester TP-131
37.Automatic Gasoline Oxidation Stability Tester TP-148
38. Light Petroleum Products Sulfur Content Tester (Lamp-Kindled Method) TP-119
39. Resistant oil Chlorine Content Tester TP388
40. Distillate Fuel Mercaptan Sulfur Tester TP-624
About Us
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.
TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
Service Commitment
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.
Package & Delivery
*Standard export wooden case with high quality cushioning material ensures that the customers get the item in good condition.
*Carefully check every packing detail before delivery to avoid any troubles during the transportation.
*Appointed logistics company could be used according to customers demands.
* Do our best to make sure customers can get their goods in time.
Application
The petroleum products density laboratory equipment DST-3000 is designed and made as per national standard GB/T 1884-2000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter methods)". The density tester is suitable to determine density of liquid petroleum products using a densimete.
Working Condition
1. Ambient temperature: -10°C ~ +40°C; The temperature should not be changed more than ±2°C;
2. Relative humidity: ≤85%;
3. The instrument should be placed on a flat workbench during operation. Please try your best to reduce air convection during a test.
4. If the instrument has not been used for a long time, please store it at a dry place.
Technical Parameters
| Model | DST-3000 Petroleum Product Density Laboratory Equipment |
| Power supply | AC 220V±10%, 50 Hz |
| Bath cubage | Inner Dia.300 mm×340 mm |
| Heating power | 700 W, 1000 W |
| Temperature controlling range | 0 °C~100 °C |
| Temperature controlling accuracy | ±0.1 °C |
| Temperature sensor | Industrial platinum resistance; its scale number is Pt100 |
| Thermometer | It is a total immersed mercury thermometer having scale division of 0.2 °C |
| Ambient temperature | -10 °C~+40 °C, Temperature fluctuation ≤ 2 °C |
| Relative humidity | ≤85% |
| Dimension | 77*55*95cm |
| Weight | 32kg |

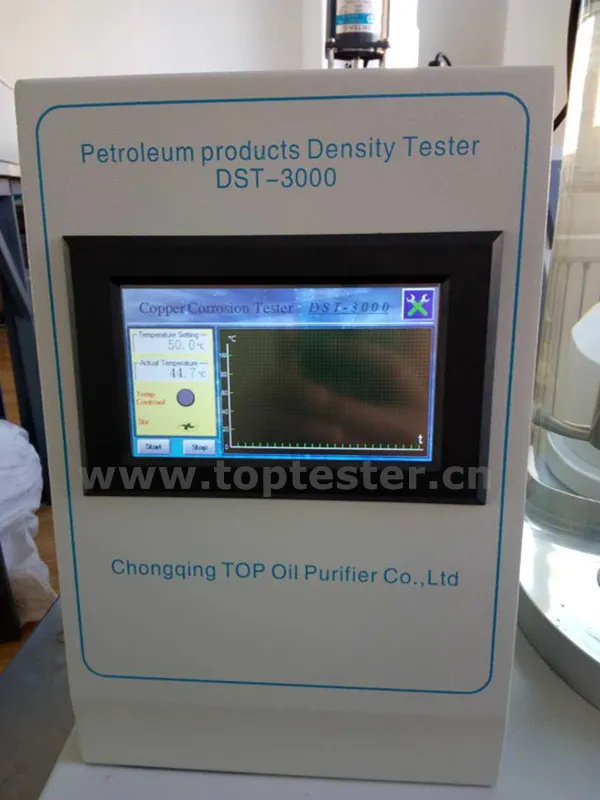

Detailed images
For more detals, please contact me freely!
