Large Current Booster 15000A Primary Current Injection Tester
HMSLQ-15000A DC primary current injection testerOverviewPrimary current injection tester is a necessary equipment for all walks of life need large current place in electrical commissioning, used in power plants, substations, electrical manufacturing factory and scientific research laboratory, and ot......
Send Inquiry
Product Description
HMSLQ-15000A DC primary current injection tester
Overview
Primary current injection tester is a necessary equipment for all walks of life need large current place in electrical commissioning, used in power plants, substations, electrical manufacturing factory and scientific research laboratory, and other units, which belongs to the short-time or intermittent work system, HMSLQ series high current generator produced by our company has the characteristics of stable performance, convenient maintenance etc.
Product structure

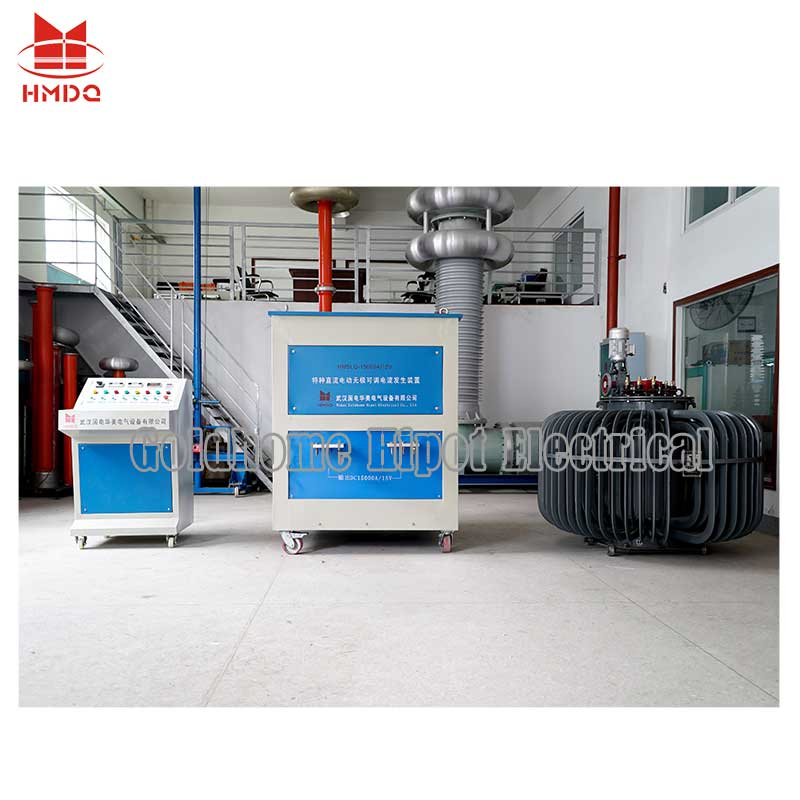

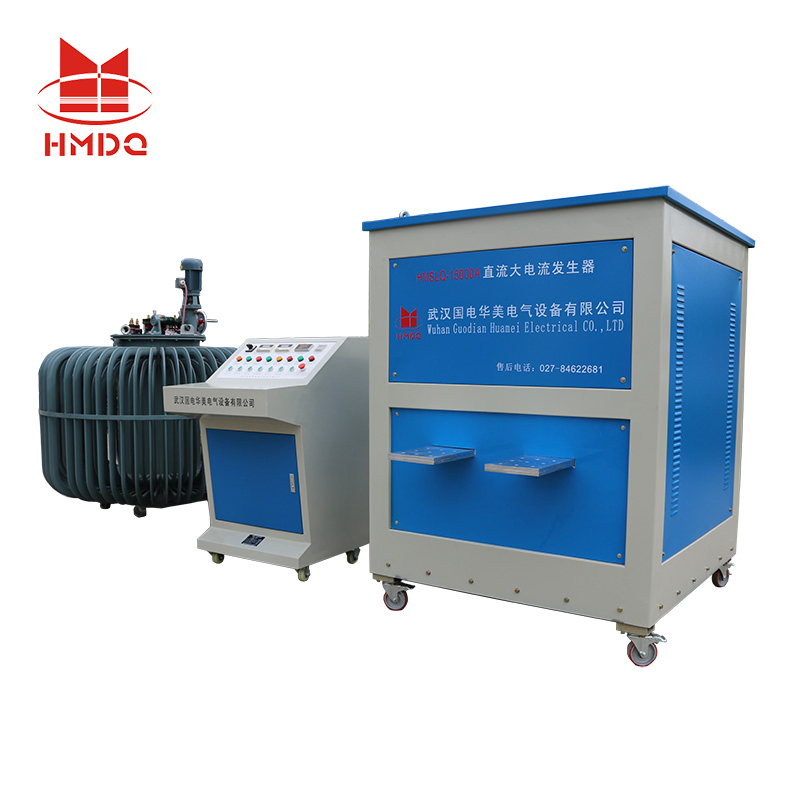

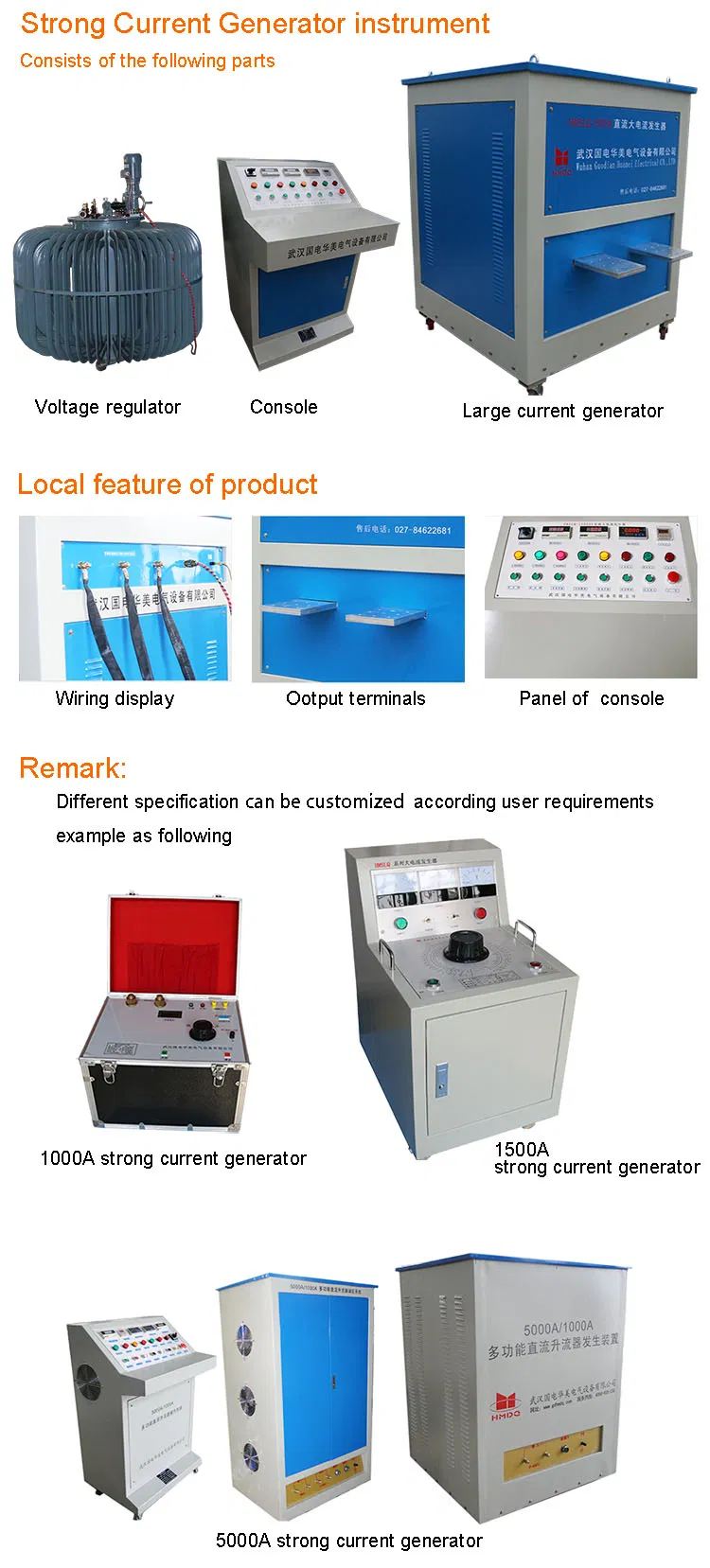

The structure of the primary current injection tester is divided into three parts:Console and low voltage high current generator, electric induction voltage regulator.From the low voltage high current generator output wiring lead test products, through the low voltage high current generator on the current transformer and console on the ammeter, voltmeter, indicator, button to measure, monitor and operate
Detailed Image
HMSLQ-15000A DC primary current injection tester
Technical parameter

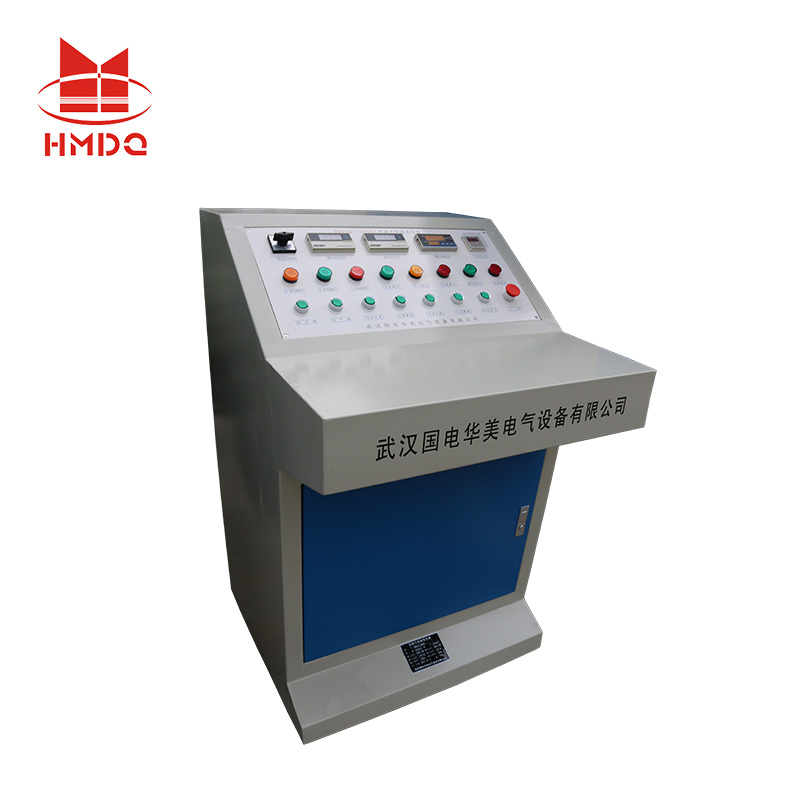

1.Controller:-Input voltage 3-phase 4 wire 380V
- Output voltage:380V/ single phase
- Dimension 800 (L) * 700 (W) * 1200mm (H)
- Weight:75kg
2.Electric self coupling voltage regulator:- Input voltage 380V/ single phase
- Output voltage 0~650V/ single phase
- Dimension 1300(L) * 680(W) * 1850mm (H)
- Weight:1000kg

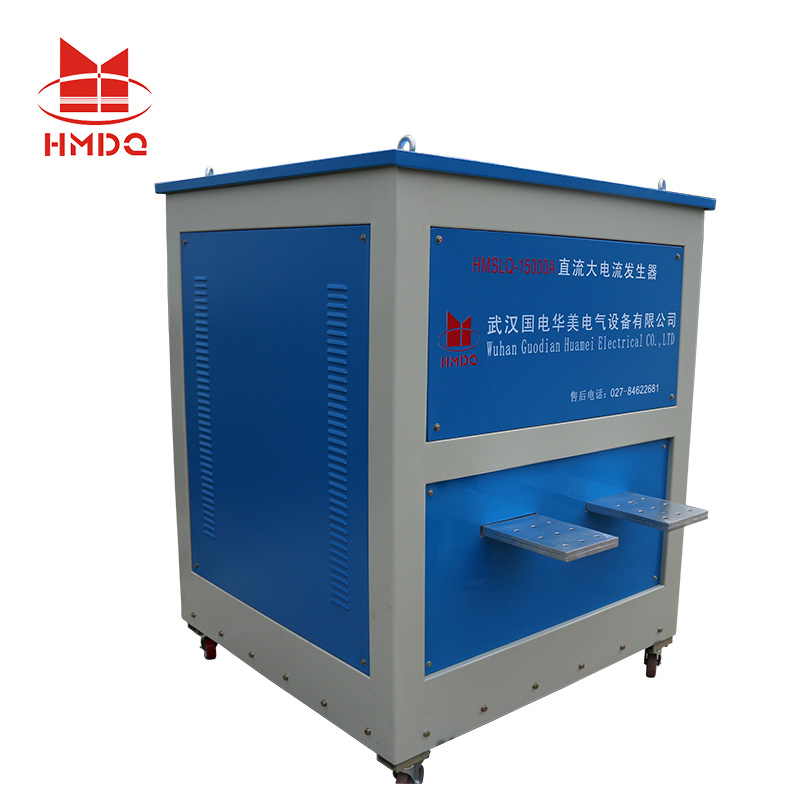

3.High current generator:- Input voltage 0~600V
- Output voltage DC 15V
- Output current 15000A
- Dimension 1600(L) * 1260(W) * 1700mm (H)
- Weight 1500kg
Overview
Primary current injection tester is a necessary equipment for all walks of life need large current place in electrical commissioning, used in power plants, substations, electrical manufacturing factory and scientific research laboratory, and other units, which belongs to the short-time or intermittent work system, HMSLQ series high current generator produced by our company has the characteristics of stable performance, convenient maintenance etc.
Product structure
The structure of the primary current injection tester is divided into three parts:Console and low voltage high current generator, electric induction voltage regulator.From the low voltage high current generator output wiring lead test products, through the low voltage high current generator on the current transformer and console on the ammeter, voltmeter, indicator, button to measure, monitor and operate
Detailed Image
HMSLQ-15000A DC primary current injection tester
Technical parameter
1.Controller:-Input voltage 3-phase 4 wire 380V
- Output voltage:380V/ single phase
- Dimension 800 (L) * 700 (W) * 1200mm (H)
- Weight:75kg
2.Electric self coupling voltage regulator:
- Output voltage 0~650V/ single phase
- Dimension 1300(L) * 680(W) * 1850mm (H)
- Weight:1000kg
3.High current generator:
- Output voltage DC 15V
- Output current 15000A
- Dimension 1600(L) * 1260(W) * 1700mm (H)
- Weight 1500kg
