Product Description

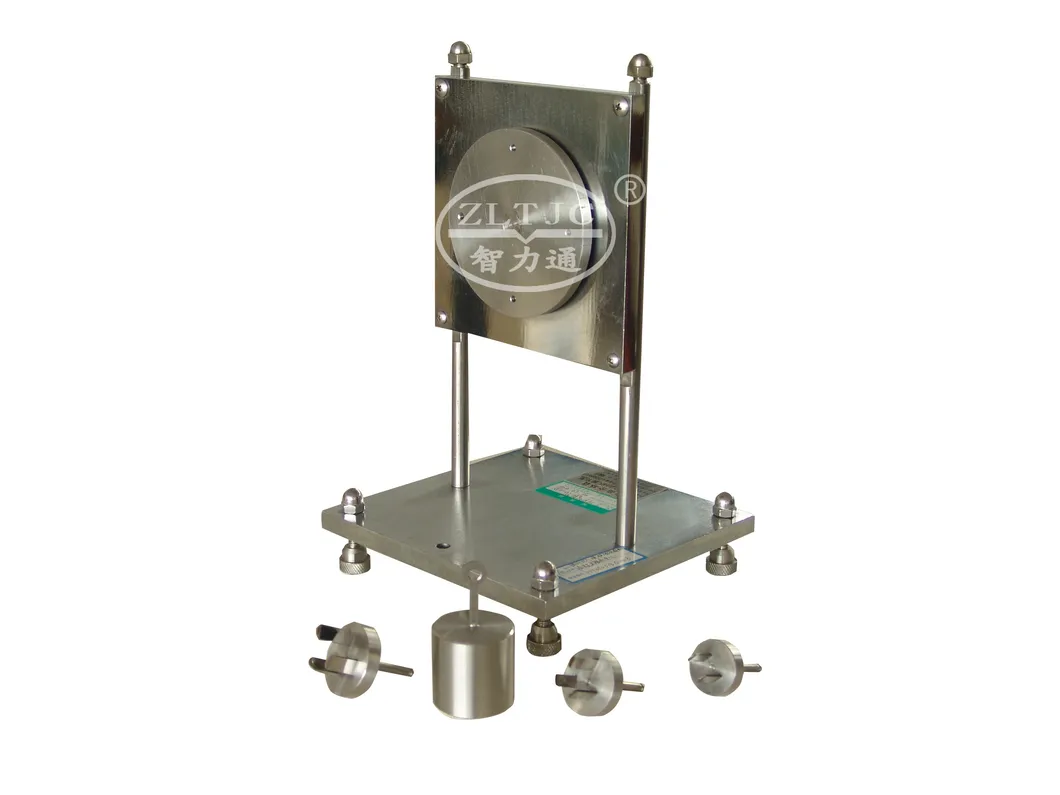

Indentation Device
Product details: Model ZLT-HP1.
For pressure tests on plug pin insulating sleeves at temperatures to 200° C with 2.5N loads, according to IEC60884-1 figure 41, BS1363 figure 10,IS 1293 Fig.6.
This apparatus has a rectangular blade (see IEC60884-1 figure 41A) with an edge 0.7 mm wide, to be used in the case of round pins, or a blade having a round shape (see figure 41b), with a diameter of 6 mm and an edge of (0.7± 0.01) mm,
in other cases, for simultaneous testing of 2 samples, with 2 testing frames, 2 load carriers and 2 sets of load weights, stand with bearing support T-shaped, rounded blade with radius 6 mm.
Ghness not exceeding 0.8mm.
Product details: Model ZLT-HP1.
For pressure tests on plug pin insulating sleeves at temperatures to 200° C with 2.5N loads, according to IEC60884-1 figure 41, BS1363 figure 10,IS 1293 Fig.6.
This apparatus has a rectangular blade (see IEC60884-1 figure 41A) with an edge 0.7 mm wide, to be used in the case of round pins, or a blade having a round shape (see figure 41b), with a diameter of 6 mm and an edge of (0.7± 0.01) mm,
in other cases, for simultaneous testing of 2 samples, with 2 testing frames, 2 load carriers and 2 sets of load weights, stand with bearing support T-shaped, rounded blade with radius 6 mm.
Ghness not exceeding 0.8mm.
| Rectangular blade | 0.7mm edge |
| Round blade | diameter of 6mm round shape ,0.7mm edge |
