Liquid Petroleum Products Density Tester with Densimeter Methods
GD-1884 Liquid Petroleum Products Density Tester with Densimeter Methods Application: GD1884 Liquid Petroleum Products Density Tester is designed and made as per the National Standard GB/T 18842000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods);It is......
Send Inquiry
Product Description

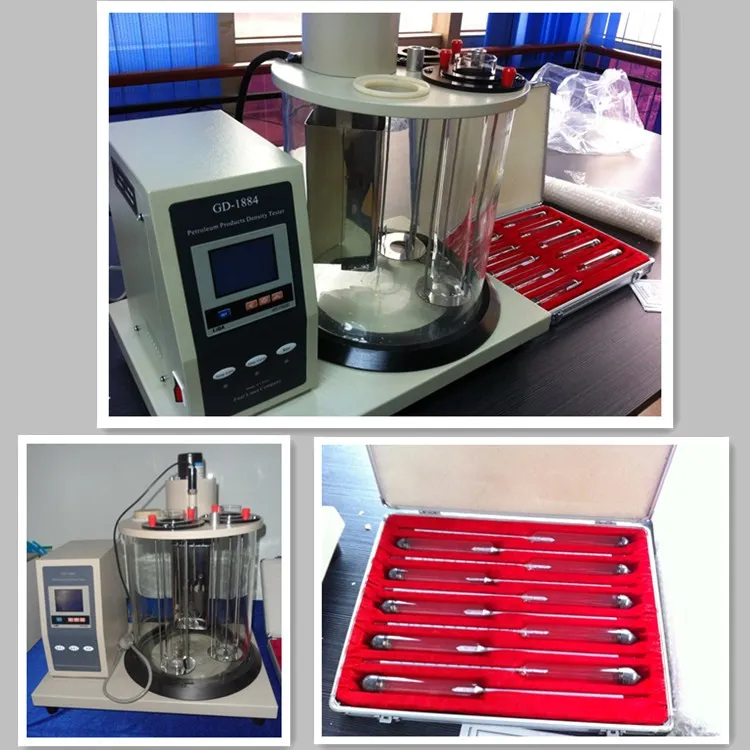

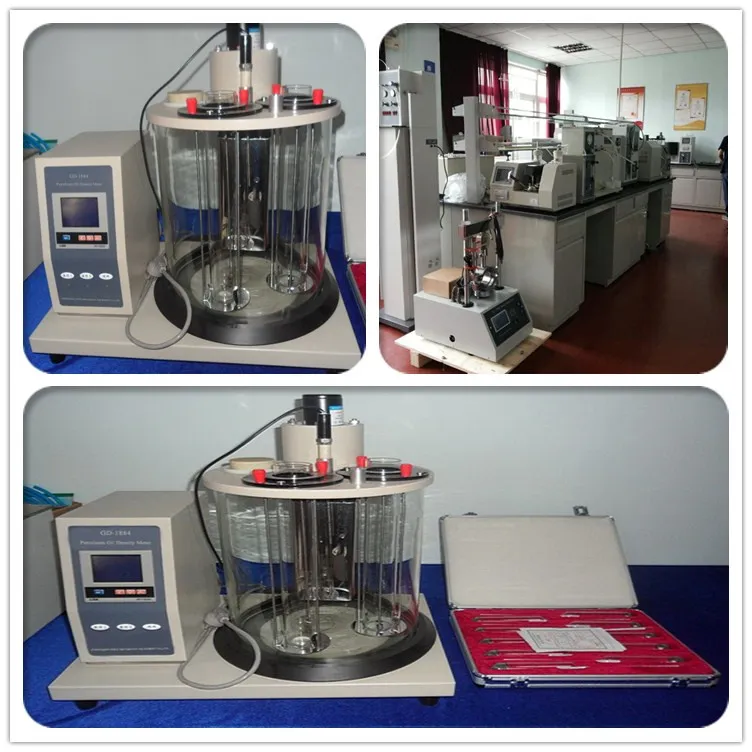

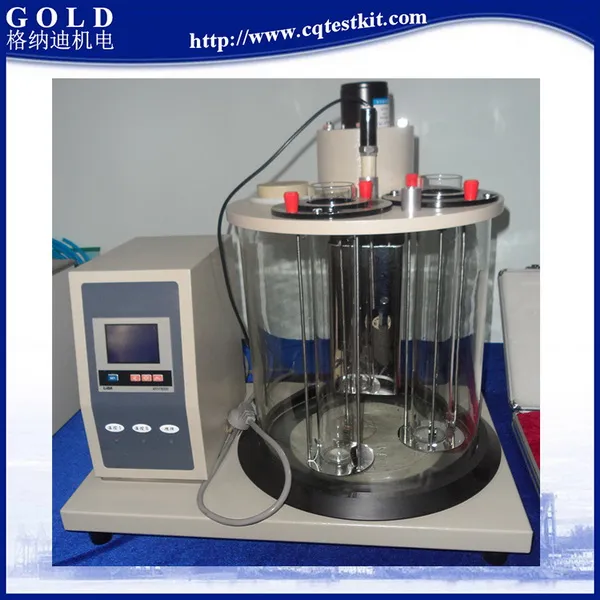

GD-1884 Liquid Petroleum Products Density Tester with Densimeter Methods
Application:
GD1884 Liquid Petroleum Products Density Tester is designed and made as per the National Standard GB/T 18842000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods);
It is suitable to determine density of liquid petroleum products using a densimeter.
Working condition:
Ambient temperature: -10Centigrade ~ +40Centigrade; the temperature should not change for more than ±2Centigrade;
Relative humidity: ≤85%;
The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test;
If the instrument is not used for a long time, please store it at a dry place;
Technical parameters:
Power supply: AC 220V±10%, 50 Hz;
Cubage of bath: 300×380 mm;
Heating power: 700 W; 1000 W;
Temperature controller:(1) Temperature controlling range: 0Centigrade~100Centigrade;
Temperature controlling accuracy: ±0.2Centigrade;
Temperature sensor: Industrial platinum resistance, Pt100;
Thermometer: total immersion mercury thermometer with scale division of 0.2 Centigrade;
Full Set:
Application:
GD1884 Liquid Petroleum Products Density Tester is designed and made as per the National Standard GB/T 18842000 "Test Methods for Density of Petroleum and Liquid Petroleum Products (Densimeter Methods);
It is suitable to determine density of liquid petroleum products using a densimeter.
Working condition:
Ambient temperature: -10Centigrade ~ +40Centigrade; the temperature should not change for more than ±2Centigrade;
Relative humidity: ≤85%;
The instrument should be placed on a flat workbench during operation and please try your best to reduce air convection during a test;
If the instrument is not used for a long time, please store it at a dry place;
Technical parameters:
Power supply: AC 220V±10%, 50 Hz;
Cubage of bath: 300×380 mm;
Heating power: 700 W; 1000 W;
Temperature controller:(1) Temperature controlling range: 0Centigrade~100Centigrade;
Temperature controlling accuracy: ±0.2Centigrade;
Temperature sensor: Industrial platinum resistance, Pt100;
Thermometer: total immersion mercury thermometer with scale division of 0.2 Centigrade;
Full Set:
No. | Name | Unit | Quantity |
1 | GD-1884 Liquid Petroleum Products Density Tester | set | 1 |
2 | Thermometer(-20~102°C,graduation 0.2°C) | pc | 1 |
3 | SY-05 densimeter(10 pcs) | set | 1 |
4 | Sensor nipple | pc | 1 |
5 | Thermometer plug(3#) | pc | 2 |
6 | 500ml tube | pc | 2 |
7 | Thermometer collar(1#) | pc | 4 |
8 | Rubber plug(21#) | pc | 1 |
9 | Power wire(250V 10A) | pc | 1 |
10 | Fuse 10A(φ5×20) | pc | 2 |
11 | User manual | copy | 1 |
12 | Manufacture certification | copy | 1 |
13 | Warranty Card | copy | 1 |
14 | Temperature controller manual | copy | 1 |
