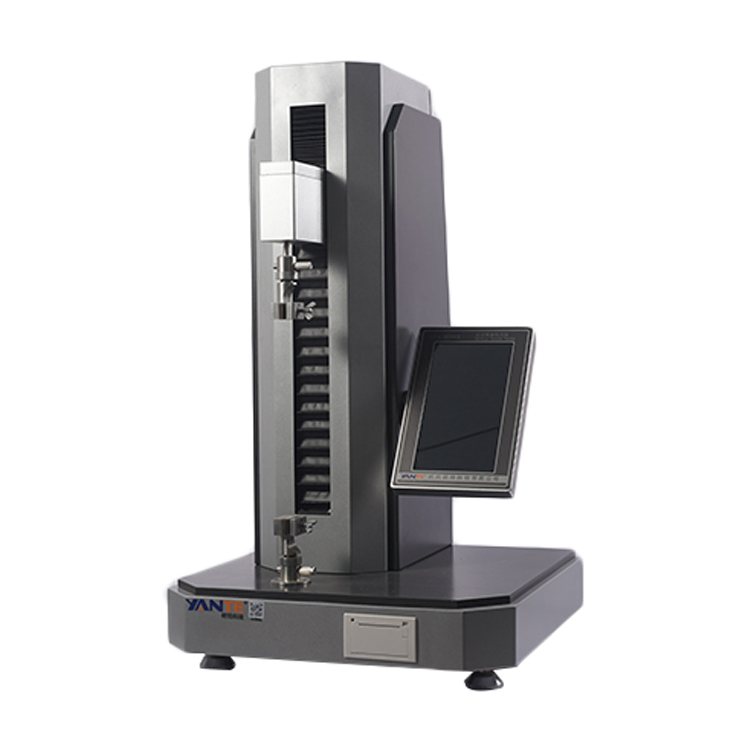

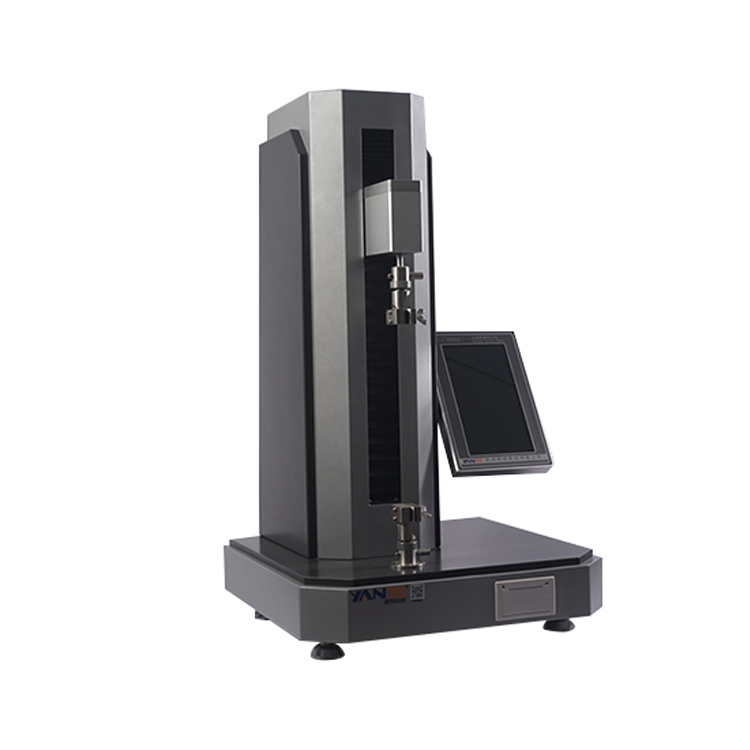

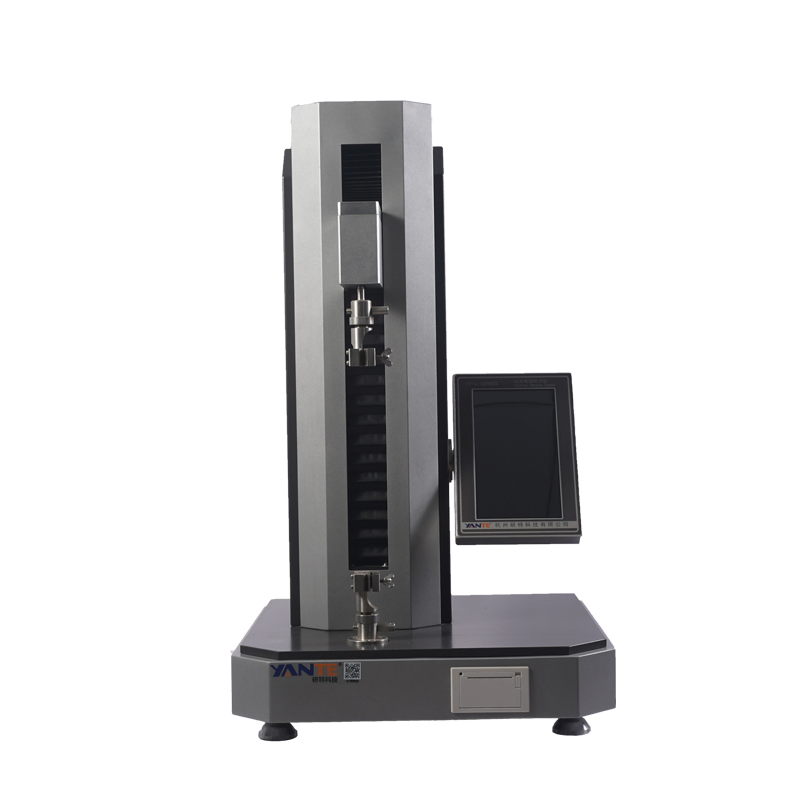

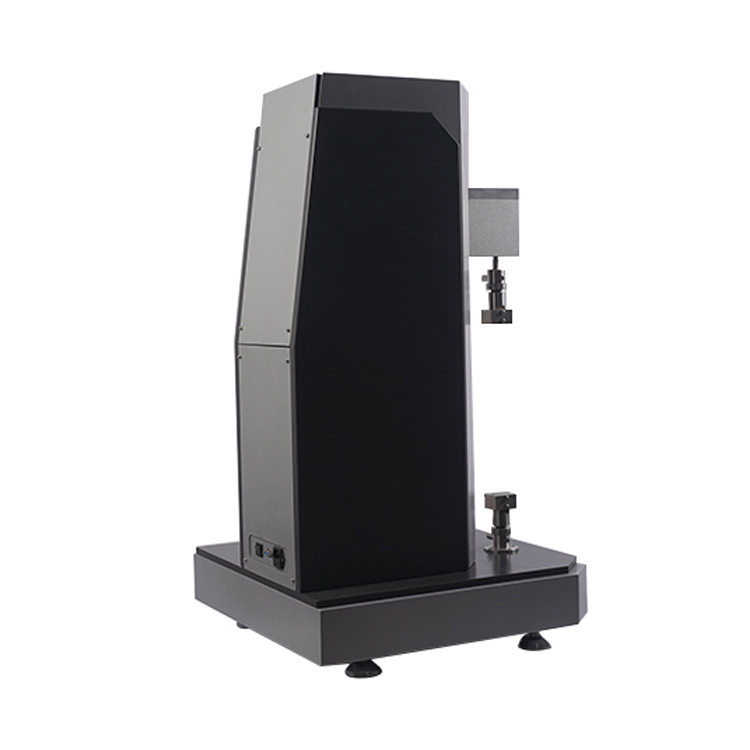

Load Plastic Elongation Testing Machine
YT-L SERIESYT-L series is a new type of instrument researched according to the requirements of the latest national standards. Application FunctionXMeasure tension resistance, tensile strengthXMeasure elongation, crack length, tensile energy absorption, tensile index, tensile energy absorption indexX......
Send Inquiry
Product Description

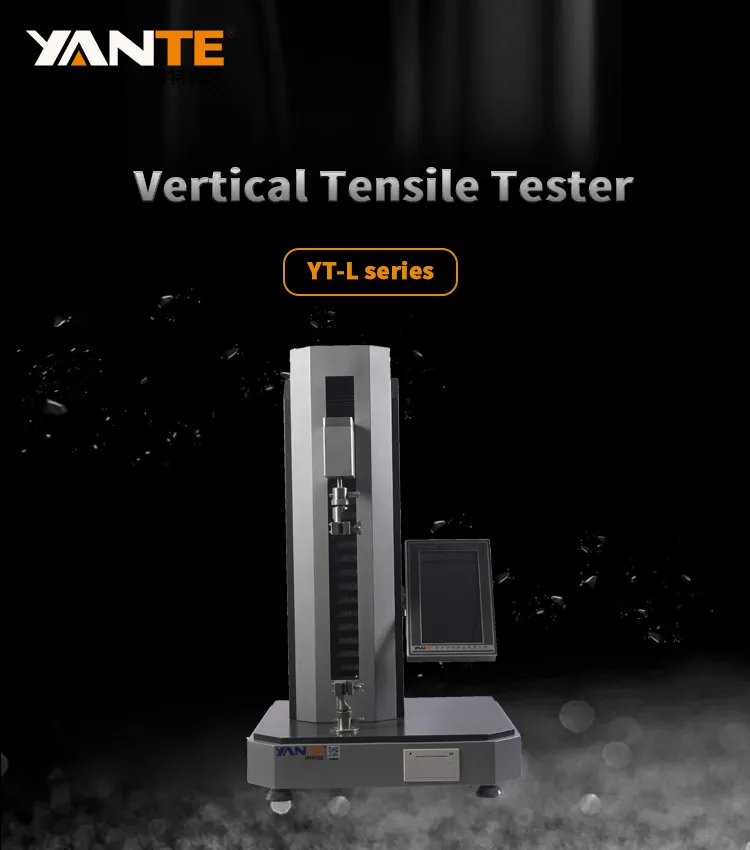

YT-L SERIES
YT-L series is a new type of instrument researched according to the requirements of the latest national standards.
Application Function
XMeasure tension resistance, tensile strength
XMeasure elongation, crack length, tensile energy absorption, tensile index, tensile energy absorption index
XMeasure adhesive tape peel strength
.
Power Supply | AC (100~240)V (50/60)Hz 100W |
Working environment | (10~35)ºC, Humidity≤85% |
| Measuring Range | 0.3~30, 3~300,10~1000N |
Resolution | 0.01N(YT-L30) / 0.1N(YT-L300) / 0.1N(YT-L1000) |
Indicating Accuracy | ±1.0% |
Working Capacity | (35~300)mm / (35~500)mm |
Sampler Width | 15,25,50 (Can be ordered) mm |
Tensile Velocity | 1.0~480(Can be adjusted digitally )mm/min |
Built-in thermal printer | |
Communication interface | RS232 |
Dimension | 400(L)×325(W)×990(H) mm |
| Net Weight | 36.5kg |
Application Range
Film
Product Features
Features automatic reset
data memory
overload protection and fault self-diagnosis
ball screw and 3 guide shafts are adopted in the transmission mechanism, which is more stable and precise.
low noise and precise control by the stepping motor (servo motor)
5-inch TFT color LCD touch screen
Real-time display on the stretching time, load tension, etc.; and the tensile curve can be displayed.
The CPU adopts 32-bit ARM processor, which improves the processing speed of the instrument, and the calculation data is more accurate and fast.
Variable sample size,tensile speed and measuring range(0-500N)
Thermal printer core does not need ink and ribbon.
Conjunct with computer communication software by standard RS232 interface(optional)
Optional Accessories(Purchase separately)
25mm Clamping head (installation host) 1 setplastic film, peel strength measurement
50mm Clamping head (installation host) 2 set non-woven fabric measurement
RS232 interface and computer software 1 set
Standards
üGB/T 12914 GB/T 2792 GB/T 24218.3 GB/T 1040 ISO1924
üISO12625 TAPPI T494
