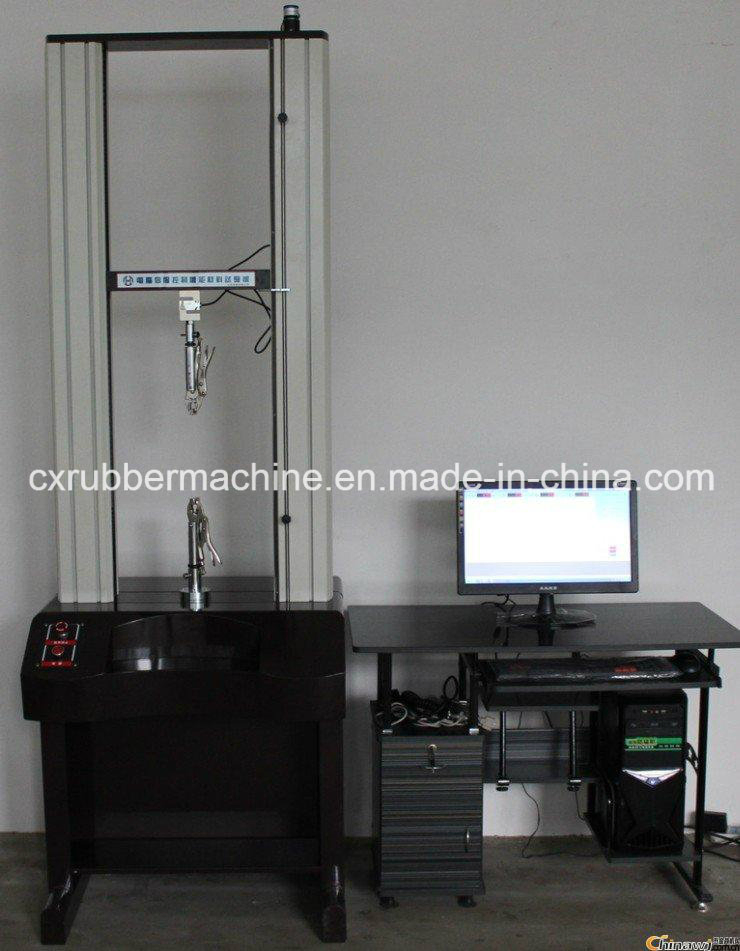

Multi-Function Electronic Tensile Machine/Universal Testing Machine/ Elongation Testing Equipment
rMulti-Function Electronic Tensile Machine/universal testing machine/elongation testing equipmentuseage:Universal Testing Machine is applicable in testing the rubber ,plastic film ,cable , fabric , paper ,aluminum board and so on . It is ideal for high-capacity tension, compression, bend/flex, and s......
Send Inquiry
Product Description
rMulti-Function Electronic Tensile Machine/universal testing machine/elongation testing equipment
useage:
Universal Testing Machine is applicable in testing the rubber ,plastic film ,cable , fabric , paper ,aluminum board and so on . It is ideal for high-capacity tension, compression, bend/flex, and shear testing, these machines are guaranteed to meet the relative requirements of ISO, ASTM, JIN, GB and many other testing standards.
FEATURES:
- Minicomputer control; LCD display;
- Multi-testing items, including tensile resistance, peeling strength, break force rate and peel force, etc.
- 3 kinds of testing data: Max. value, Min. value and average.
- Group sample statistical analysis;
- Functions of auto zero, error indication, overload protection and process protection.
- RS232 interface;
- Printer interface (mini-printer);
SPECIFICATION:
Packing with standard export wooden cases.
Shipping by sea with CFS from Qingdao sea port or for your requirement.
| Max. test force | 10KN |
| Measurement range of test force | 0.4%-100% |
| Testing machine accuracy grade | 1 |
| Accuracy of test force | ≤±1% |
| Crosshead displacement resolution | 0.01mm |
| Adjust speed range | 0.01-500mm/min |
| Tensile space | 550mm |
| Compression space | 600mm |
| Host type | single-arm structure |
| Host dimension | 600mm*450mm*1500mm |
| Working environment | room temperature 45°C humidity 20%-80% |
