Multifunctional Density Tester Kinematic Viscosity and Viscosity Index Tester
GD-1884B Multifunctional Density Tester Kinematic Viscosity and Viscosity Index TesterIntroduction:This instrument is designed and made as per national standard of People's Republic of China GB/T 1884-ASTM D1298, GB/T 265-ASTM D445 and GB/T 1995-ASTM D2270. It can determine the density(liquid pe......
Send Inquiry
Product Description

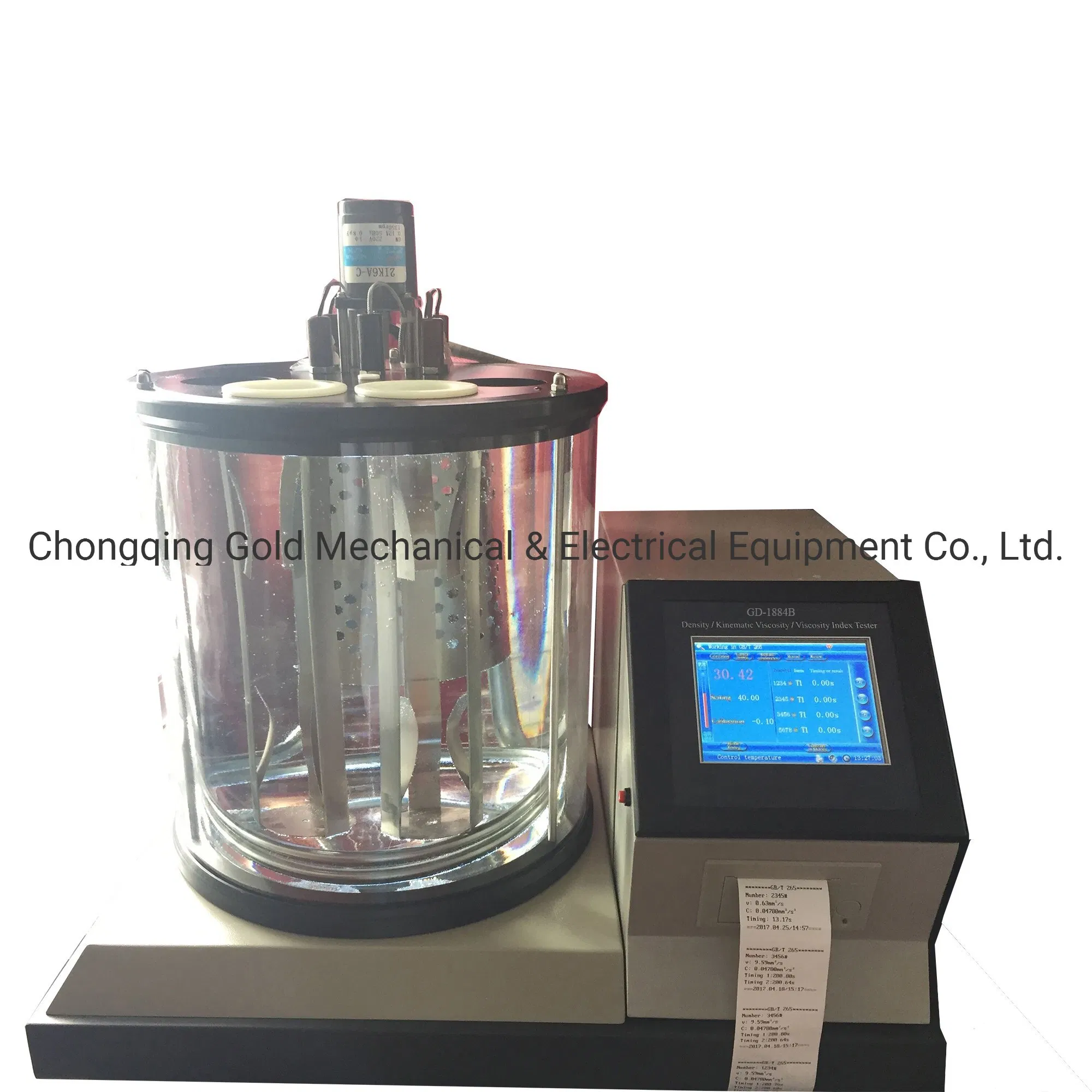

GD-1884B Multifunctional Density Tester Kinematic Viscosity and Viscosity Index Tester
Introduction:
This instrument is designed and made as per national standard of People's Republic of China GB/T 1884-ASTM D1298, GB/T 265-ASTM D445 and GB/T 1995-ASTM D2270. It can determine the density(liquid petroleum products) as per GB/T 1884, the kinematic viscosity(Newtonian liquids) as per GB/T 265 and viscosity index(Lubricating oils) as per GB/T 1995.
Features:
1. Multifunctional instrument. It can determine the density of crude oil and liquid petroleum products, kinematic viscosity of liquid petroleum products and viscosity index of lubricating oils.

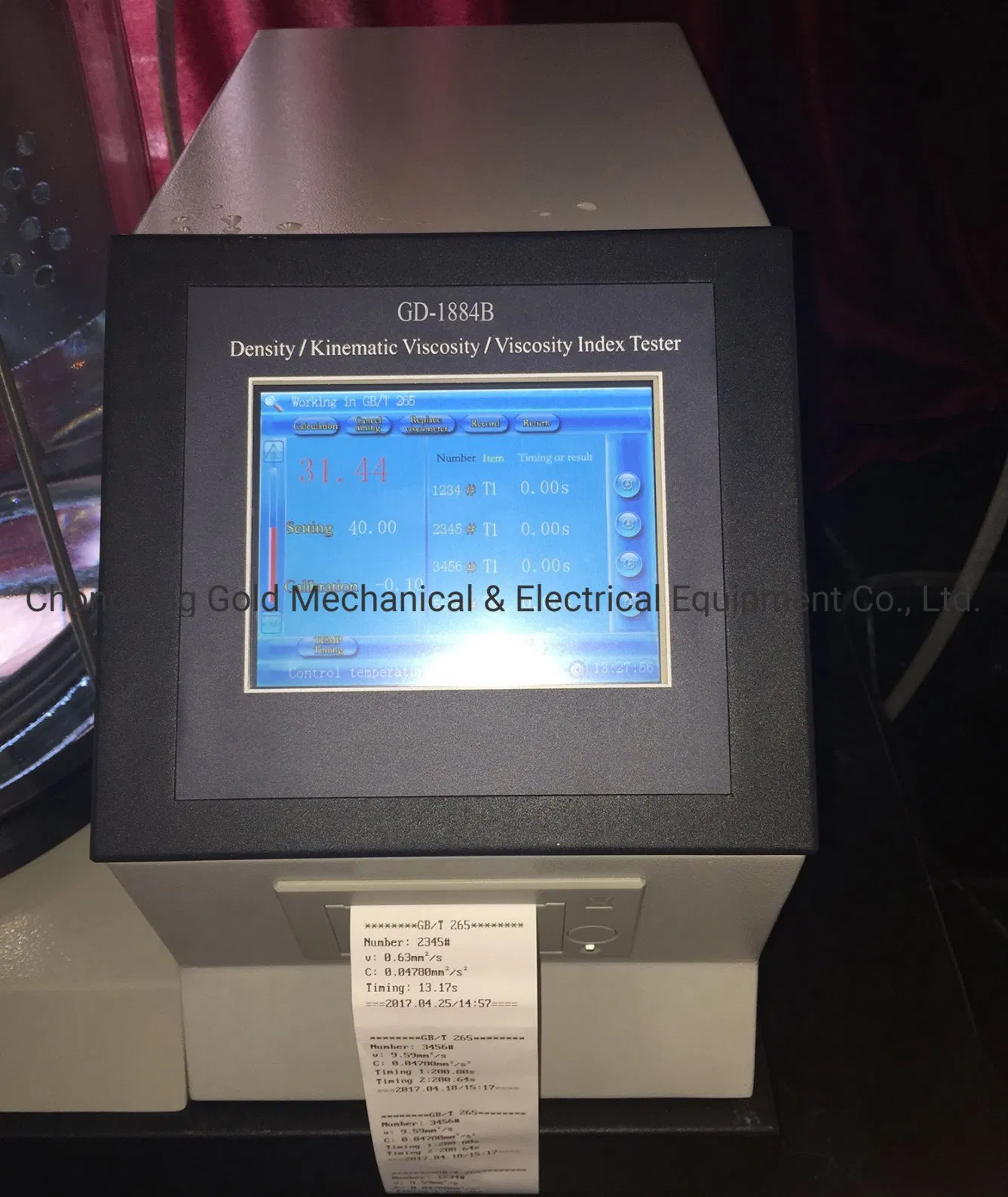

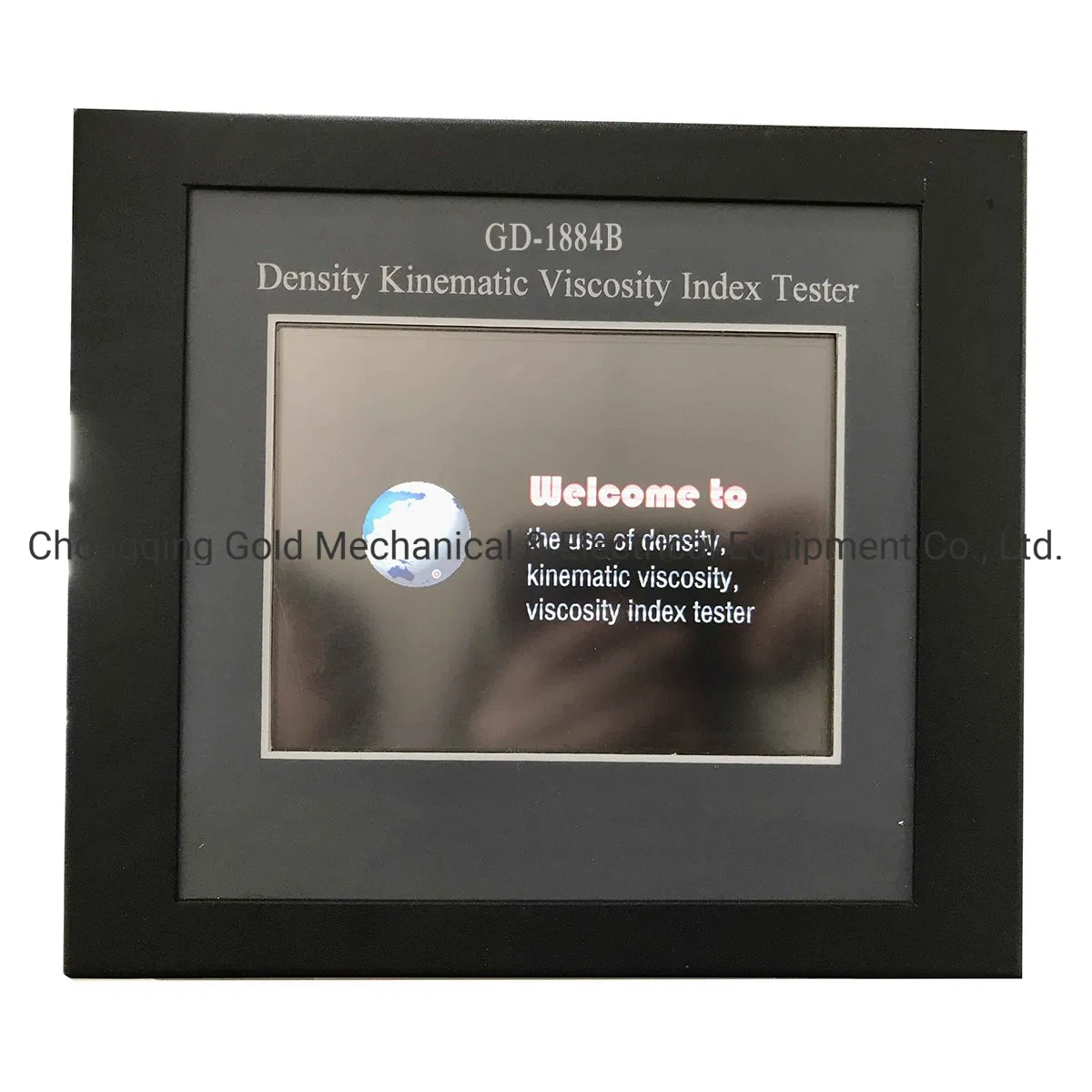

2. Microprocessor and colored LCD technology. Chinese-English bilingual menu. Light-touch screen. Easy to operate.
3. Advanced digital control and display. Automatic kinematic viscosity determination. The density test uses standard GB/T 1884.
4. It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
5. New-type temperature sensor. The temperature resolution is 0.01ºC. Temperature control precision is ±0.05ºC. 6. It can save 99 coefficients of capillary viscometer.
Specifications:
1. Capacity of bath: Ф300mm×340mm
2. Temperature range: Ambient to 100ºC
3. Resolution: 0.01ºC
4. Temperature precision: ±0.05ºC
5. Timing precision: ±0.1s
6. Display: 5.6 inch colored LCD
7. Sample amount: 4 samples
8. Power supply: AC(220±10%)V, 50Hz±1Hz
9. Maximum power consumption: 1500W
10. Working environment: Ambient temp.:(15~35)ºC, RH<85%
11. Dimension: 615mm×500mm×610mm
12. Net weight: 26.5kg
Welcome to visit us!
Contact us!
Introduction:
This instrument is designed and made as per national standard of People's Republic of China GB/T 1884-ASTM D1298, GB/T 265-ASTM D445 and GB/T 1995-ASTM D2270. It can determine the density(liquid petroleum products) as per GB/T 1884, the kinematic viscosity(Newtonian liquids) as per GB/T 265 and viscosity index(Lubricating oils) as per GB/T 1995.
Features:
1. Multifunctional instrument. It can determine the density of crude oil and liquid petroleum products, kinematic viscosity of liquid petroleum products and viscosity index of lubricating oils.
2. Microprocessor and colored LCD technology. Chinese-English bilingual menu. Light-touch screen. Easy to operate.
3. Advanced digital control and display. Automatic kinematic viscosity determination. The density test uses standard GB/T 1884.
4. It can test 4 samples at a time. Two for kinematic viscosity test and another two for density test. Or 4 kinematic viscosity tests. The parameters such as temperature, time, coefficient of capillary viscometer tube and density value can be inputted in or displayed on the light-touch screen.
5. New-type temperature sensor. The temperature resolution is 0.01ºC. Temperature control precision is ±0.05ºC. 6. It can save 99 coefficients of capillary viscometer.
Specifications:
1. Capacity of bath: Ф300mm×340mm
2. Temperature range: Ambient to 100ºC
3. Resolution: 0.01ºC
4. Temperature precision: ±0.05ºC
5. Timing precision: ±0.1s
6. Display: 5.6 inch colored LCD
7. Sample amount: 4 samples
8. Power supply: AC(220±10%)V, 50Hz±1Hz
9. Maximum power consumption: 1500W
10. Working environment: Ambient temp.:(15~35)ºC, RH<85%
11. Dimension: 615mm×500mm×610mm
12. Net weight: 26.5kg
