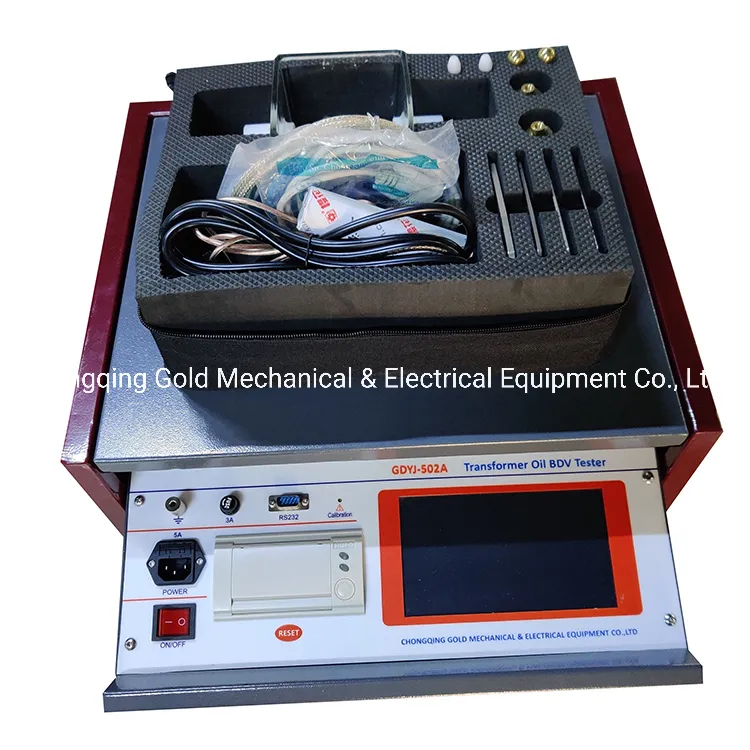

Newly Upgrade 80kv Insulating Oil Dielectric Withstand Voltage Tester Oil Bdv Tester IEC60156
Newly Upgrade 80KV Insulating Oil Dielectric Withstand Voltage Tester Oil BDV TesterIntroduction: Newly Upgrade 80KV Insulating Oil Dielectric Withstand Voltage Tester Oil BDV Tester is developed according to IEC156 In......
Send Inquiry
Product Description
Introduction:
Newly Upgrade 80KV Insulating Oil Dielectric Withstand Voltage Tester Oil BDV Tester is developed according to IEC156 Insulating Oil Dielectric Strength Testing Method;
The oil test vessel with temperature measurement unit, so it can detect oil temperature.
With 8 Kinds of test mode as optional: IEC156, IS6792, BS5874, ASTM D1816 , ASTM D877, Proof test, 5 minutes standard test, Manual test;
Newly Upgrade 80KV Insulating Oil Dielectric Withstand Voltage Tester Oil BDV Tester has large LCD display, all the selection can be done by touch panel with color LCD;
It also with micro-printer and can store 100 groups data, test data can also be unload to PC and output word report automatically;
It is multi-functional, stable, and easy for operation
Specifications:
1 | Output voltage | AC 0V~80KV |
2 | Rate of voltage rise | 0.5kv/s± 5%, 2kv/s± 5%, 3kv/s± 5%, 5kv/s± 5% |
3 | Max. test times | 9 |
4 | Stir time | 0~999s |
5 | Wait time | 0~999s |
6 | Measurement accuracy | ±(1% of full scale + 2 digits) |
7 | Resolution | 0.1KV |
8 | Temperature measurement range | 0°C to 70°C, or better |
9 | Temperature resolution | 1°C, or better |
10 | Data storage | 100 groups |
11 | Weight | 38kg |
12 | Size | 550 mm*500mm*580mm |
13 | Power supply | AC220V, 50Hz |
14 | Working environment | Room temperature to 45°C, humidity<85% |

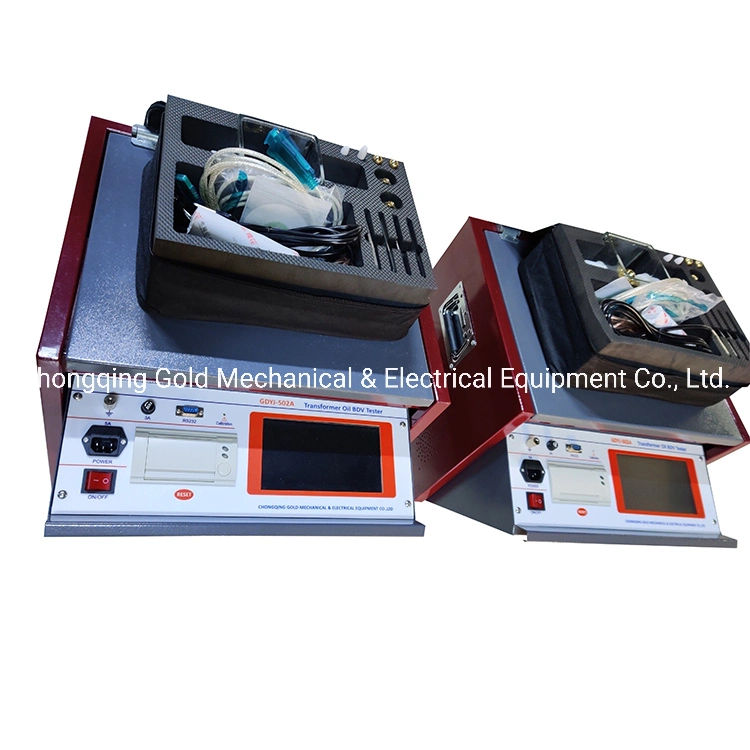

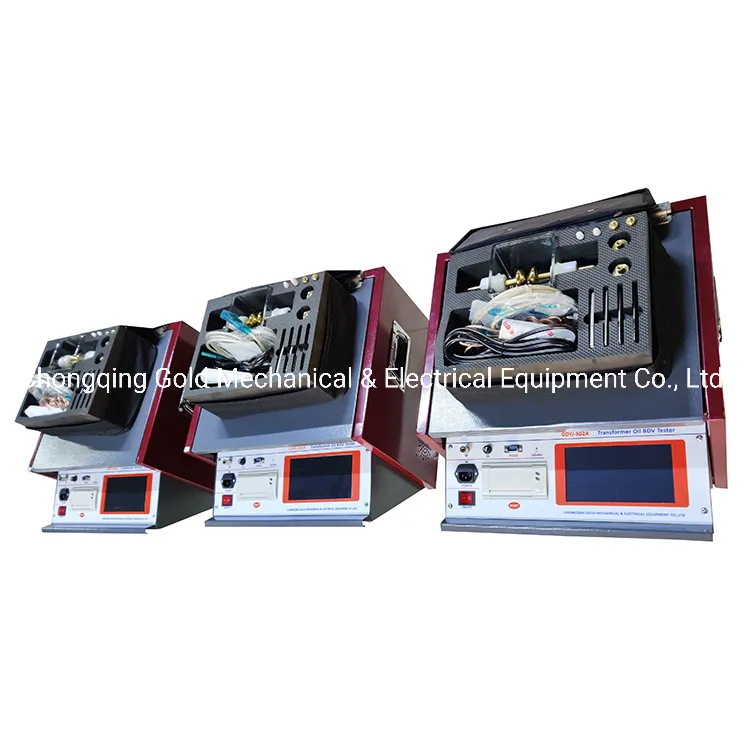

Three Sets GDYJ-502A 80KV Transformer Oil BDV Tester Sold to Philippines
