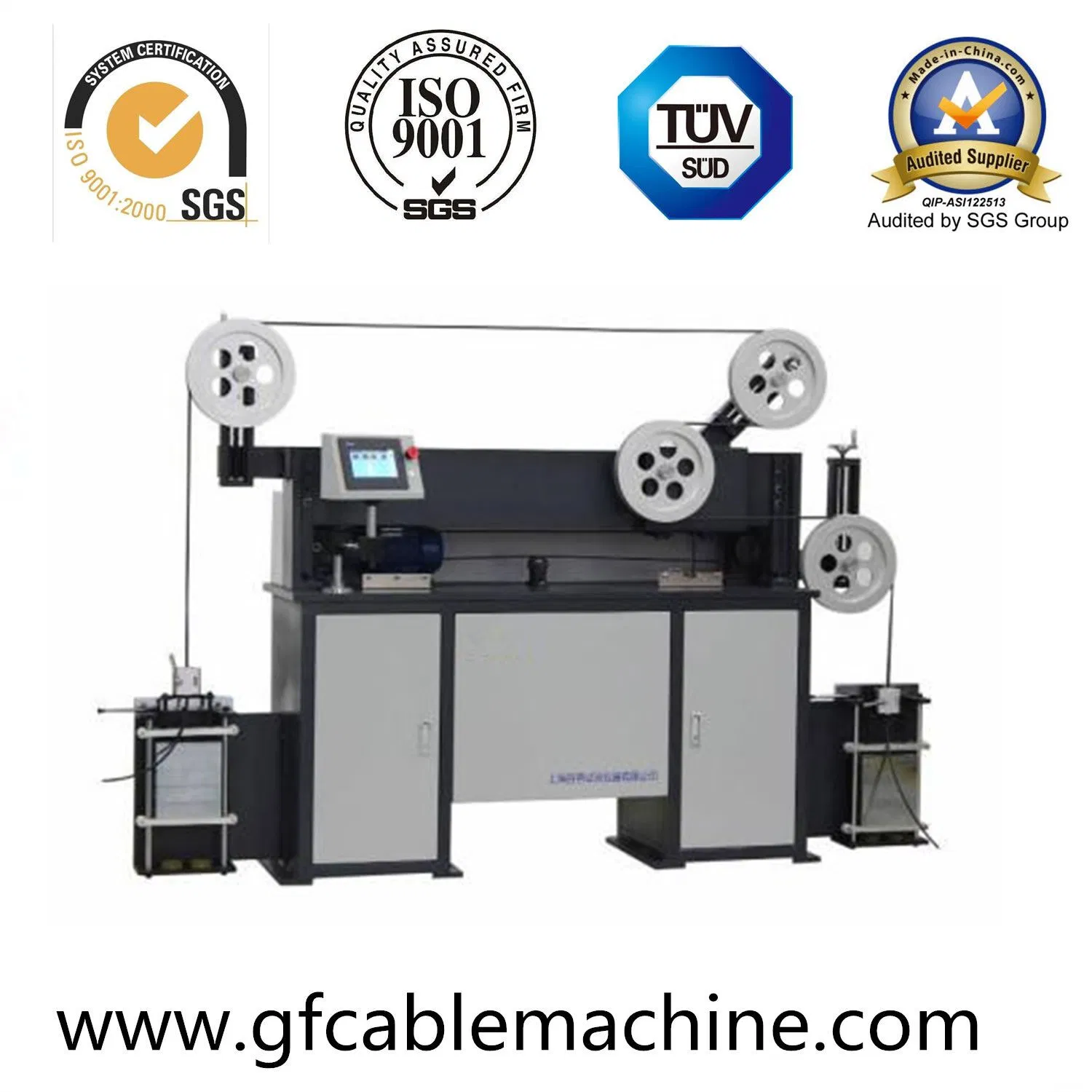

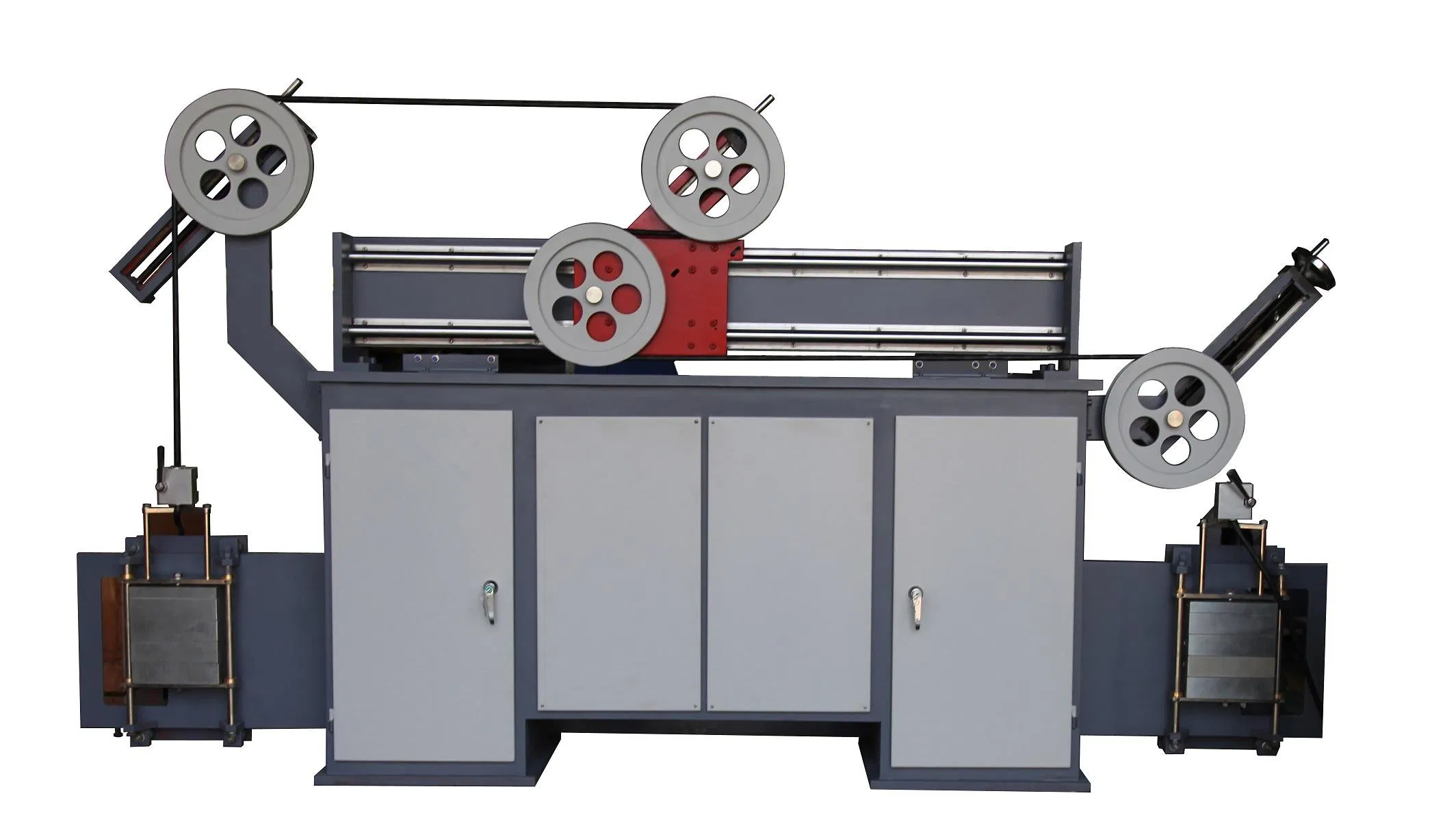

Optical Cable Flexing Testing Machine

Product Description

Main Technical Specifications:

1.Flexing travel: 1000mm
2.Flexing wheel travelling speed: (100~350) mm/s, set arbitrarily.
3.Flexing counts: 1~9999, set arbitrarily.
4.Hammer bracket weight: 5kg×2.
5.Hammer weight: two sets of weight hammer, each comprise: 5kg×4,2.5kg×1, 1.0kg×1.
6.Diameter of guiding wheel: 200mm, 250mm, 300mm
7.Tests can begin with stand-only or remotely controlled by computer. Automatically records flexing counts and automatic stop after the test finished.
8.Equipment weight: 900kg

Installation requirements

1.Power supply: single phase, AC220V±10%, 50~60Hz, 0.8kW.
2.Install onto a stable base and room of more than 1 m around.
3.Ambient temperature: 25ºC±10ºC, humidity: ≤80% non-condensing.
4.No vibrating or corrosive media indoor.

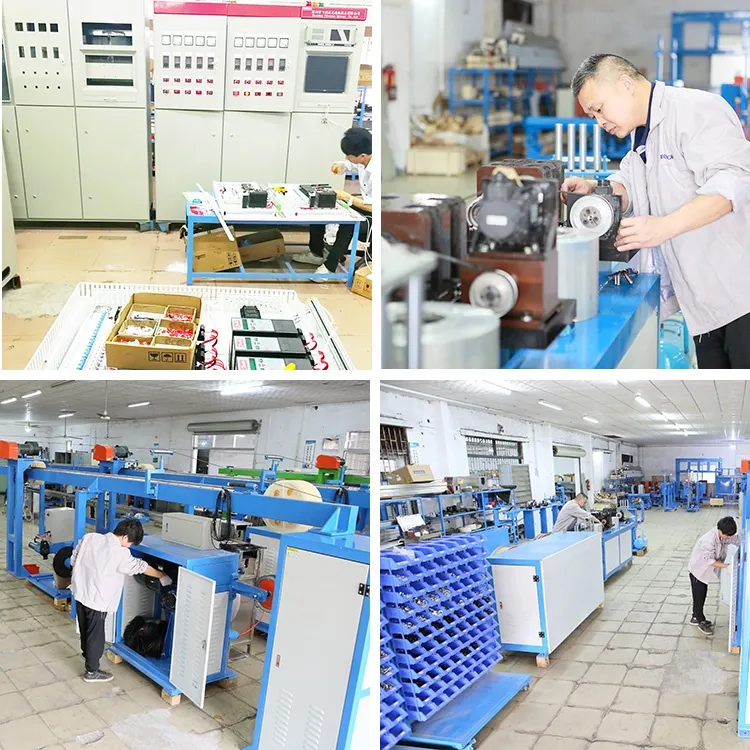

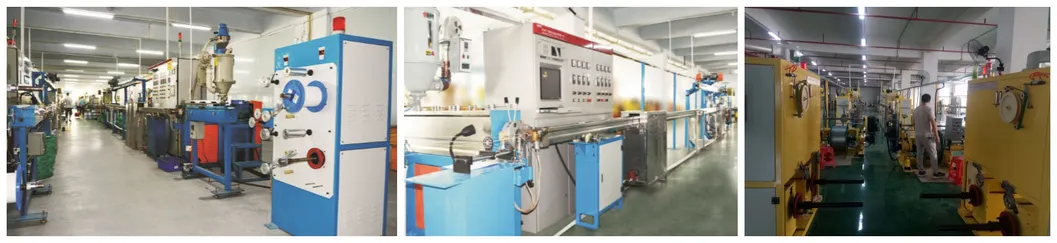

Production Process:

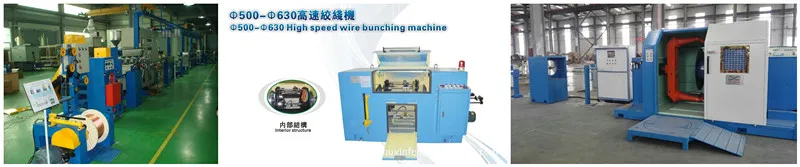

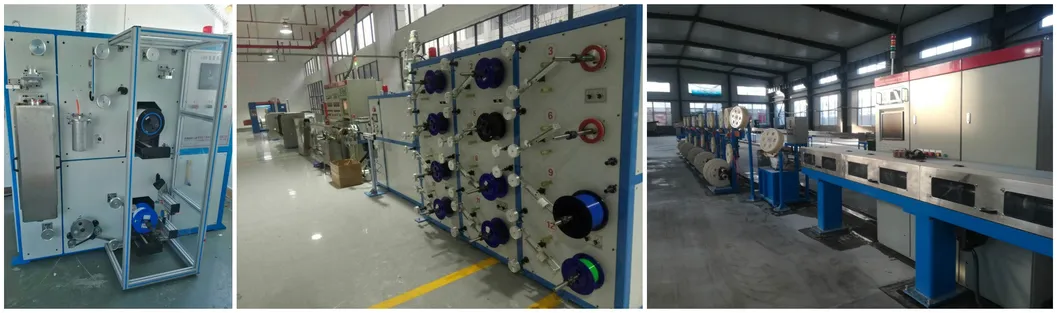

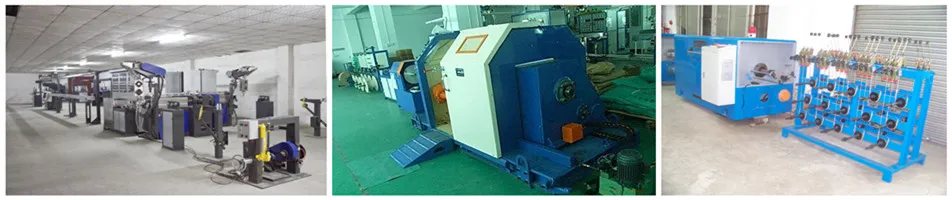

Our main products:
