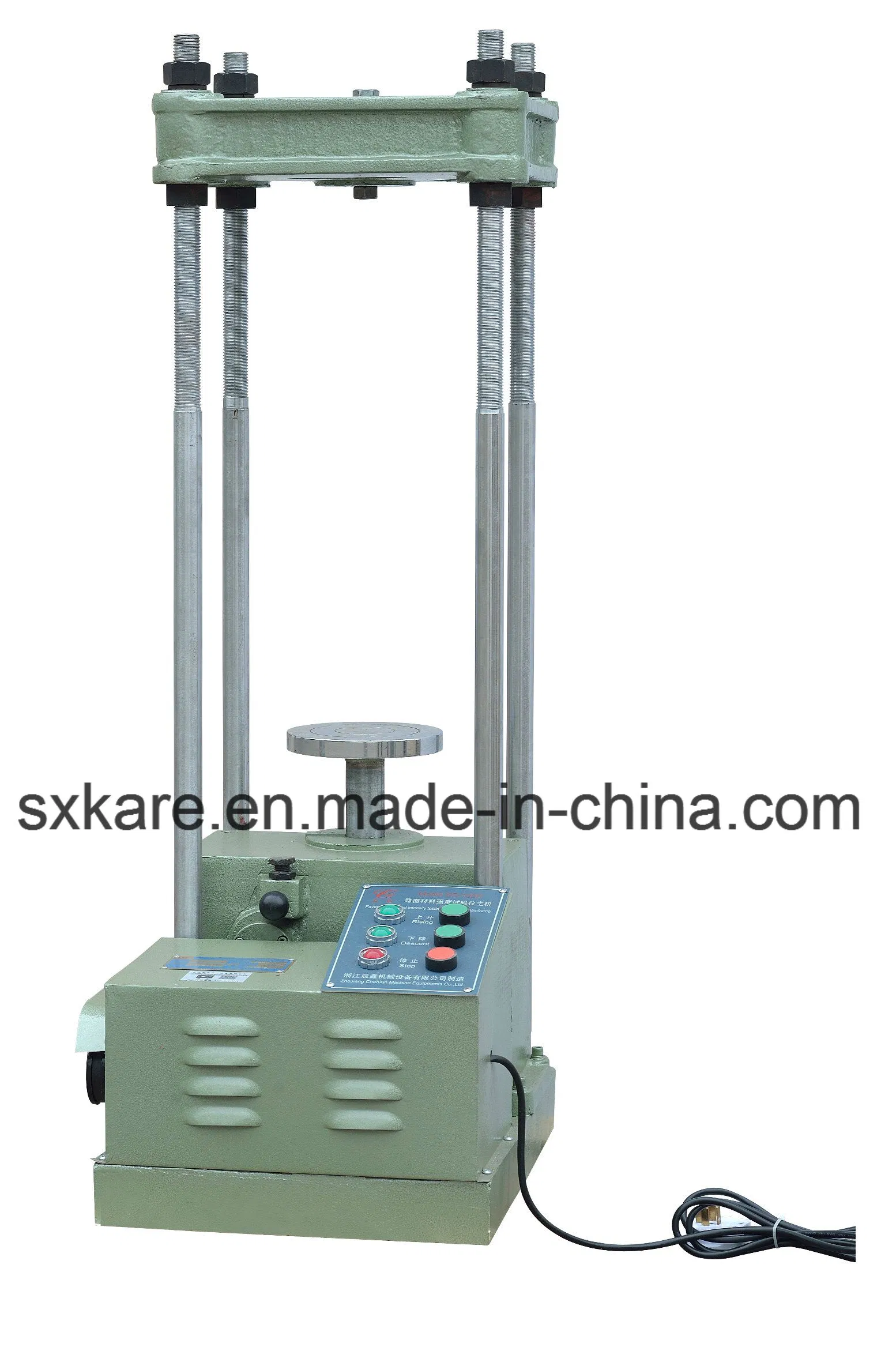

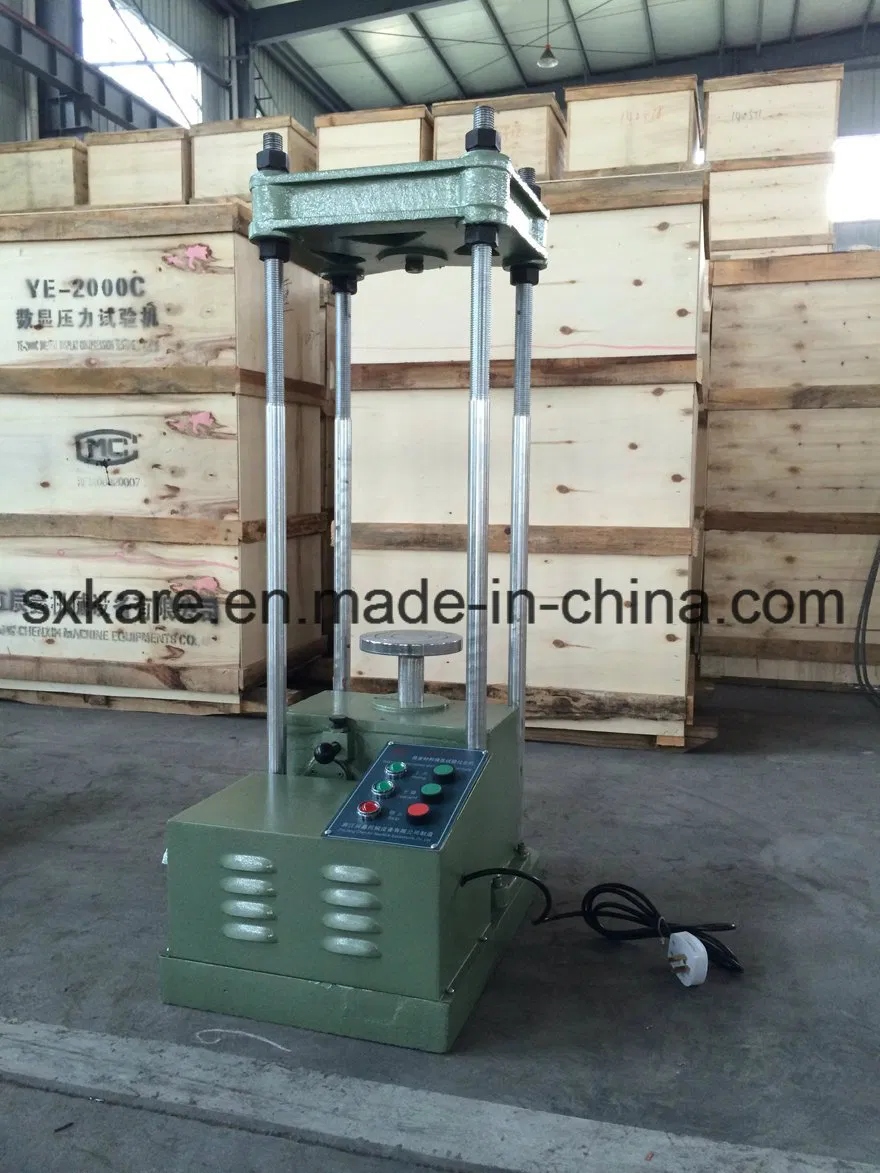

Pavement Material Intensity Testing Equipment, Cbr Testing Machine (SG-100D)

1. Usage
"SG-100D Pavement Material Intensity Testing Equipment (CBR testing machine)" is a multifunction testing instrument for road bed and pavement material. It can do many tests with accessories, such as unconfined compressive strength, indirect anti-bonding strength for all kinds of binder stabilized soil sample, bearing-ratio test for soil and pavement material (diametral compression test), thermal stability of bitumen combined material and anti-plastic flow performance --stability and flow value. It also can be used for other tests need vertical load.

2. Characteristic
"SG-100D Pavement Material Intensity Testing Equipment (CBR testing machine)" is completely confirmed with the technical requests of JTJ051-93 road test regulations and JTJ058-94 road construction aggregate test regulation published by PRC Ministry of Transport. It is designed with good compact rigidity. It adopts the mechanize transmission, durable and reliable. Button operating could be both mechanize and manual. It is with adjustable terminal disc could self level when rising and descending. It has the stop block. There is a protective cover out of the turn-screw to avoid pulling out and stuffing.

3. Structure
3.1. Main frame

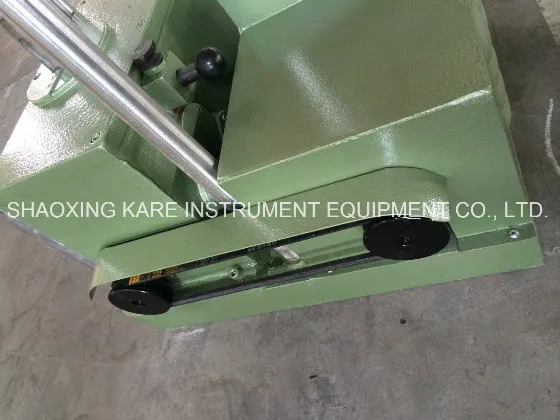

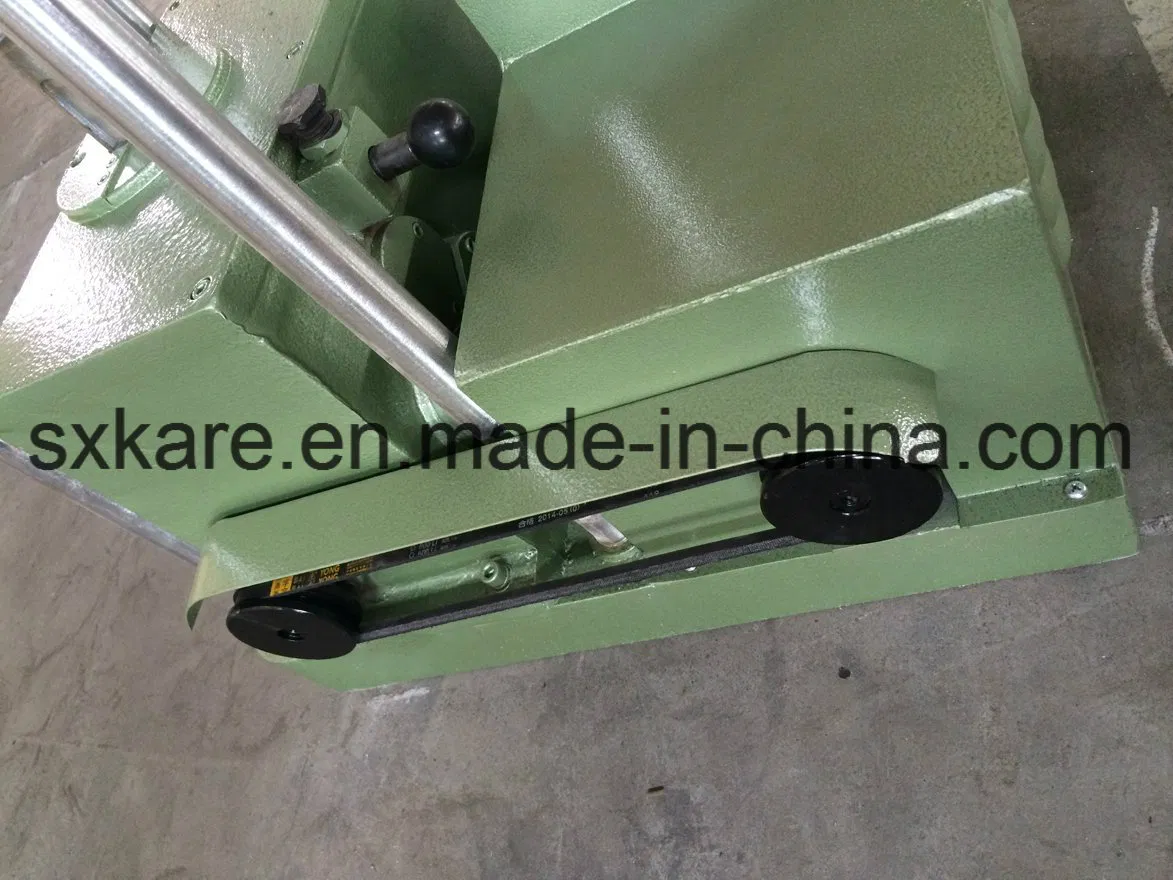

3.2. Transmission box
3.3. Upright post
3.4. Top beam
3.5. Motor

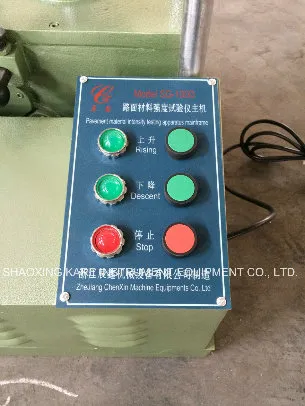

3.6. Button control switch
3.7. Gear operation handle
3.8. Manual handle
3.9. Stop block
