Petroleum Product Digital Specific Gravity Hydrometer ASTM D1298

Product Description

Petroleum product Digital Specific Gravity Hydrometer ASTM D1298

Density is an important indicator for automotive, aviation and marine fuels. It can affects storage, handling and combustion.
Our specific gravity hydrometer is designed and made as per ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method.

1.Summary

Specific Gravity Hydrometer is designed and made as per ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum.

2.Main technical features

1. This Specific Gravity Hydrometer is a kind of all-in-one machine. The control box adopts humanized design. The control switch adopts light-touch mode. Its structure is simple and compact. Easy to operate.

2. It adopts intelligent LCD temperature controller. The control rate is fast and overstrike is small. The temperature control can reach ±0.2ºC.

3. It equips a hard glass vessel and electric stirrer. The temperature in vessel is uniform. Easy to observe the sample.

3.Main technical specifications

1	Power supply	AC(220±10%)V,50Hz
2	Dimension of constant temperature bath	Ф300mm×340mm
3	Capacity of cylinder	500ml
4	Heating power	700W,1000W
5	Temperature controller	Range: Ambient to 100ºC
		Accuracy: ±0.2ºC
		Sensor: Pt100
6	Thermometer	Mercury-in-glass thermometer. Scale division is 0.2ºC
7	Dimension	560mm×380mm×580mm

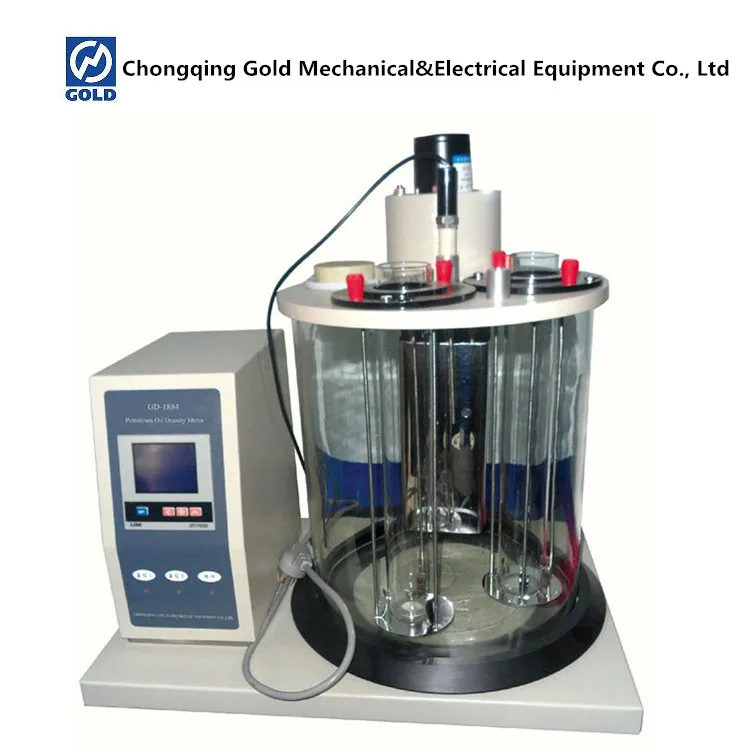

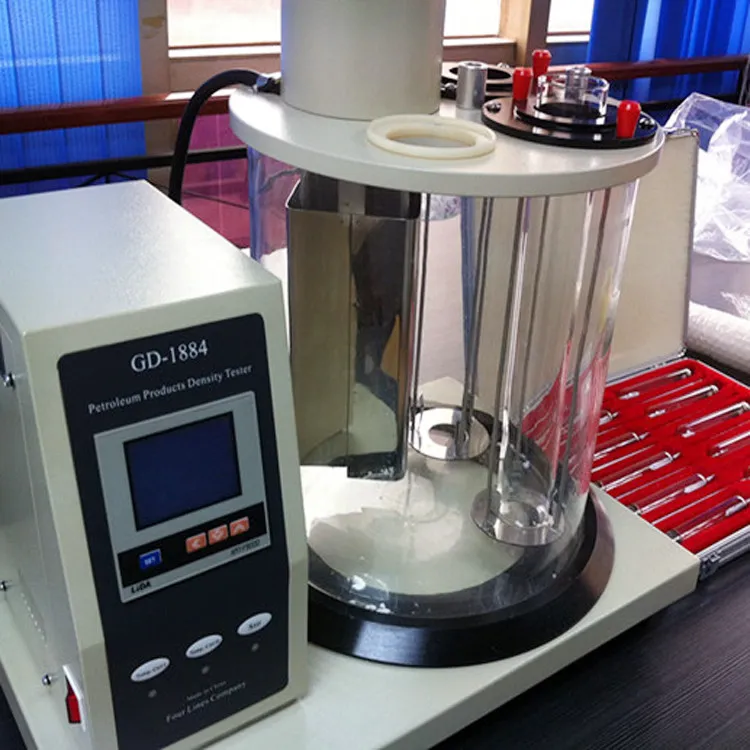

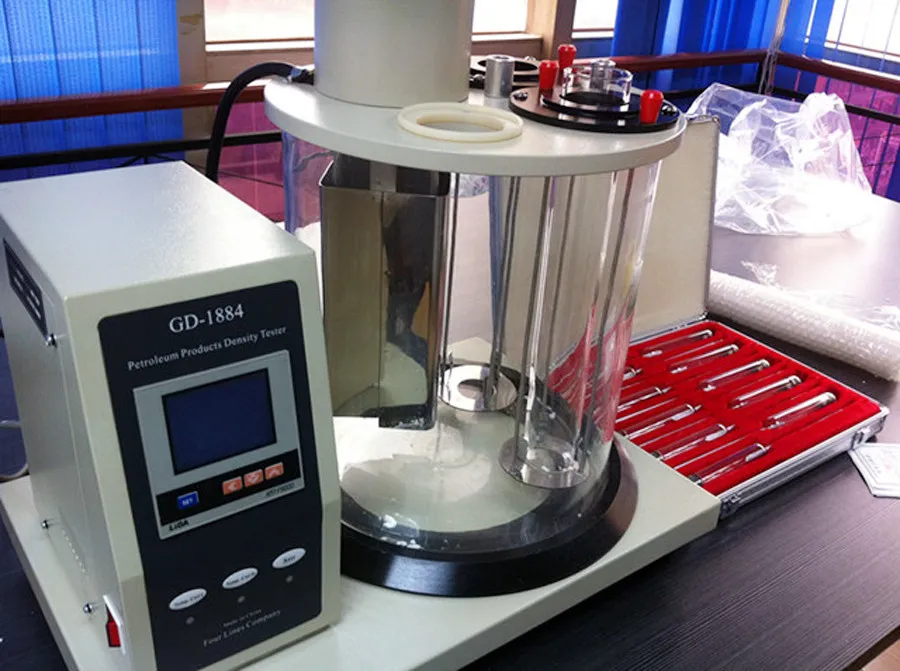

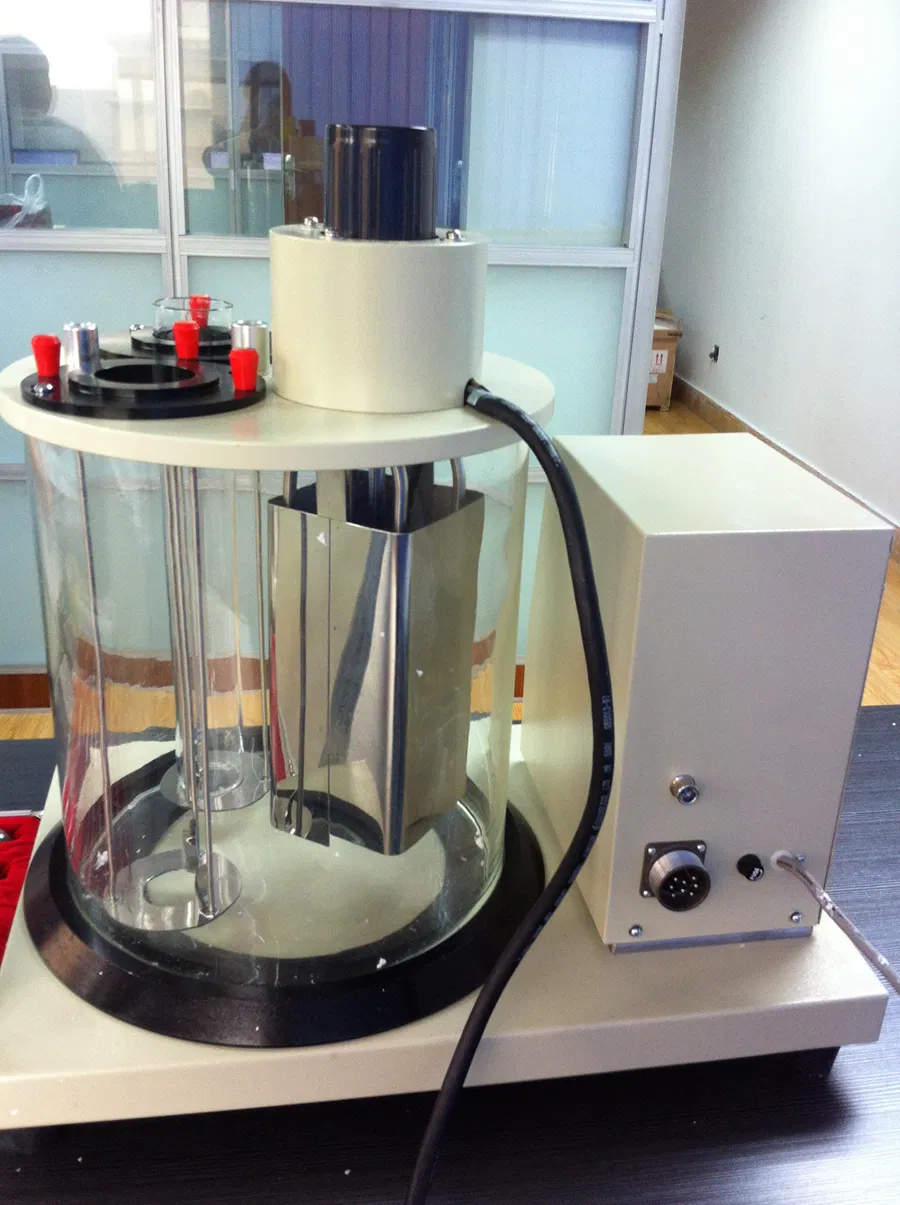

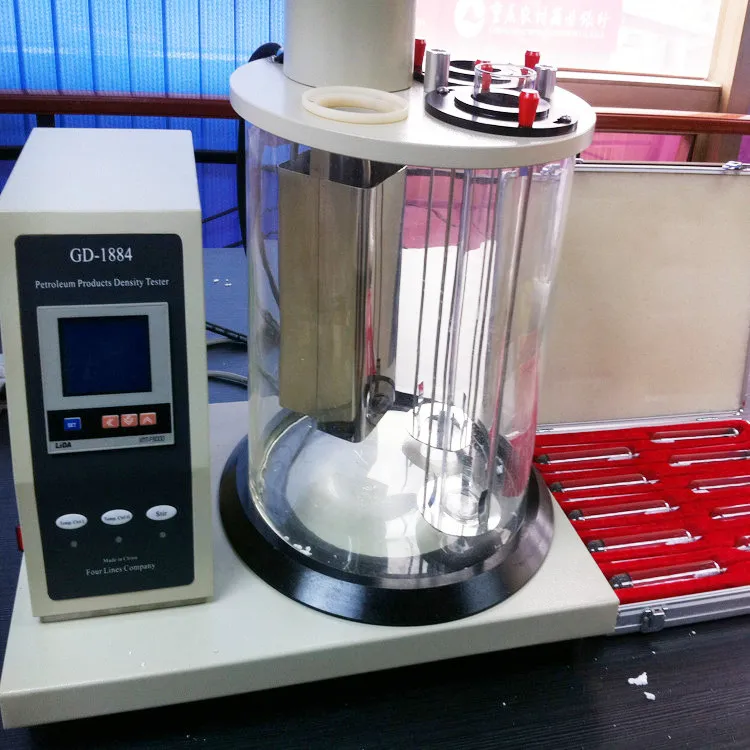

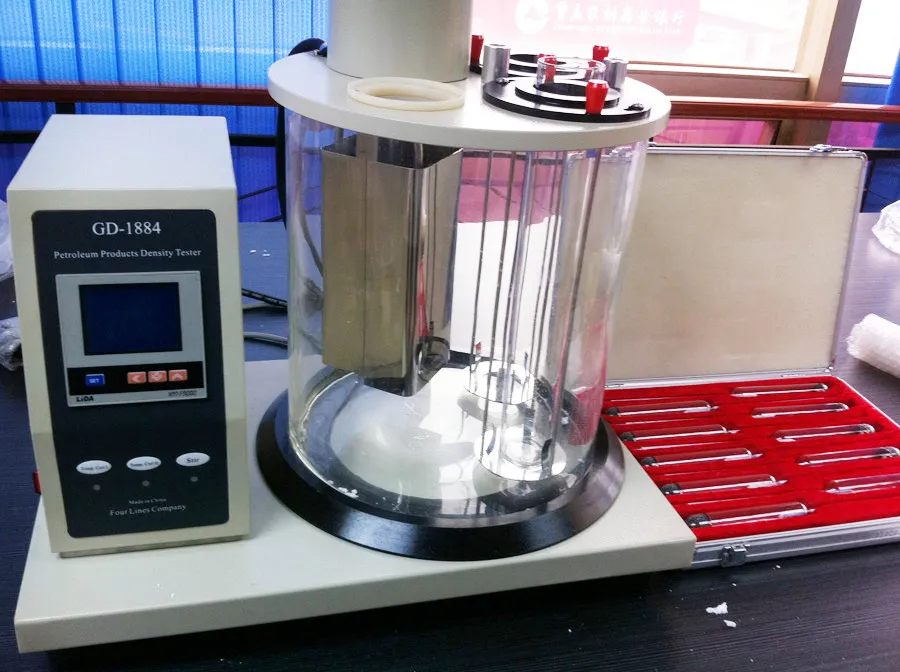

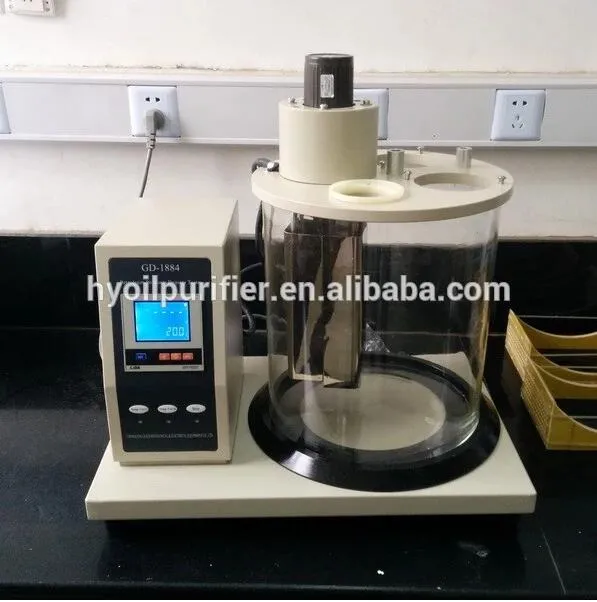

4.Detail Images:
Petroleum Product Digital Specific Gravity Hydrometer ASTM D1298

IV.Petroleum & Oil Analyzer Petroleum Testing Instruments
Open Cup Flash Point Tester
Flash & Fire Point Tester for Petroleum Products
Closed Cup Flash Point Tester
Engler Viscometer
Water Content Tester
Rotational Viscometer
Kinematics Viscometer
Distillation Tester
Density Tester
Rust and Corrosion Tester
Sulphur Content Tester
Acid and Alkali Tester
Dropping Point Tester
Demulsibility Characteristics Tester
Ash Content Tester
Aniline Point Tester
Low Temperature Tester(Including solidifying point, cold filter plugging point, pour point, cloud point, and freezing point)
Residue Carbon Tester
Existent Gum Tester
Vapor Pressure Tester
Bomb Calorimeter
OCTANE & CETANE ANALYZER
Lubricating Oils Foaming Characteristics Tester
Petroleum Products Color Tester
Petroleum Wax Oil Content Tester
Automatic Interfacial Tension Tester
Liquid Petroleum Products Hydrocarbon Tester
Lubricating Oil Air Release Value Tester
Petroleum Products and additives Mechanical impurities tester

V.FAQ
1. What's the payment method?
Payment can be done by cash T/T, L/C, Western Union, Alibaba Trade Assurance,etc.

2. How long is the delivery period?
Generally it takes about 10 working days for producing specific gravity hydrometer and then the delivery will be done timely.

3.What's the package made of?
The package is made of international export standard wooden case.

4.What's the delivery method?
By train, by air, by sea, by truck, by express, etc.

5. How long is the guarantee period?
The guarantee period is 1 years.

6.What services can you provide?
Online support through email, telephone, Whatsapp or other communication method; technical video support, etc.
