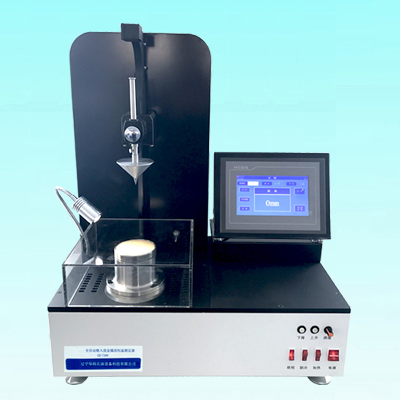

Petroleum Products Automatic Cone and Needle Penetration

Item: Petroleum products Automatic Cone and Needle Penetration
Model: PT-HK-269E

Overview
Automatic Cone and Needle Penetration conforms to ASTM D5, D217, D937,D1321, D1403, D2884 and
D4950, IP49,50, 179, 310, DIN51579, 51580, 51804, FTM791-311, 791-312, 791-313,AOCS Cc16-60, AACC58-14, NFT60-119, 60-123, 60-132, 66-004. This penetrometer is designed for ASTM penetration tests on petroleum products and for consistency tests on a wide range of food products, cosmetics, pastes and other solid to semi-solid products. Precision machined and assembled to exacting specifications, and ruggedly constructed to insure long service life in both laboratory and field applications. Features a full penetration range of 0-62.0mm with 1⁄10mm subdivisions (0-620 penetration scale). Accommodates cones and needles to perform all of the ASTM tests on lubricating greases, asphalts, petroleum waxes and petrolatum.

Features:
1.Touch screen operation system, selected to connect to LIMS system
2.LED lighting
3.Japan imported laser sensor to measure the distance accurately, precision is ±0.01mm
4.Chamber is able to contain 8 groups 1/4 and 4 groups 1/2 worker
5.Convenient to change the cone and needle
6.Built-in semiconductor refrigeration, it can keep the temperature at 25±0.2ºC automatically
7.Electrode automatic lifting, through the speed regulation to achieve the precision adjustment
8.5s lock the result and display through the touchscreen automatically
9.Equipped with field calibrator to guarantee the accurate distance

Technical Parameters:
Rated voltage: AC 220V±10% 50Hz
Constant temperature point: 25±0.2ºC
Measuring accuracy: ±0.01mm
Timing 5s±0.1s
Cooling method: semiconductor refrigeration
Lifting method: Adjustable stepping motor
Measuring range:0~60mm
Ambient requirement: Temperature:5~40ºC;Humidity≤85%
Net dimension: 500*280*590mm, 34kg
