Product Description

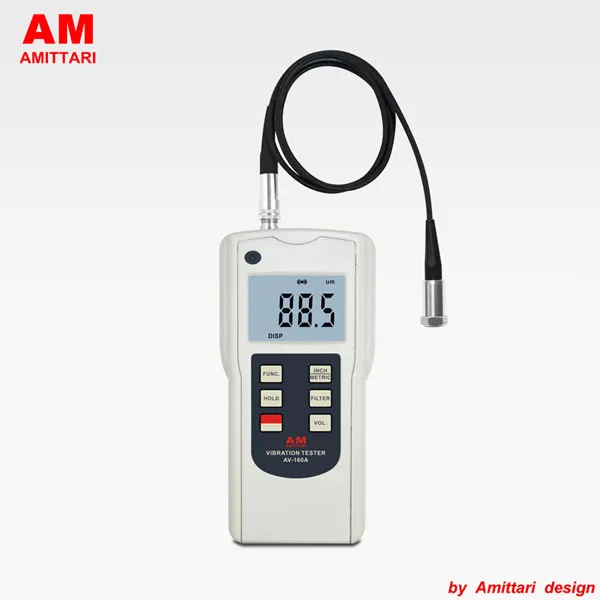

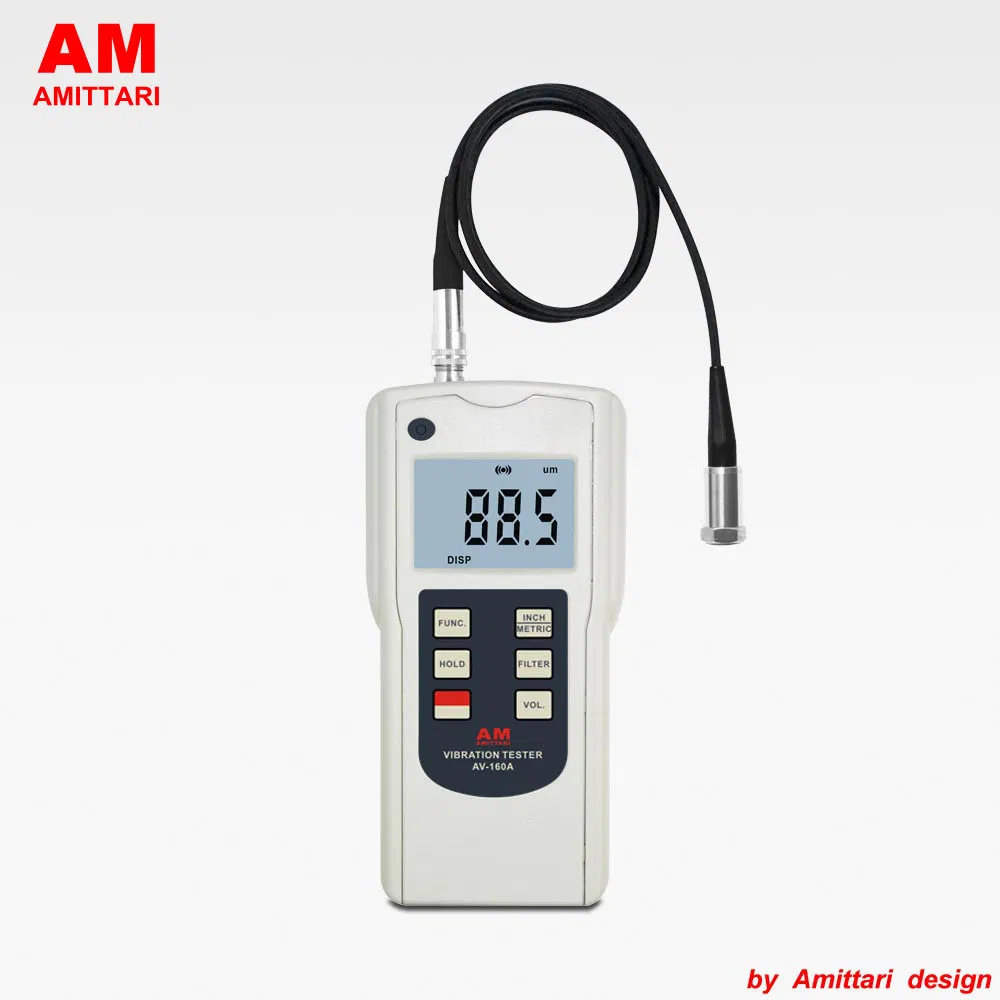

Portable Vibration Tester AV-160A
Product Description
The Vibration Tester Applied to the periodic motion measurements to detect moving mechanical imbalances and misaligned. Designed for on-site measuring various mechanical vibration, for quality control, running time and prior equipment maintenance data. Selection of high-performance accelerometers to achieve accurate, replicable measurement It has a bearing condition measurement function.
Product Feature
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* AC output socket for headphones and recording.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output with connection PC.
* Provide Bluetooth data outputchoice.
Product Parameters
| Transducer | Piezoelectric accelerometer |
| Accuracy | ±5%+2 digits |
| Measurement Range | Displacement : 0.001-4.000 mm equivalent peak-peak / 0.04-160.0 mil |
| Velocity : 0.1-400.0 mm/s true RMS / 0.004-16.00 inch/s | |
| Acceleration : 0.1-400.0 m/s² equivalent peak / 0.3-1312 ft/s² / 0.0-40g | |
| Frequency Range | Displacement : 10Hz. ~ 1kHz. |
| Velocity :10Hz. ~1kHz. | |
Acceleration: 10Hz. ~ 10kHz. | |
| Operating Conditions | Temperature : 0-50 ºC |
| Humidity : below 95% RH | |
| Analogue Output | AC output 0~2.0V peak full scale (load resistance: above 10k) |
| Power Supply | 4x1.5vAAA (UM-4) Battery |
| Size | 140x70x30mm |
| Weight | 130g (Not including Batteries) |

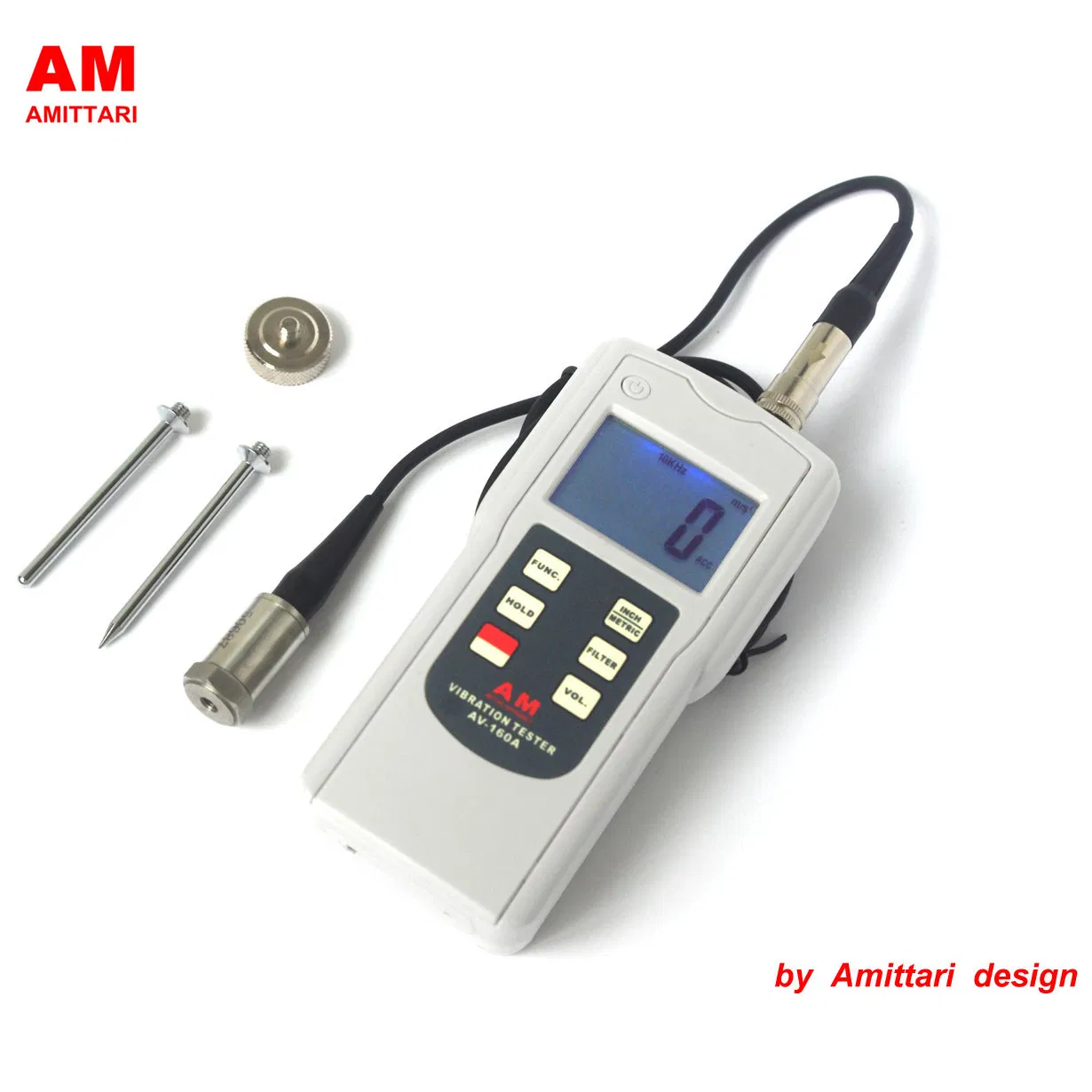

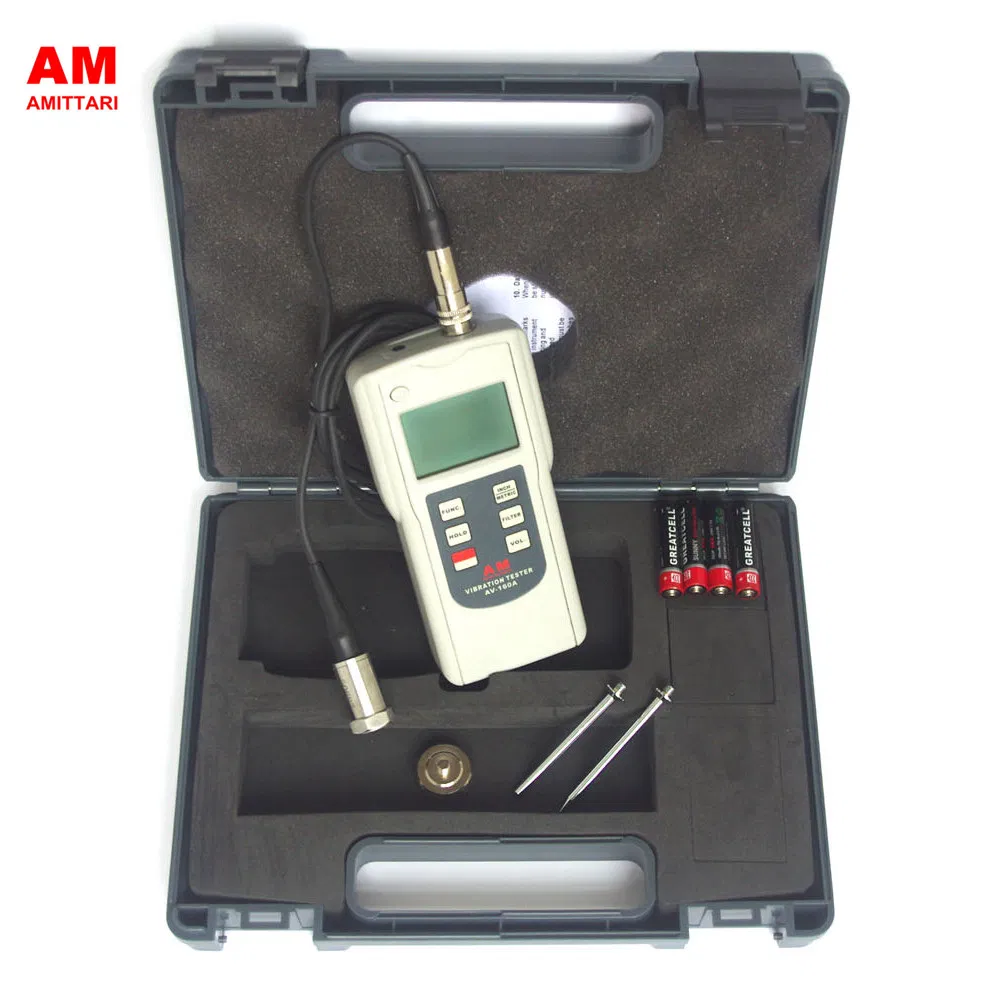

Product Accessories
Standard Accessories | Main Unit |
Magnetic suction seat | |
| Probe (cone) / Probe (spherical) | |
| Portable box | |
| Brochures | |
Piezoelectric sensor | |
| Carrying Case | |
| Operation Manual | |
Optional Accessories
| Headset |
USB data output | |
| Bluetooth data output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data utput function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen. Please kindly contact with the customer-service worker if you need Bluetooth data output.

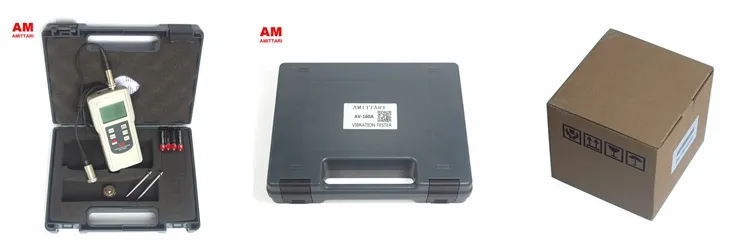

Package
