Product Description
Portable Vlf Cable High Voltage Testing Instrument AC Hipot Tester

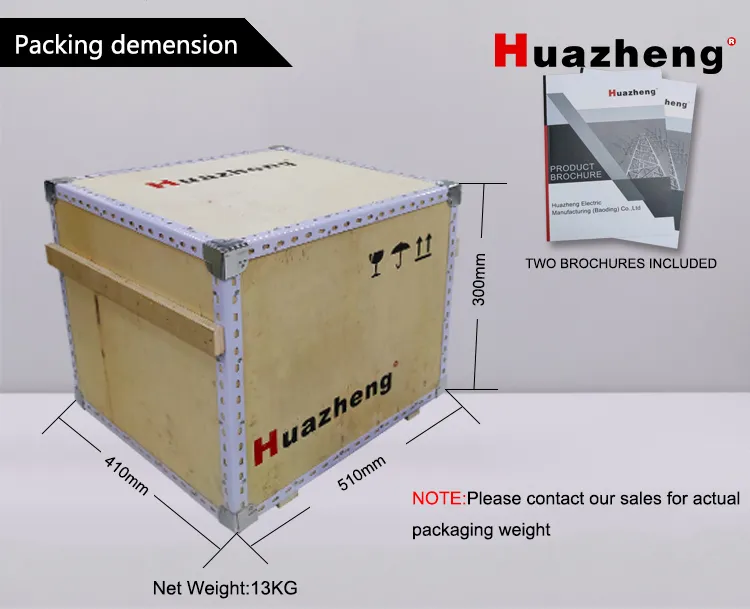

I.Packaging & Delivery

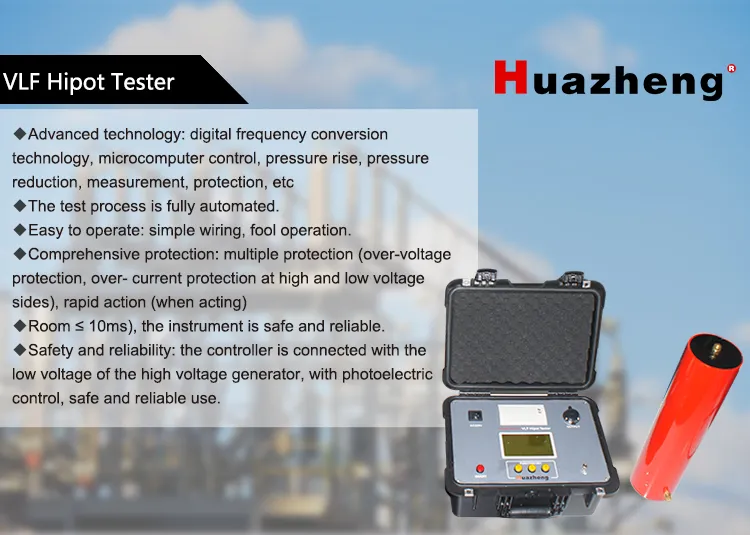

II.Features
| Packaging Details: | vlf ac hipot tester standard package for low frequency generator |
| Delivery Detail: | vlf ac hipot tester 7-15days after order confirmed |
II.Features
1,output rated voltage , 30kV
2,output frequency :0.1Hz,0.05Hz,0.02Hz.
3,loading capability :
0.1 Hz maximum 1.1µF
0.05 Hz maximum 2.2µF
0.02 Hz maximum 5.5µF
4,accuracy :± (3% of full scale +0.5 KV)
5,voltage waveform distortion :≤5%
6,emperature : -10ºC-+40ºC;humidity :≤85%RH
7,power supply :AC50 Hz,220V ±5%
III.Parameter
| Model | Rated Voltages | Load capacity | Fuse | Weight | Useful |
| VLF- 30/1.1 | 30KV (peak ) | 0.1Hz,≤1.1µF | 10A | Control :6Kg Body Boost :30Kg | 10KVCables, Generator |
| 0.05Hz,≤2.2µF | |||||
| 0.02Hz,≤5.5µF |
Single relatively power capacity of different Generator
| Thermal Power | Hydropower | ||||||
| Generator capacitance (MW) | 200 | 300 | 600 | 85 | 125-150 | 300 | 400 |
| Single relatively power capacity(µF) | 0.2-0.25 | 0.18-0.26 | 0.31-0.34 | 0.69 | 1.8-1.9 | 1.7-2.5 | 2.0-2.5 |
Power capacitance of single-core XLPE insulated cable (µF/km)
| Capacity µF/Km | ||||||||||||
| Voltage (kV) | 10 | 0.15 | 0.17 | 0.18 | 0.19 | 0.21 | 0.24 | 0.26 | 0.28 | 0.32 | 0.38 | - |
| 35 | - | - | - | 0.11 | 0.12 | 0.13 | 0.14 | 0.15 | 0.16 | 0.17 | 0.19 | |
| Cross-sectional area (cm²) | 16 | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 | 270 | |

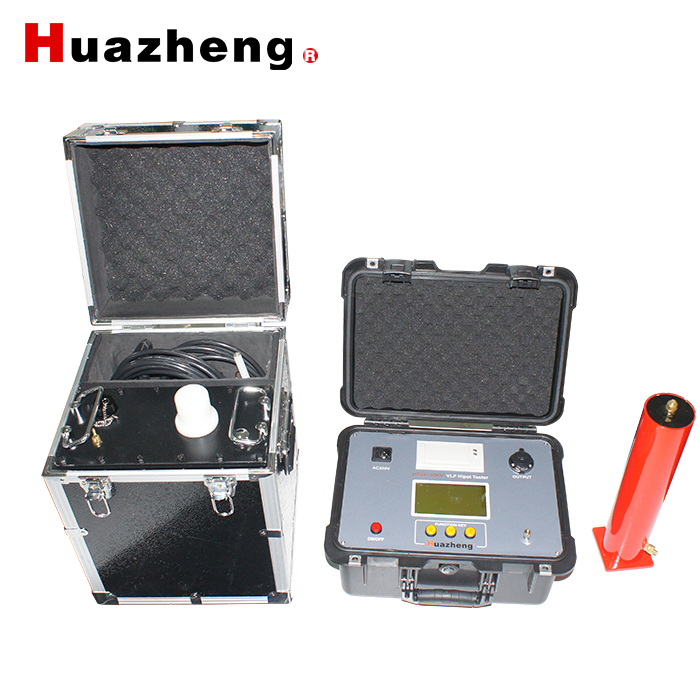

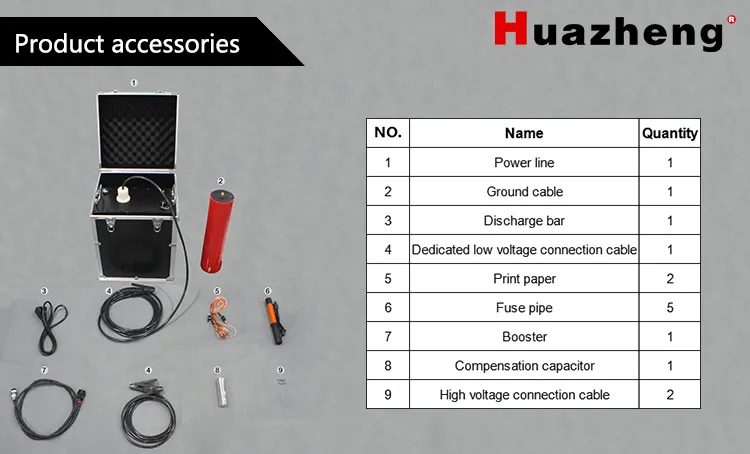

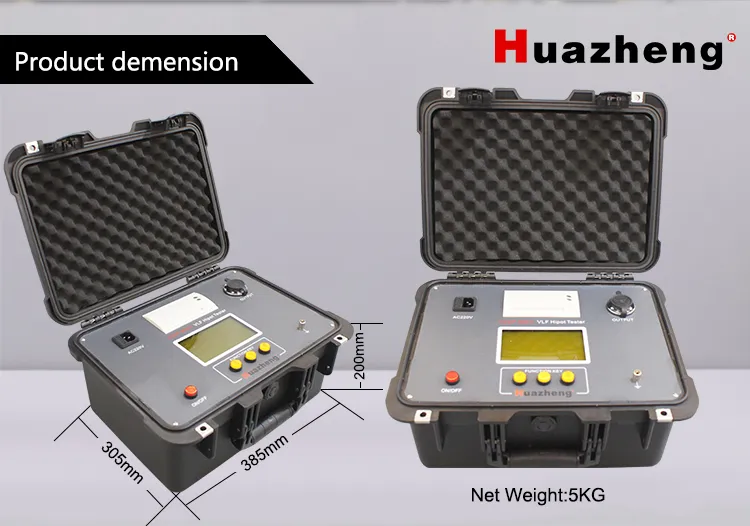

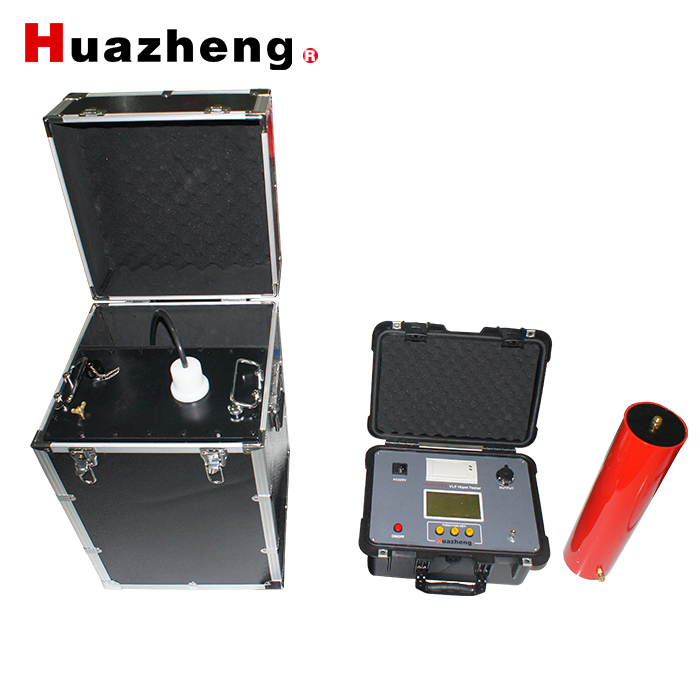

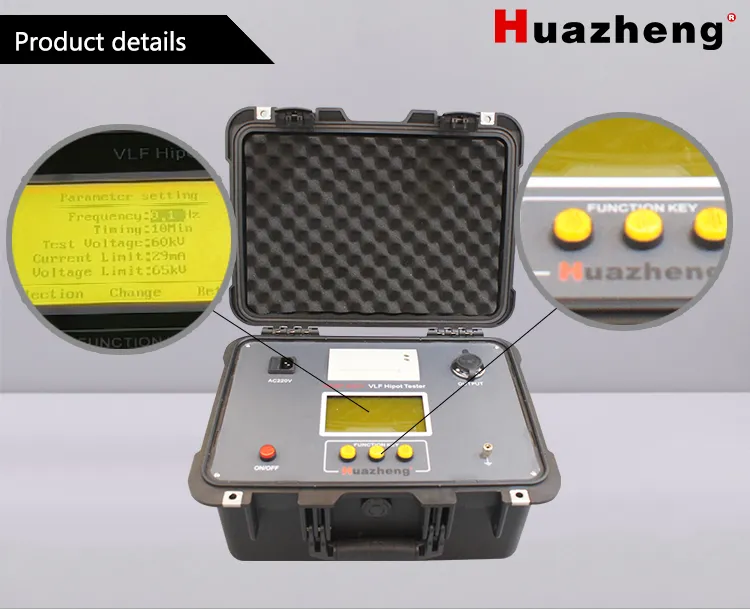

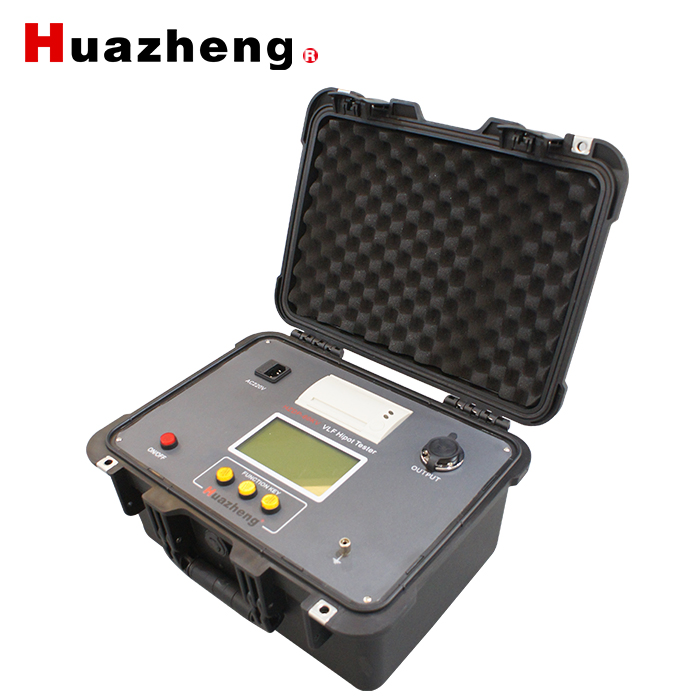

IV.Detailed Photos
V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
VI.Customer Visit
VII.Exhibition

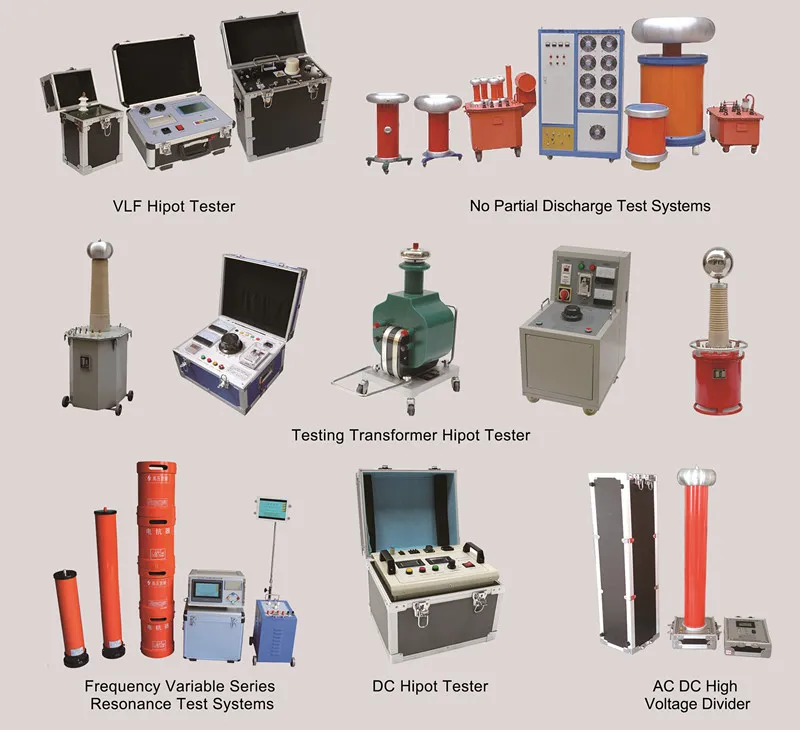

IX.Similar Recommendation
