Road Construction Lab Equipment Determine Ductility of Bitumen ASTM D133
Road Construction Lab Equipment Determine Ductility of Bitumen ASTM D133 Introduction:Bitumen Ductility test apparatus is used to Determine petroleum asphaltunder the predetermined conditions and in certain temperature, at a certain speed stretch to fracture length,called petroleum asphalt ductility......
Send Inquiry
Product Description
Road Construction Lab Equipment Determine Ductility of Bitumen ASTM D133
Introduction:

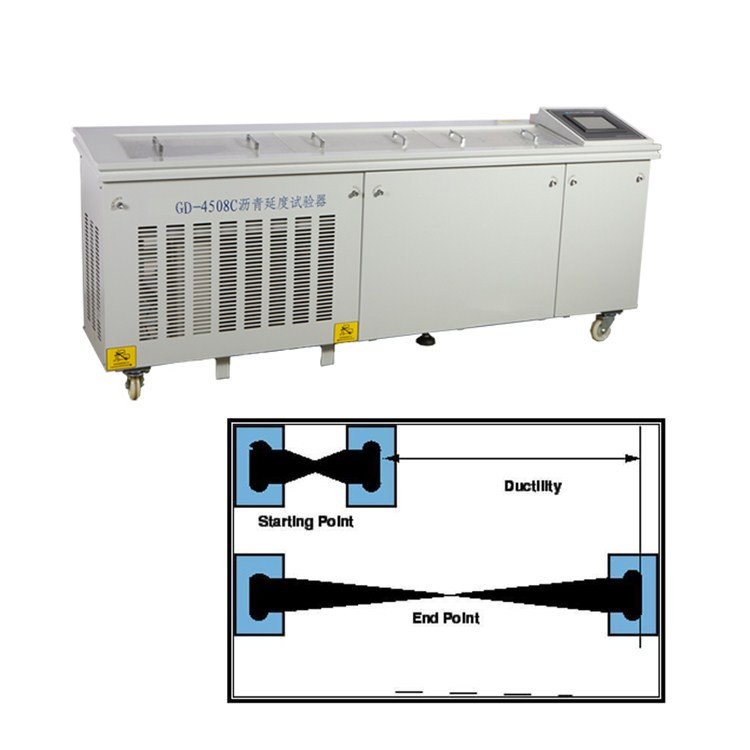

Bitumen Ductility test apparatus is used to Determine petroleum asphalt
under the predetermined conditions and in certain temperature, at a certain speed stretch to fracture length,
called petroleum asphalt ductility, expressed in cm.
Features:
1. Bitumen Ductility test apparatus adopts humanized design philosophy. There is no leading screw, lead rail or other components in the test trough. The sample can be easily installed in and the maximum measurement distance can reach 1.5m.
2. Bitumen Ductility test apparatus adopts innovative transmission design. The stretching is stable and synchronous. There is no tremble and the speed is uniform.
3. Three specimens. Suitable to the test standard for asphalt ductility.
4. The specimen can return and positioning automatically after the determination.
5. Light-touch panel. Water-proof.
Specifications:
| Product name | Gd-4508c Bitumen Ductility test apparatus |
| Power supply | AC220V(-5%~+10%),50Hz |
| Measuring range | 1.5m(±10mm) |
| Heating mode | Electrical heating |
| Heating power | 3000W |
| Bath liquid circulation | Magnet pump |
| Temperature range | 5ºC~49ºC, adjustable, Digital display, resolution 0.01ºC |
| Temperature accuracy | ±0.1ºC |
| Speed | 10 mm/min or 50mm/min. Two grades |
| Measuring accuracy | ±1mm |
| Ambient temperature | -10ºC~+35ºC |
| RH | ≤85% |
| Overall dimension | 2365mm×520mm×1000mm |
| Maximum power consumption | 4100W |
Related Products:
| Parameter | GD-4508C | GD-4508G(DUAL-PATH) |
| Auto./Manual | Semi-auto | Automatic |
| Measuring range | 1.5m±10mm | 2m |
| Temperature range | 5~50ºC | 5~50ºC |
| Speed | 10mm/min, 50mm/min | 10~50mm/min,adjustable |
| Force measurement | no | yes |
| PC communication | no | yes |
| size | 2365*520*1000mm | 2365*520*1000mm |
Detail Images:

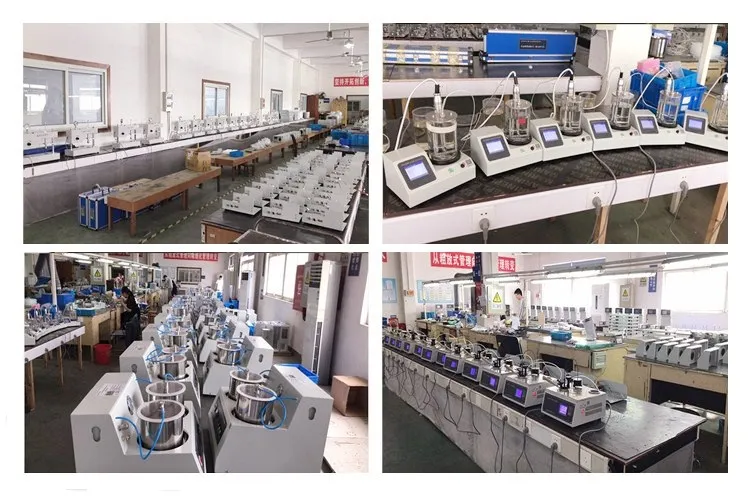

Company Information:
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
We mainly design and manufacture the petroleum testing instrument
After several years' development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of petroleum testing instrument .
