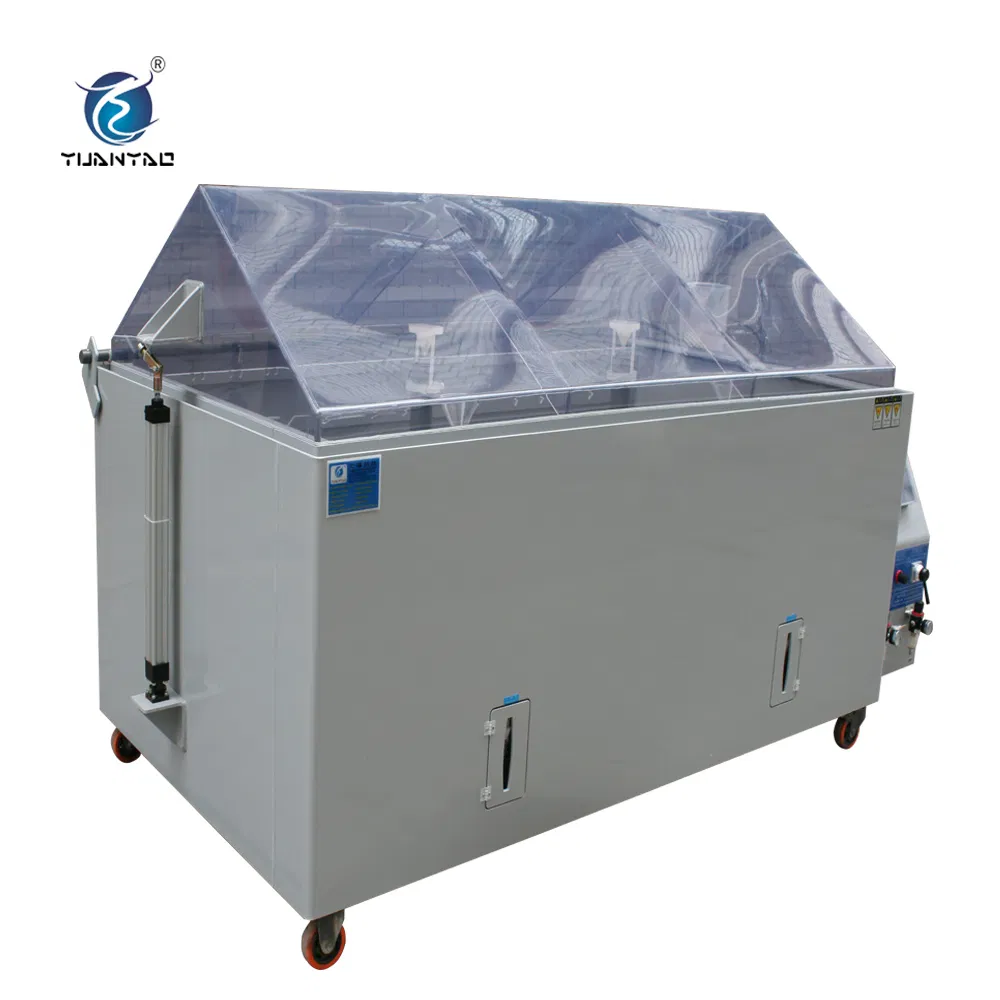

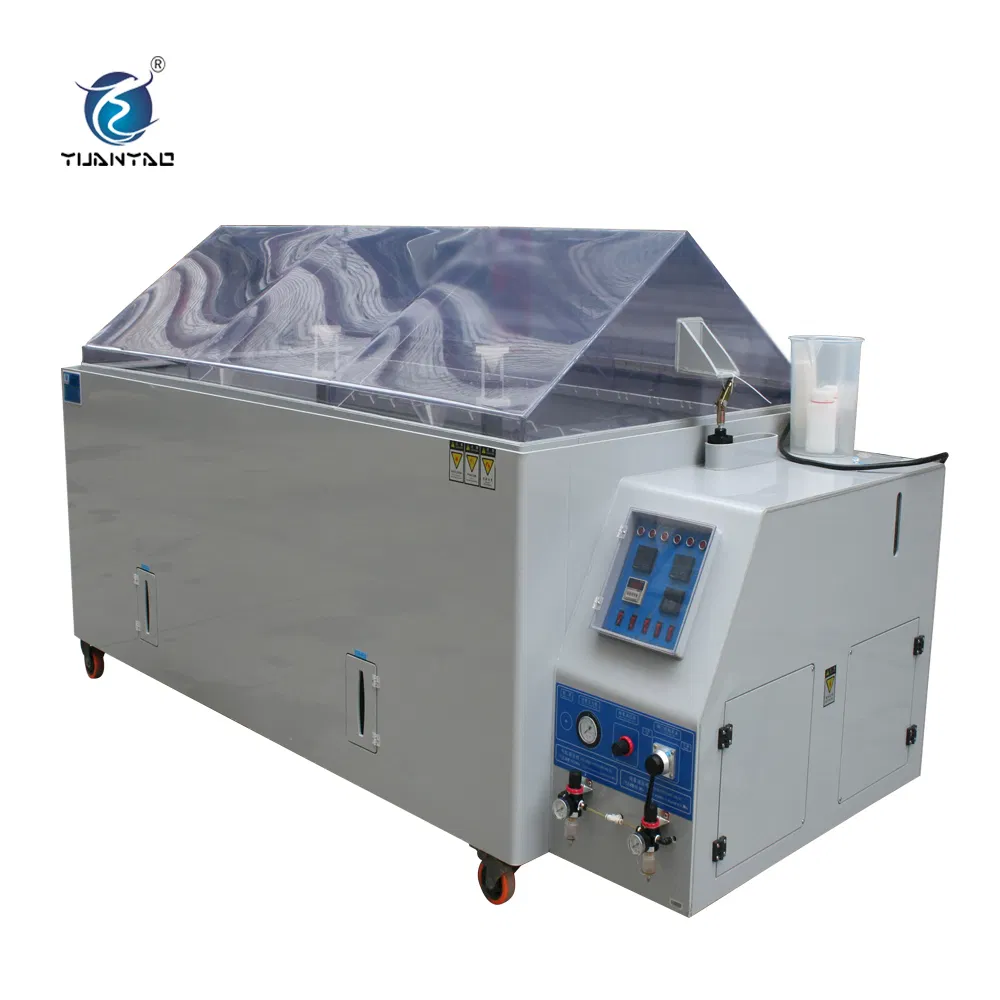

Simulated Brine Corrosion Aging Salt Spray Test Chamber
Simulated Brine Corrosion Aging Salt Spray Test Chamber Application: Simulated Brine Corrosion Aging Test Chamber can evaluate the salt spray corrosion resistance of the material and its protective layer, and the process quality of similar protective layers. It can evaluate the resistance of some pr......
Send Inquiry
Product Description

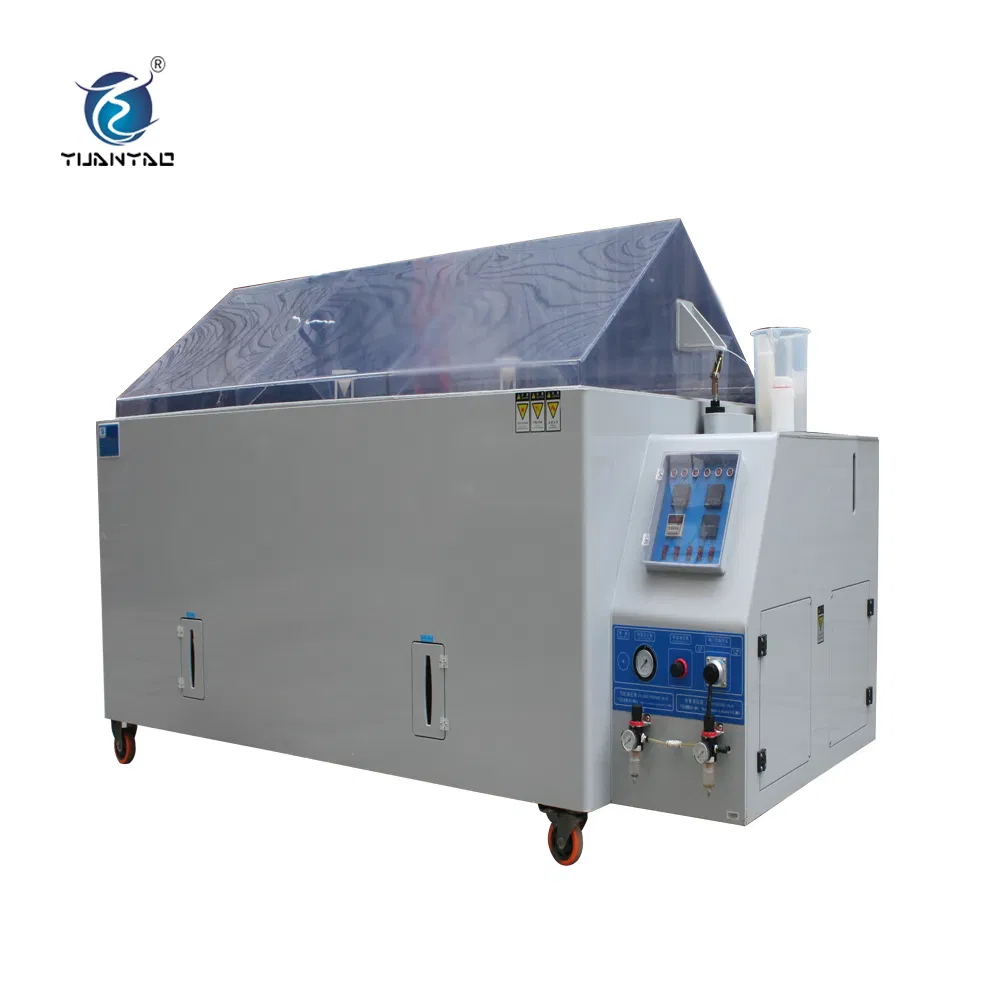

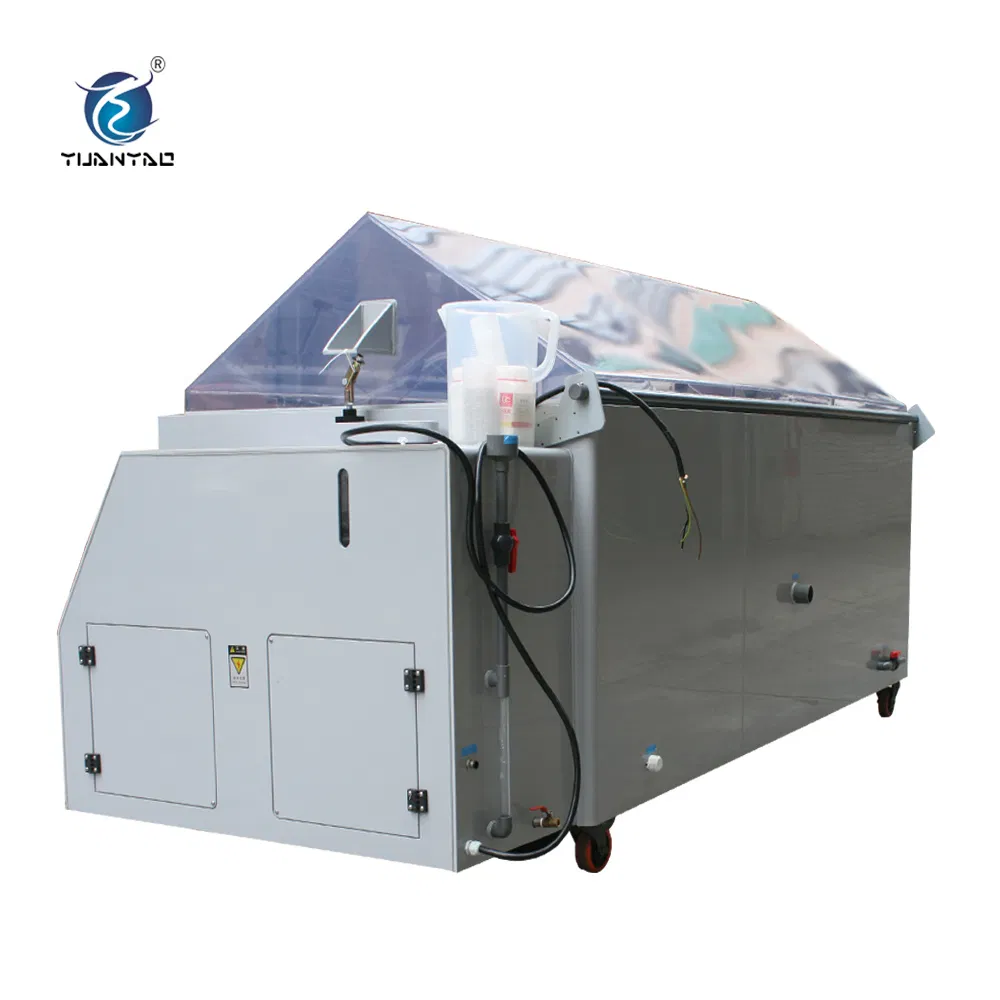

Simulated Brine Corrosion Aging Salt Spray Test Chamber
Application:
Feature
1 Entire PP&PVC solid mechanical structure, resistance to hydrochloric acid, heat resistance and never aging, suitable for salt fog copper
acetate, etc.
2 Patent nozzle and conical diffusion device makes the fall fog rapidly and evenly. With manual level automatic control mode, the biggest
setting time can reach 9990 hours.
3 Three complete temperature control systems(Saturated air temperature, the temperature in the cabinet, the test liquid temperature) ensure
the consistency and standards of the test.
4 Have automatic demist device, can clear observe tested products after the experience is finished.
5 Meet international test standards.
6 Customization is available & welcomed.
Specification
| Model | YSST-108 | YSST-270 | YSST-600 | |
| Inner chamber size W×H×D(cm) | 60×45×40 | 90×60×50 | 120×50×100 | |
| External chamber size W×H×D(cm) | 107×58×103 | 138×80×115 | 170×95×115 | |
| Temperature range | Inside chamber Temperature | RT~50ºC,±0.5ºC | ||
| Air saturated bucket | RT~63ºC,±0.5ºC | |||
| Temperature | RT~50ºC,±0.5ºC | |||
| Saturated barrel air pressure (kg/m) | 0.8~2.0 | |||
| Falling fog amount (m/80/hr) | 0.5~3.0 | |||
| PH | Brine PH | 6.5~7.2 | ||
| PH value of Copper acetate | 3.0~3.2 | |||
| Material | External chamber | PVC | ||
| Inner chamber | PVC | |||
| System | Spray system | Air acid (base) liquid | ||
| Heating system | SUS#304 Stainless steel high-speed heater | |||
| Control system | Push-button digital display controller+timer+SSR+PID | |||
| Other components | Hydrometer,salinity meter,mist collector,glass strip | |||
| Safety devices | Overheat protection circuit breaker,dehydration and overheat prevention mechanism,overload indicator | |||
| Power supply | AC 1ψ 220V 50/60Hz | |||
| Customization service | Non-standard or special requirements are all welcome | |||

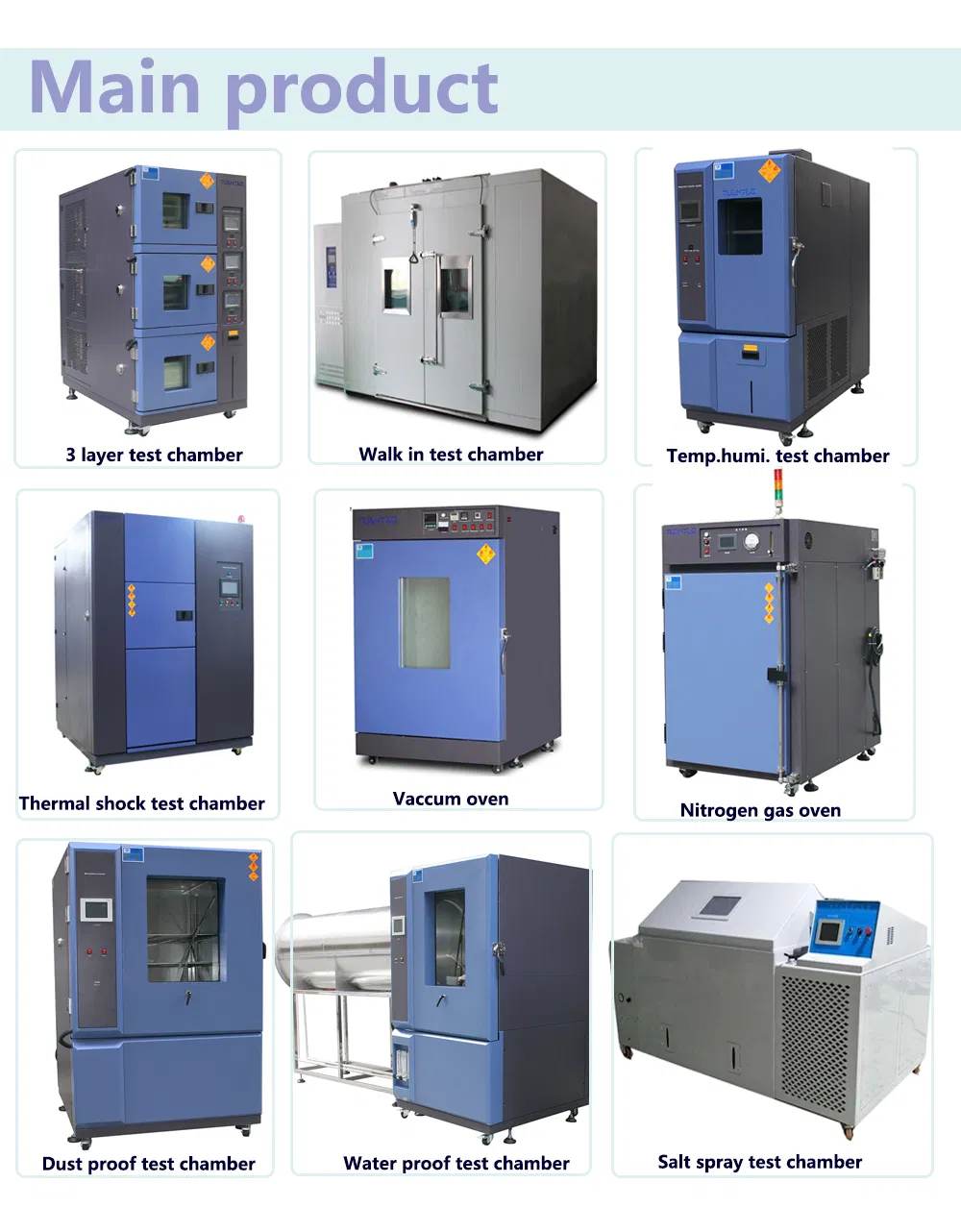

Besides Simulated Brine Corrosion Aging Test Chamber, our business range also covers:
Temperature humidity chamber, Thermal shock chamber, Walk-in stability chamber, Fast change rate temperature chamber, Ozone aging test chamber, Industrial hot air oven, Dustfree hot oven, Rain spray test chamber, Dust test chamber, Automatic glue dispensing machine, Climate and vibration combined chamber, Temperature humidity control cabinet, Burn-in aging test oven, Steam aging test chamber,
Ventilation aging test chamber, Vibration tester, Tensile tester, Drop tester, etc.
