Simulated High Altitude Testing Lower Pressure Vacuum Test Chamber
Simulated High Altitude Testing Lower Pressure Vacuum Test Chamber Description : Altitude test chamber, namely High-low temperature and low pressure test chamber or Low pressure test chamber Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--hig......
Send Inquiry
Product Description

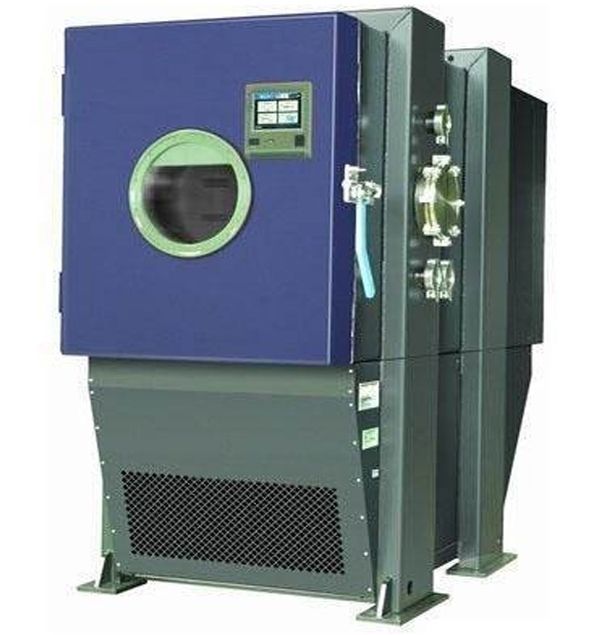

Simulated High Altitude Testing Lower Pressure Vacuum Test Chamber
Description :
Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test.
Specification :
Standard configuration:
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
TRUMPF machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Thermostat regulator balanced manner BTPC thermostat (regulator) mode
Ambient temperature: 5 ºC ~ 35 ºC; Humidity: ≤90% RH; Atmospheric pressure: 86-106kPa
Material cold rolled steel shell, surface spray
SUS304 stainless steel inner tank
Rigid polyurethane foam insulation foam glass +
Regulator heater Nichrome heater
Fan shaft seal magnetic fluid flow fan
Refrigeration machinery contraction two binary cascade refrigeration (cooling)
Refrigeration compressor: Semi-hermetic compressors
Refrigerant: R404a / R23
Controller Display: 7 "color screen, liquid crystal display (LCD)
Run the program mode, setting mode
Setting mode Touch (piezoelectric)
Program capacity 32 programs, each up to 800 steps (segments), maximum 999 cycles
Setting range operating temperature range adjustment device according to (limit 5 ºC, the lower limit of -5 ºC)
Display Resolution time: 0.1min; temperature: 0.1 ºC; pressure: 0.1kPa
Enter thermal resistance, pressure sensors
Anti-windup PID control mode
Power: AC380 (1 ± 10%) V (50 ± 0.5) Hz three-phase four-wire protective earth
Maximum power current: (A) 35 35
Safety devices
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
FEATURES
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application
Altitude chamber working principle
RFQ
Description :
Altitude test chamber, namely High-low temperature and low pressure test chamber or Low pressure test chamber
Can be used in electrical products, materials, spare parts, equipment, etc, for single featured test--high temperature, low temperature and altitude(under 30,000 or 45,000 meters) test and comprehensive test--- heat-and-cool circulation test, temperature-and-altitude test. Specification :
| Specifications | |||||
| Model | XB-OTS-252M | XB-OTS-504M | XB-OTS-1000M | XB-OTS-2160M | |
| Inner Size (D*W*H)mm | 600*600*700 | 800*700*900 | 1000*1000*1000 | 1200*1400*1200 | |
| Capacity(KW) | 11 | 15 | 16 | 18 | |
| Chamber Volume(L) | 252 | 504 | 1000 | 2160 | |
| Specifications | Temp range | -70ºC~+150ºC | -70ºC~+150ºC | -70ºC~+150ºC | -70ºC~+150ºC |
| Temp fluctuation | ±0.5% | ||||
| Temp deviation | ≥100ºC, ±3.0ºC(at 101kPa, ATM no load) | ||||
| <100ºC, ±2.0ºC(at 101kPa, ATM no load) | |||||
| Cooling rate | 0.7ºC~1.0ºC/min (Average) | ||||
| Pressure range | 101kPa ~1kPa | ||||
| Pressure accuracy | ±2kPa (101kPa ~ 40kPa), ±0.5kPa (4kPa~40pKa ), ±0.1kPa (4kPa~1kPa) | ||||
| Depressurization rate | 101kPa ~1kPa≤30mins (Room temp) | ||||
| Pressure recovery rate | 10kPa/Min(adjustable) | ||||
| Material | External chamber | Cold-rolled steel sheet(Rust proof&Plastic Spray treated)/Stainless Steel plate | |||
| Internal chamber | Stainless steel(SUS304) | ||||
| Pressurized parts | High quality steel plate(Rust proof & Plastic spray treated) | ||||
| Insulation material | High quality glass wool | ||||
| Cooling System | Compressor | Semi-Hermetic Compressor | |||
| Cooling way | Water cooled | ||||
| Temp regulating method | Balanced Temperature & Humidity Control System (BTHC) | ||||
| Pump | Rotary vane type vacuum pump | ||||
| Heater | Iron-chrome wire heater | ||||
| Sight window | Circular viewing glass incorporating heat generator | ||||
| Temp Sensor | Pt-100 | ||||
| Controller | Touch Screen Controller | ||||
| Safety Devices | Over pressure, heat and current protection compressor, over temp. protection, over load protection for blower, hydraulic and water lack Protection, leakage protection, phase-lack protection, Pump failure alarm | ||||
| Standard Accessory | Viewing window, Cable Port( 1 located on the left side), Baffle, Baffle frame*2 | ||||
| Power | AC380V/50Hz, 3Phase 4 wires+ Ground Wire. | ||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations are available | |||||
Standard configuration:
Two sample holders; an observation window; φ25 or φ50 cable hole.
Optional parts:
Communication interface RS232 or RS485, logger, micro printer, remote temperature and humidity control system (including printers, communications software, computer), mobile casters.
Structure:
Overall structure: the new design is easier to operate and maintain.
Water and electricity system is separated;
External humidifying design;
Three levels of overheat protection, easy access for refrigeration servicing, etc.
Material:
TRUMPF machines for sheet metal processing;
Tecumseh, Bock Compressor;
High quality electronic components (DANFOSS, ALCO, RANCO, SPORLAN, SAGINOMIYA, Schneider solenoid valve)
Standards Implemented and Met
B10592-89 Technical requirements for high and low temperature test chamber
GB2423.1-1989 Low temperature test
GB2423.2-1989 High temperature test mode
Thermostat regulator balanced manner BTPC thermostat (regulator) mode
Ambient temperature: 5 ºC ~ 35 ºC; Humidity: ≤90% RH; Atmospheric pressure: 86-106kPa
Material cold rolled steel shell, surface spray
SUS304 stainless steel inner tank
Rigid polyurethane foam insulation foam glass +
Regulator heater Nichrome heater
Fan shaft seal magnetic fluid flow fan
Refrigeration machinery contraction two binary cascade refrigeration (cooling)
Refrigeration compressor: Semi-hermetic compressors
Refrigerant: R404a / R23
Controller Display: 7 "color screen, liquid crystal display (LCD)
Run the program mode, setting mode
Setting mode Touch (piezoelectric)
Program capacity 32 programs, each up to 800 steps (segments), maximum 999 cycles
Setting range operating temperature range adjustment device according to (limit 5 ºC, the lower limit of -5 ºC)
Display Resolution time: 0.1min; temperature: 0.1 ºC; pressure: 0.1kPa
Enter thermal resistance, pressure sensors
Anti-windup PID control mode
Power: AC380 (1 ± 10%) V (50 ± 0.5) Hz three-phase four-wire protective earth
Maximum power current: (A) 35 35
Safety devices
1. Power owed to reverse protection
2. No fuse switch
3. Dry compustion prevention switch
4. The water protection switch
5. Over-temperature protection
6. Motor overload protection
7. The high-pressure compressor protection
8. The overheating protection of compressor
9. The over-current protection of compressor
10. The over-current protection of vacuum pump
FEATURES
1. Temperature: -70 ~170ºC
2. Altitude: ground to 100,000 feet
3.External pressure type box body structure and stainless steel tank design, rational air circulation system and scientific layout of heating, refrigerating system.
4.Adopts international brand of imported parts for cooling system to improve operation reliability
5. High precision and stable performance with touch screen controller, friendly Man-Machine interface.
6. Multiple layers of safe device , easy for maintenance.
7.Viewing window and cable ports are available.
8. Vacuum pump sized for climb/dive rate required by application

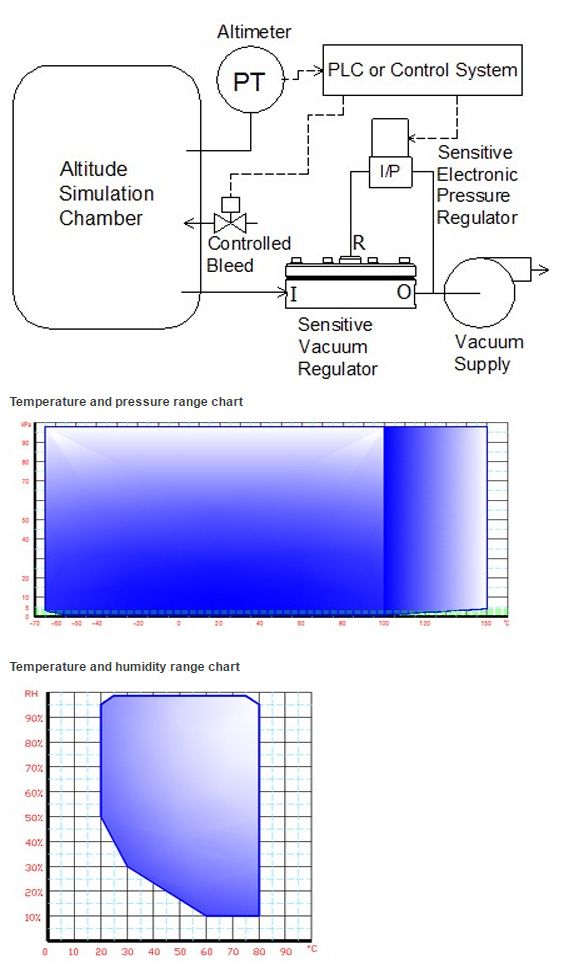

Altitude chamber working principle
