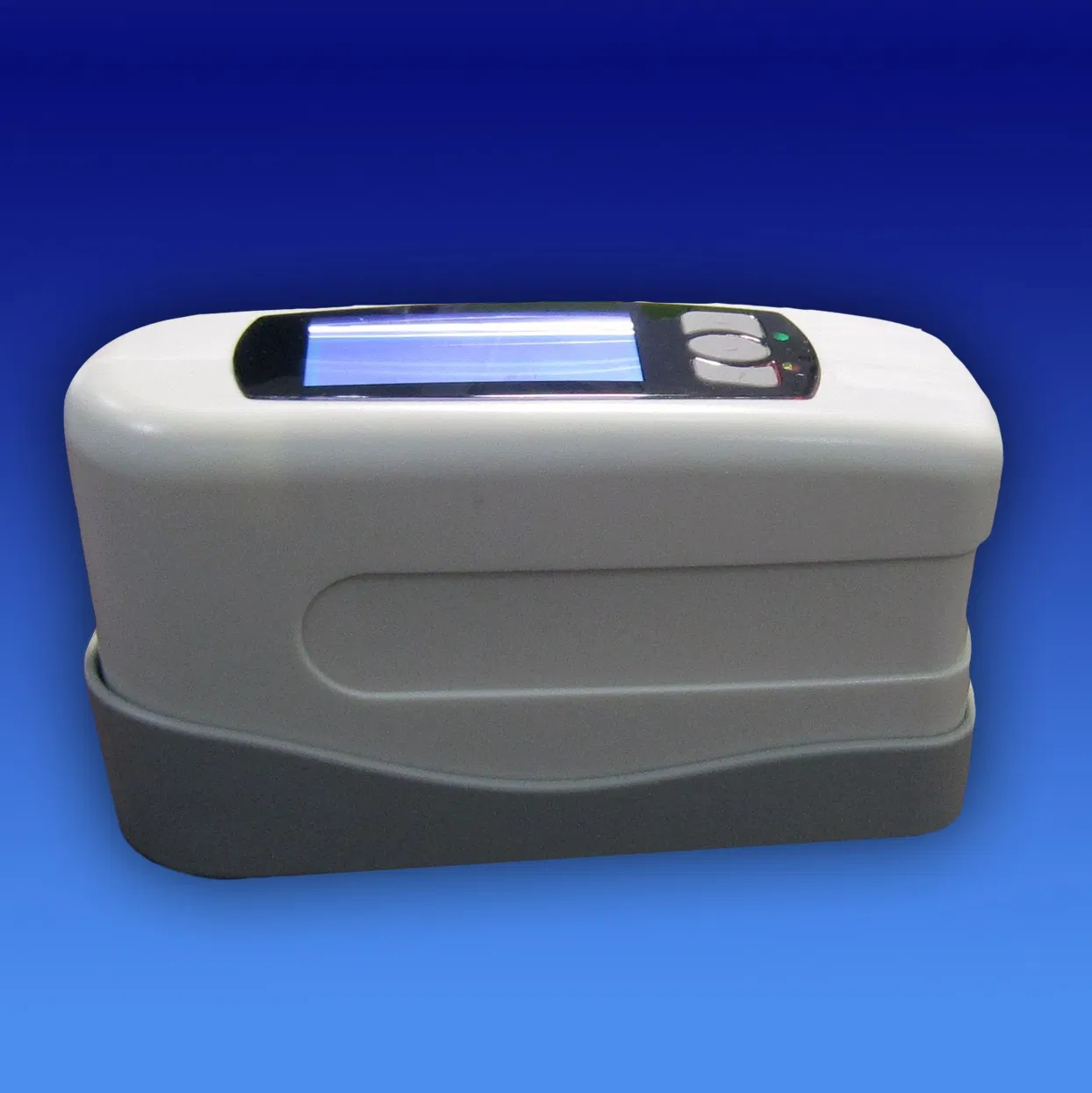

China Single Angle Glossmeter Gms/GM60 with USB Interface

Product Description

GlOSS METER GMS/GM60

Introduction
GM Series gloss meters are designed and manufactured according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/ T8807. The technical parameters is up to JJG696-2002. GM Series gloss meters can be widely used to measure painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.

Key Features
Precision appearance design, more suitable for human characteristic, easy to use.
Three-angle gloss data is displayed simultaneously, can satisfy various require-ments. (Only for GMS)
Large memory for measurement data.
Latest Bluetooth function and removable memory card to transmit data conveniently.
Speical designed gloss software to analysis data and output.
Prompt for low battery and full memory.

With USB interface, GM gloss meter can transfer data with PC easily. The measuring data also can be exported to printer via printing interface. Optional SD card makes the memory as large as you want .

Specifications

Model	GMS	GM60
Application	Painting, printing, floor material, plastic, ceramics, leather, hardware, plating
Measuring Range(Gu)	0~120, 120~2000 @ 20° 0~120, 120~1000 @ 60° 0~120, 120~160 @ 85°	0~120, 120~1000 @ 60°
Readout Error(Gu)	±1.5 (0~120) ±1.5%(120~2000)	±1.5 (0~120) ±1.5%(120~1000)
Repeatability	±0.5 (0~120) ±0.5%(120~2000)	±0.5 (0~120) ±0.5%(120~1000)
Aper ture (mm)	20°, 60°, 85°	60°
Measurement Spot (mm)	10×10 @ 20° 9×15 @ 60° 5×38 @ 85°	9×15
Memory	900 data or 30 groups, CF card (optional)
Inter face	USB / printer /Bluetooth (Bluetooth is only avalaible for GMS)
Software	Data managing software
Power Supply	+5V, AA*4
Working Environment	10~40ºC, <85%RH,
Dimension (mm)	Dimension (mm) 164×58×88
Net Weight(g)	520
Standards	ISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807
