Product Description
Introduction
Precise plug-in host machine adopts a custom framework, backboard bus bandwidth up to 3Gbps, support 16 trigger bus, to meet the needs of high speed communication of multi-card devices.

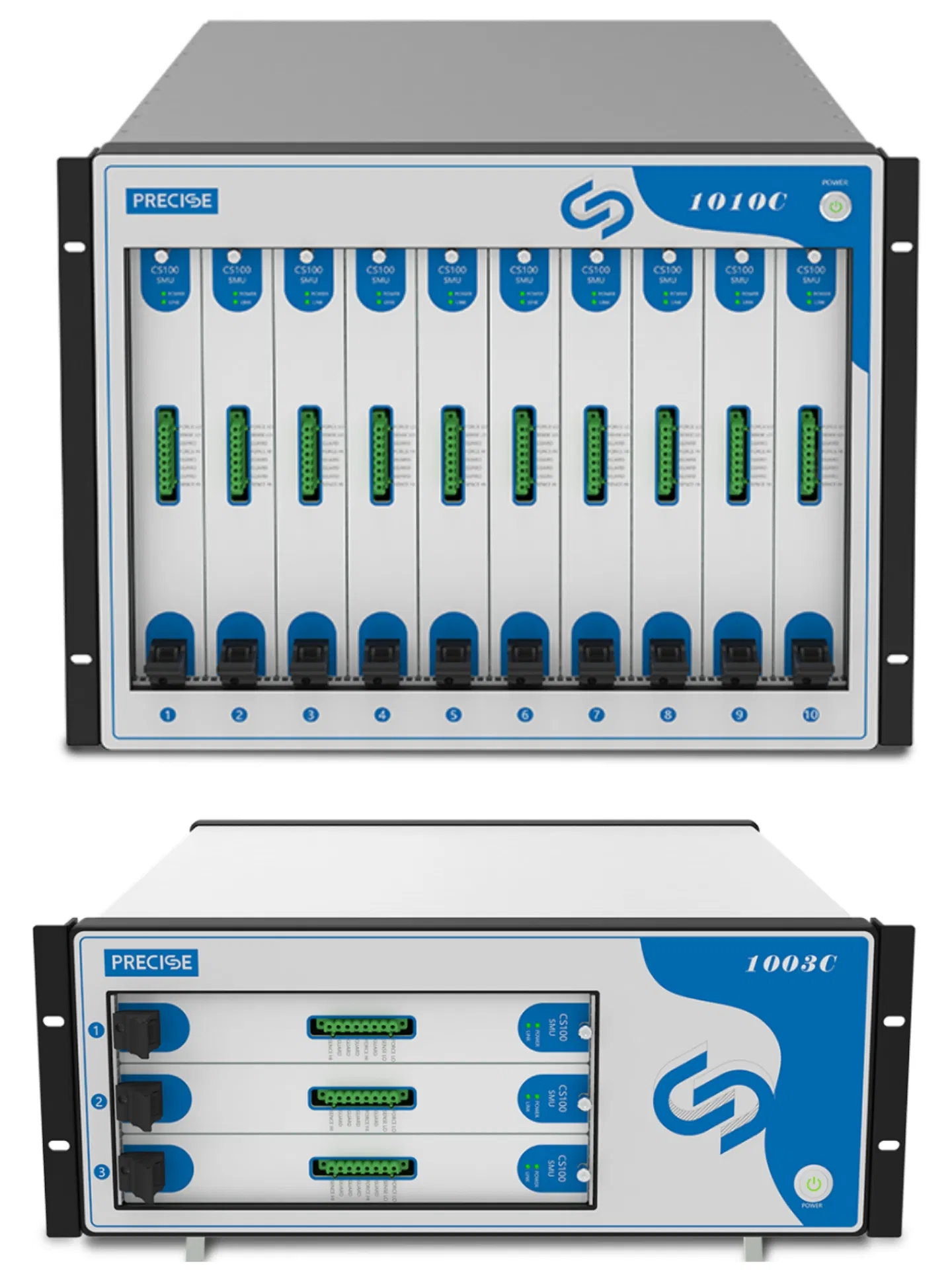

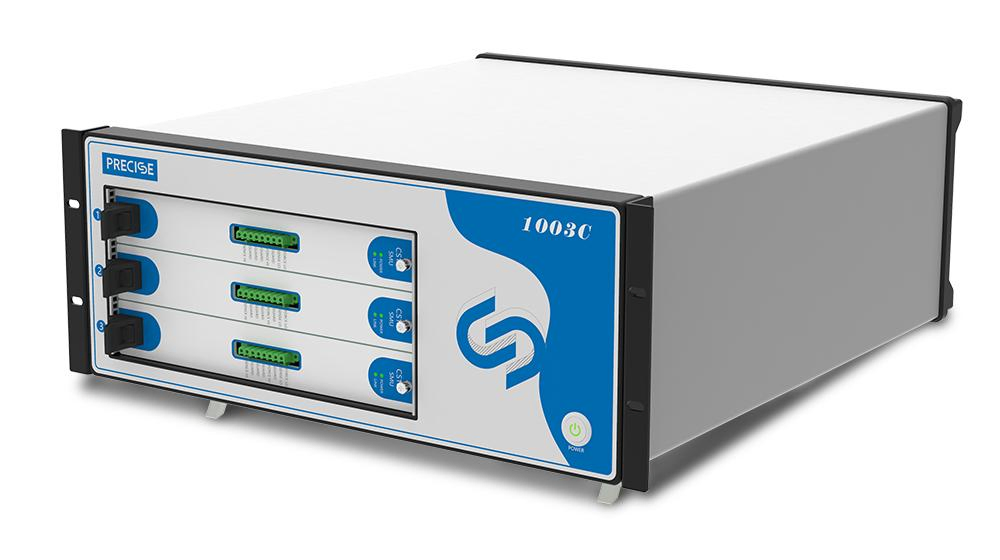

In order to meet the different needs of customers for the number of sub-cards, two host machine(1003C and 1010C) have been launched. 1003C can hold up to 3 sub-cards, and 1010C can hold up to 10 sub-cards.We also have developed four sub cards (CS100,CS200,CS300 and CS400) for users to flexibly configure different sub-cards according to their functional and performance requirements to achieve the optimal cost-effective collocation.
Flexible channel trigger bus
High efficiency of multi-card combination
Up to 40 channels of configuration
High-accuracy at 0.1%
Four-quadrant operation, range: 10pA~1A , 30uV~300V
Multiple communication interfaces RS-232/GPIB/LAN
Applications
Nano material properties test: graphene, nanowires, etc
Organic material properties test: electronic ink, printing of electronic technology, etc
Energy and efficiency characteristic test: LED/AMOLED, solar cells, batteries, DC to DC converters, etc
Discrete semiconductor devices feature test: resistor, diode, light emitting diodes, Zener diodes, the PIN diode, BJT transistor, MOSFET, SIC, etc
Capabilities
Host machines need to be used with sub cards, if you use our plug-in type series of source meters for the first time, please mark how many channels need to be used when purchasing the plug-in source meter devices, so that our company will close the channel you don't need temporarily, to ensure the appearance of beauty.

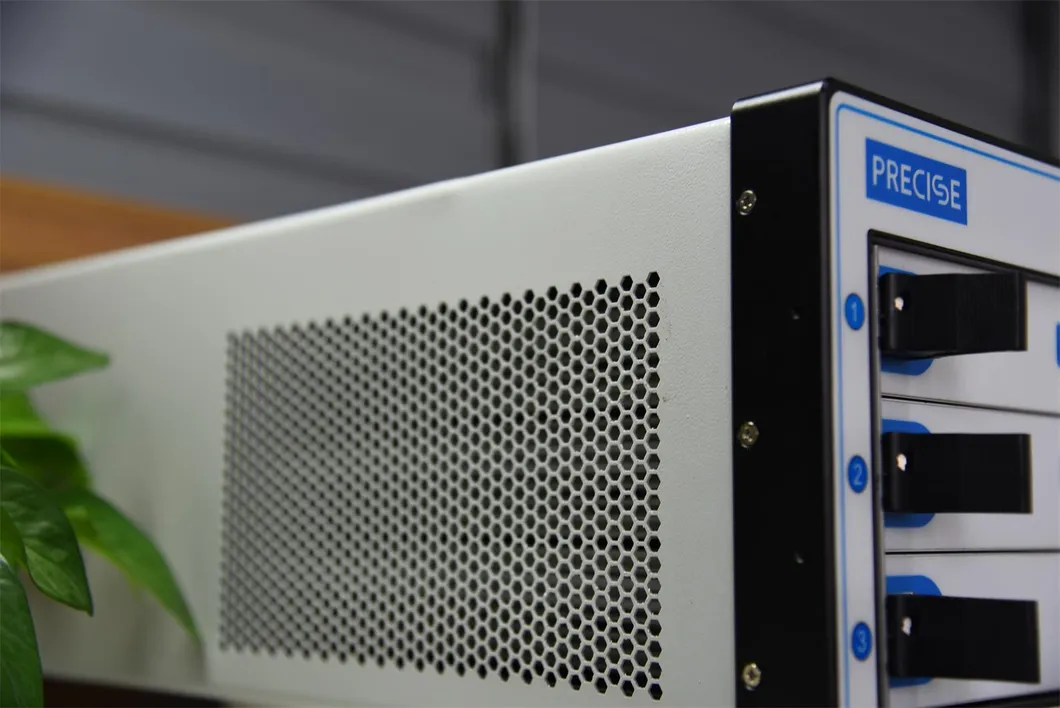

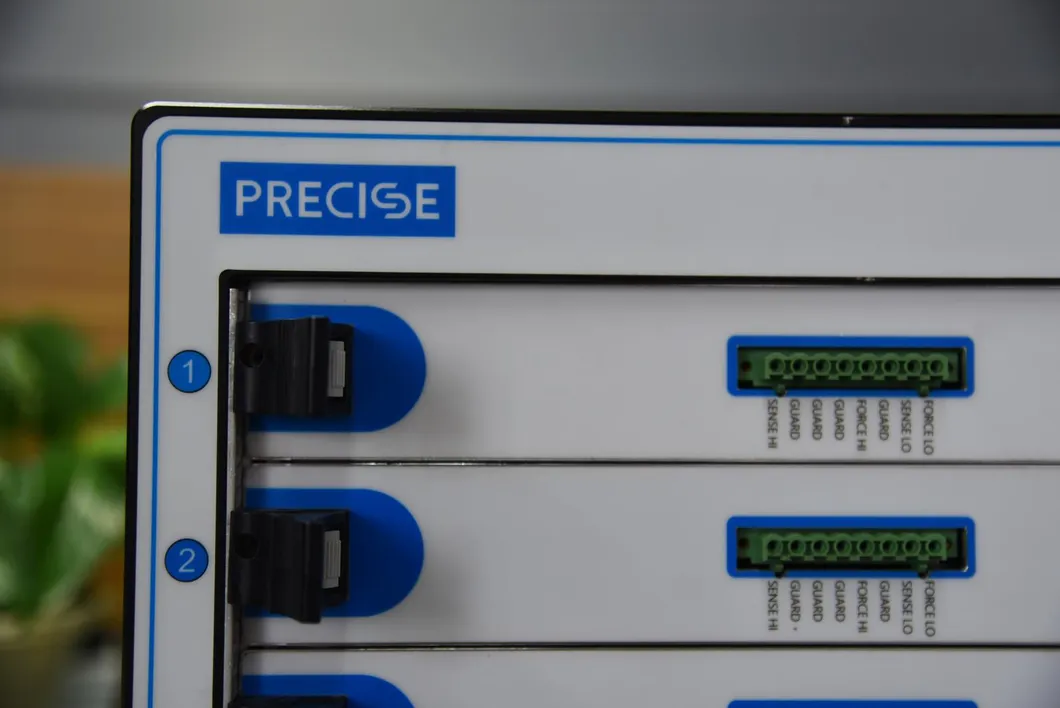

Host machine
| No. | 1003C | 1010C |

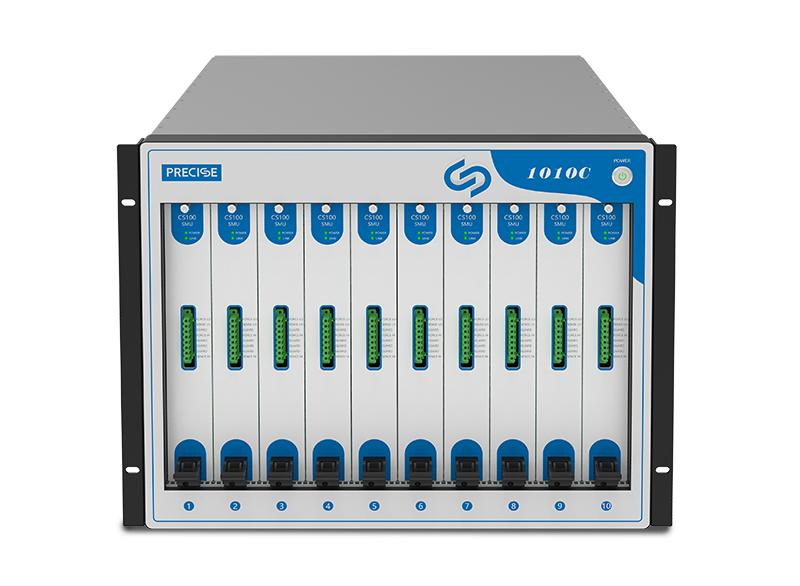

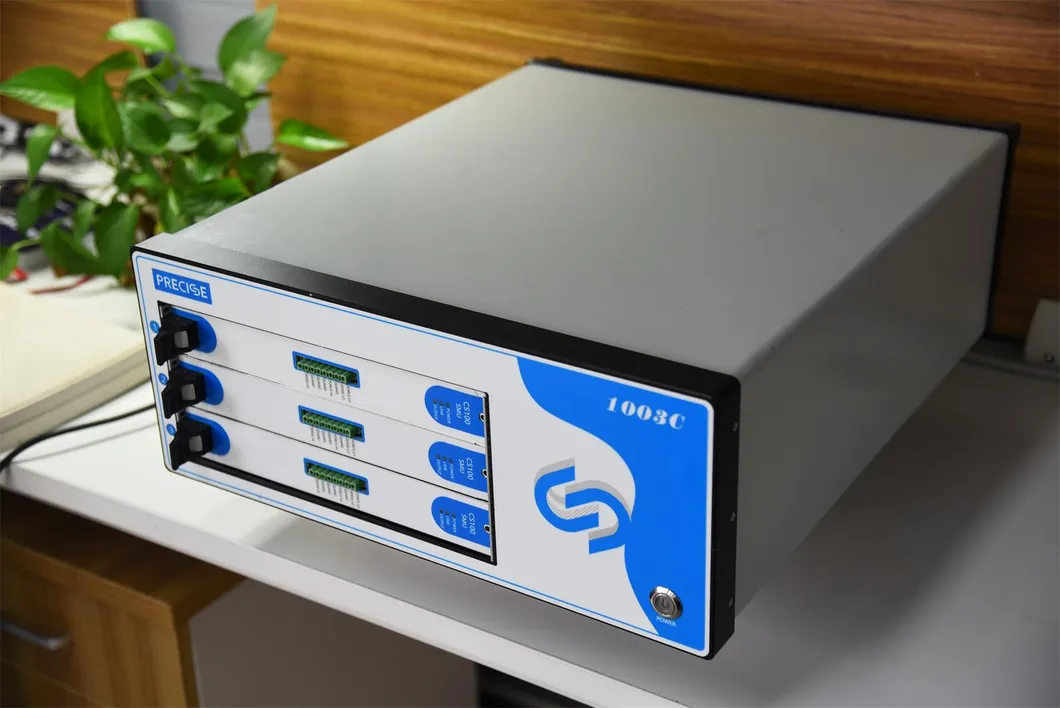

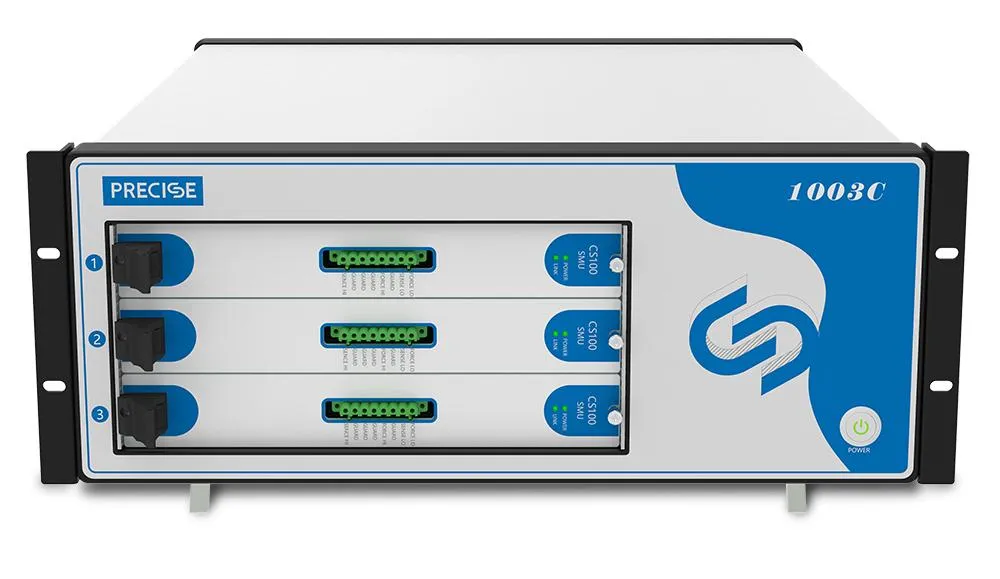

| Card slot number | 3 slots | 10 slots |

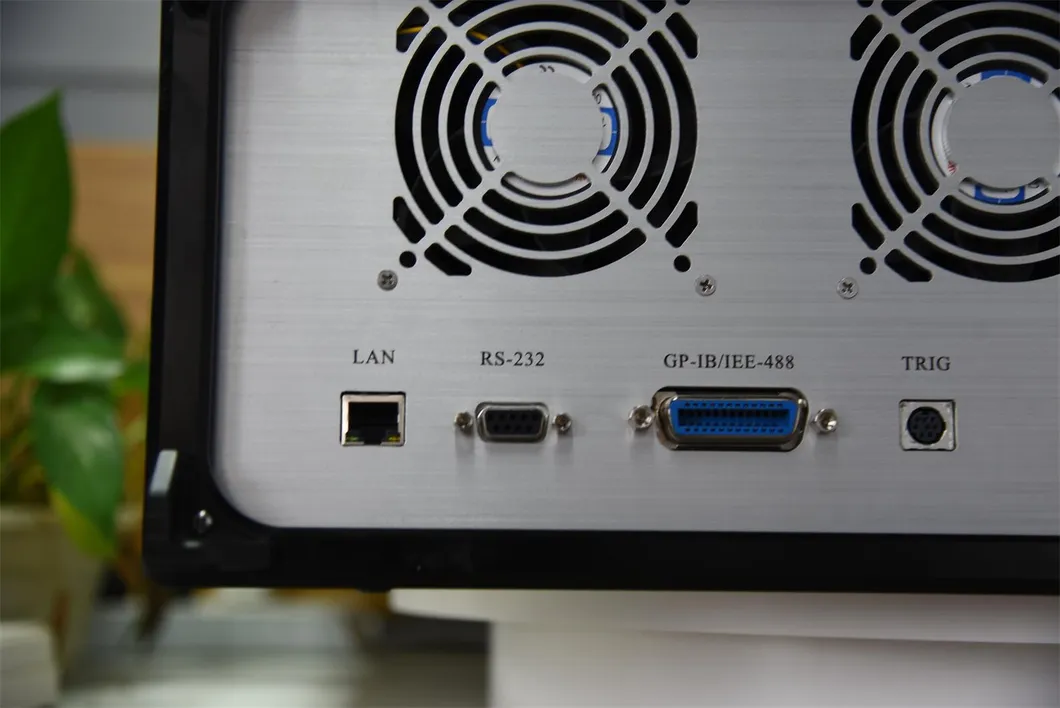

| Communication Interface | RS-232,GPIB,LAN | RS-232,GPIB,LAN |
| Power supply | AC100V~240V 50/60Hz | AC100V~240V 50/60Hz |
| Max output power | 500W | 500W |
| Temperature coefficient | 25±10 ºC | 25±10 ºC |
| Size | 552mm L x 482mm W x 178mm H | 552mm L x 482mm W x 354mm H |
| Warranty | 1 year | 1 year |
| NO. | SC100 |
| Channel number | 1 channel |
| Max output power | 30W, four quadrant source or sink operation |
| Source/sink limits | ±30V (≤1A), |
| ±1.05A (≤30V) | |
| Overrange | 105% of range, source and measure |
| On-load capacitance | <22nF |
| Noise (20MHz) | 2mV RMS, <20mV Vp-p |
| Voltage guard | Output impedance 1 kΩ, Deflection-Voltage<10mV |
| Max sampling rate | 1000 sample/s |
| Warranty | 1 year |
| Quadrant table |  |
| Voltage | Source | Measure | ||
| Range | Programming resolution | Accuracy±(% rdg.+ volts) | Programming resolution | Accuracy±(% rdg.+ volts) |
| 300mV | 30uV | 0.1%±300uV | 30uV | 0.1%±300uV |
| 3V | 300uV | 0.1%±500uV | 300uV | 0.1%±500uV |
| 30V | 3mV | 0.1%±3mV | 3mV | 0.1%±3mV |
| Current | Source | Measure | ||
| Range | Programming resolution | Accuracy±(% rdg.+ A) | Programming resolution | Accuracy±(% rdg.+ A) |
| 100nA | 10pA | 0.1%±0.5nA | 10pA | 0.1%±0.5nA |
| 1uA | 100pA | 0.1%±3nA | 100pA | 0.1%±3nA |
| 10uA | 1nA | 0.1%±5nA | 1nA | 0.1%±5nA |
| 100uA | 10nA | 0.1%±50nA | 10nA | 0.1%±50nA |
| 1mA | 100nA | 0.1%±300nA | 100nA | 0.1%±300nA |
| 10mA | 1uA | 0.1%±5uA | 1uA | 0.1%±5uA |
| 100mA | 10uA | 0.1%±20uA | 10uA | 0.1%±20uA |
| 1A | 100uA | 0.1%±2mA | 100uA | 0.1%±2mA |
