Stability Water Resistance Rain Test Chamber Machine

Product Description

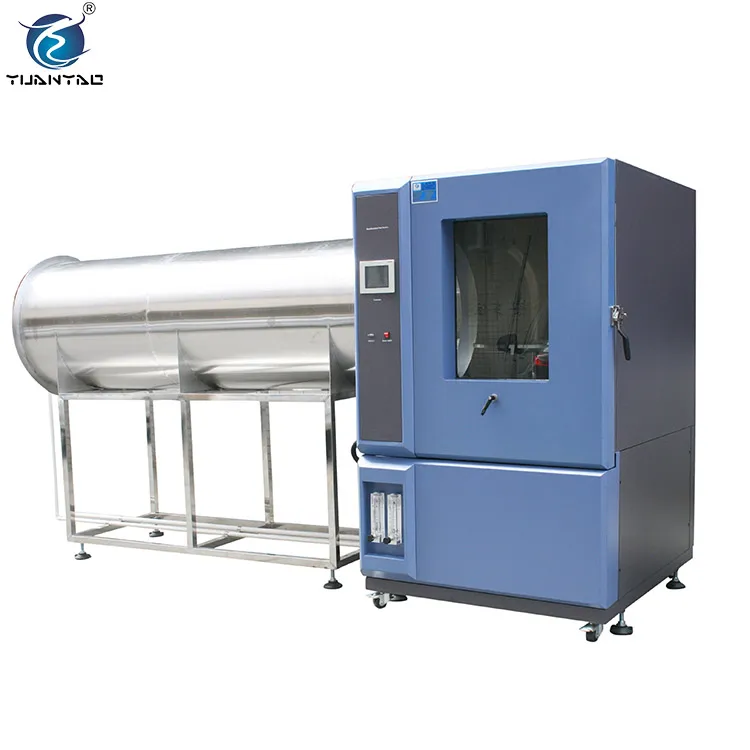

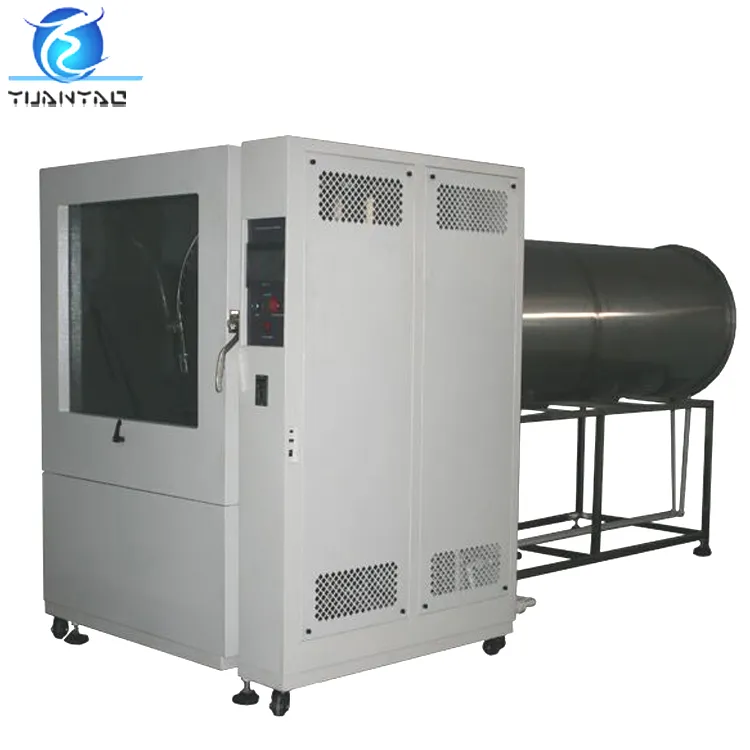

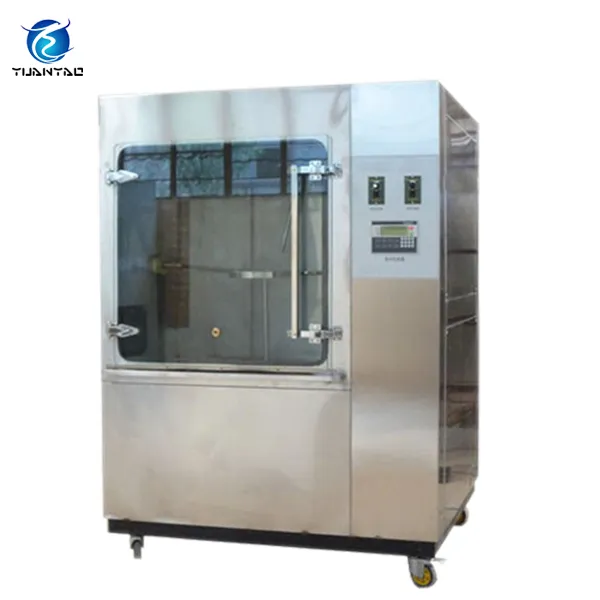

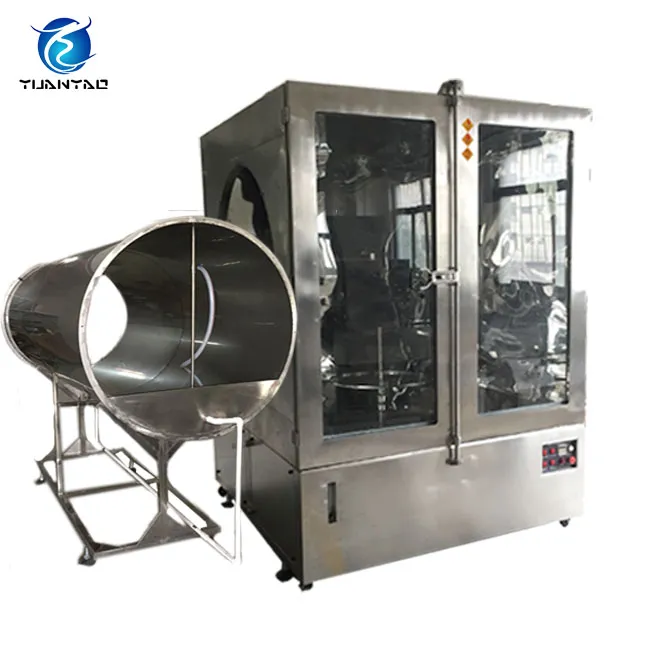

Stability Water Resistance Rain Test Chamber Machine

Introduction&Application:

Stability water resistance rain test chamber machine simulates the watet drip environment to test the water

resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical

and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle

and its spare parts and other products. It provides the basis to improve the performance of the products.

Feature:

1. Meet the requirement of IEC60529 standard IPX3 water pouring test and IPX4 water splash test.

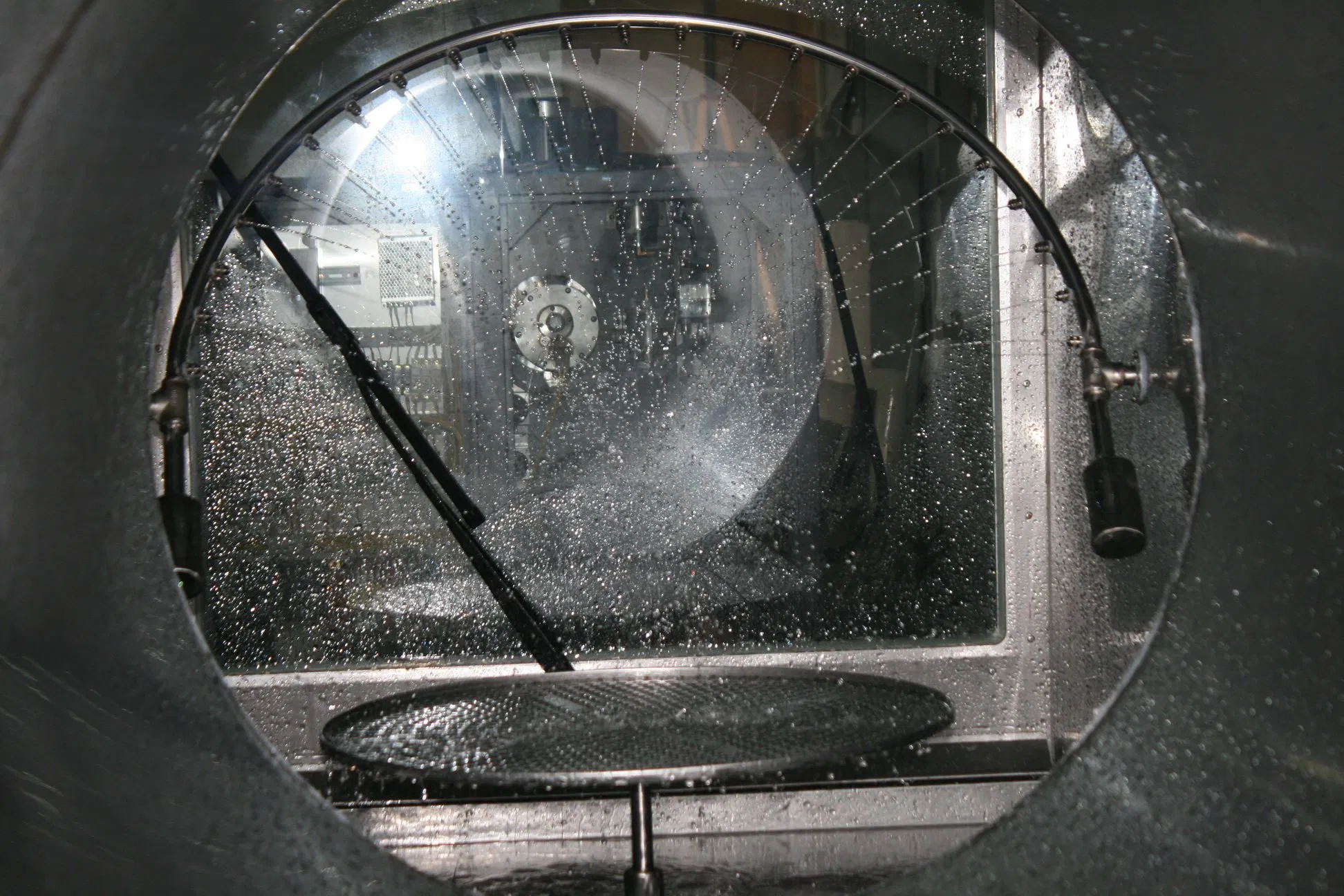

2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.

3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.

4. Use Mitsubishi PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.

5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.

6 Best after sales service: 12 months free parts maintenance.

7 Customization is available & welcomed.

Technical parameters:

Model No.		YSRT-500	YSRT-1000	YSRT-1728
Inner chamber size W×H×D(cm)		80×80×80	100x100x100	120x120x120
Exterior chamber size W×H×D(cm)		125×180×340	145x200x360	165x220x380
Rain drop area (IPX1-IPX2)		60x60cm	60x60cm, 80x80cm	80x80cm, 100x100cm
Swing pipe radius (IPX3-IPX4)		30cm	40cm	50cm
Rotary table diameter&load		50cm,50KG	60cm,50KG	80cm,50KG
Spray nozzle diameter & jet distance (IPX5-IPX6)		6.3mm(IPX5),12.5mm(IPX6); 2.5~3m
Water flow and jet distance (IPX1-IPX6)		1~1.5mm/min(IPX1),3~3.5mm/min(IPX2); 1.1L/min(IPX3),1.8L/min(IPX4); 12.5L±0.625L/min(IPX5),100±5L/min(IPX6)
Rotating speed of rotary table		1~5r/min,ajustable
Material	Inner chamber	SUS#304 stainless steel plate
	External chamber	Cold rolled sheet + powder coating
Other components		Indoor light, wiper, caster adjuster
Power supply		AC 3Ψ 380V 60/50Hz
Customization service		Non standrad special requirement can be customized.
