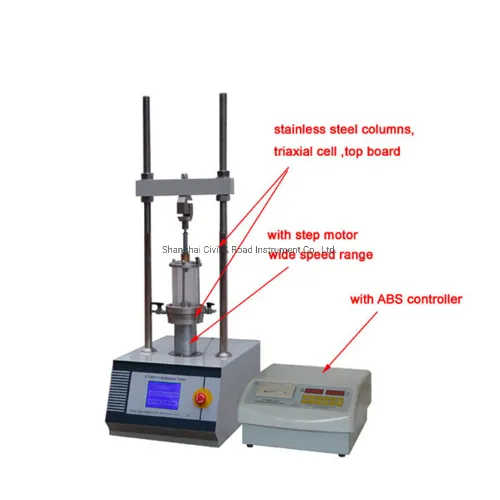

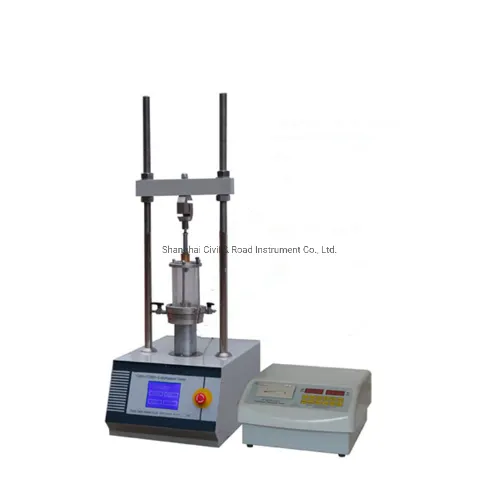

Stsz-Zd Automatic Triaxial Test Set
STSZ-ZD Automatic Triaxial Test Set (Ball screw rod structure)Standard: BS 1377:7, ASTM D2850Application:The Strain Controlled Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test.The Strain Controlled Triaxial Test Apparatus is a typ......
Send Inquiry
Product Description
STSZ-ZD Automatic Triaxial Test Set (Ball screw rod structure)
Standard: BS 1377:7, ASTM D2850
Application:
The Strain Controlled Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test.
The Strain Controlled Triaxial Test Apparatus is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø39.1 x 80mm.
The Strain Controlled Triaxial Test Apparatus can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
Feature:Controlled by singlechip, data setting of confining pressure and backpressure is by keyboard input., elavation of main frame is controlled. Main frame is driven by servo motor, and shearing rate is variable.
Parameters:
Standard: BS 1377:7, ASTM D2850
Application:
The Strain Controlled Triaxial Test Apparatus is designed for laboratory and educational use as well as institute for civil engineering test.
The Strain Controlled Triaxial Test Apparatus is a type of strain controlled apparatus to determine the specimen with maximum confining pressure of 1MPa and sample diameter of Ø39.1 x 80mm.
The Strain Controlled Triaxial Test Apparatus can perform the strength and deformation characteristics testing of soil specimen under the static axial load and unconsolidated-undrained test (UU), consolidated-undrained test (CU) and consolidated-drained (CD) test.
Feature:Controlled by singlechip, data setting of confining pressure and backpressure is by keyboard input., elavation of main frame is controlled. Main frame is driven by servo motor, and shearing rate is variable.
Parameters:
| Product Model | STSZ-ZD |
| Axial force | 0-10kN, measurement accuracy: ±1% |
| Shear rate | 0.001-5.000mm/min |
| Specimen size | Φ39.1×80mm |
| Confining pressure | 0-1MPa |
| Back pressure | 0-1MPa |
| Aperture pressure | 0-1MPa |
| Volume change | 0-50ml |
| Features | computer control, curves and test reports can be printed |
