Stye -2000b Digital Display Hydraulic Material Compression Testing Machine

Stye-2000b Digital Display Hydraulic Material Compression Testing Machine
Product Description
Use:

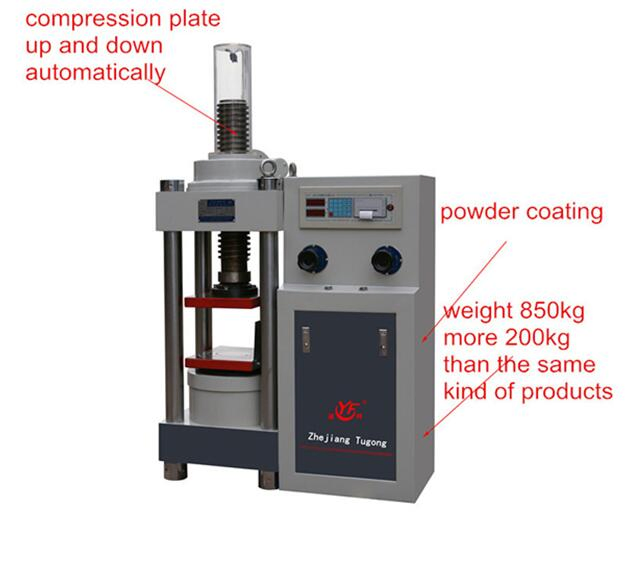

STYE-2000 Digital Display Hydraulic Compression Testing Machine is designed to conduct compression and crushing strength tests on Containers, Concrete cubes &cylinders, hollow blocks and various other materials in accordance with International standard. The machine is
electro-hydraulically operated. The Control Panel comprises of Hydraulic Power Pack, Digital Readout System, Operating Switches, Load Control Valves, Output Print-out of Test Data.
Feature:
Screw pole automatic movingEfficient hydraulic power packsEconomic machines ideal for site useDesigned to meet the need for a simple, economic  and reliable means of testing concrete.The dimensions of the frame allow the testing of cylinders up to320 mm long x 160 mm diameter, and cubes 200mm,150mm or 100 mm square, 50 mm/2 in. square mortar cubes, 40 x 40 x 160 mm mortar and any arbitrary size.Digital readout is a microprocessor controlled instrument which is fitted as standard to all digital machines in the range. Calibrated accuracy and repeatability is better than 1% over the upper 90% of the working range.

STYE-2000B
Max. Testing power: 2000KN
Measuring range: 0-2000KN
Relative indication error: ±1%
Max. distance between the up and down
bearing plates: 310mm
Max. piston stroke: 90mm
Diameter of the piston: Φ250mm
Rated pressure of the hydraulic pump: 40Mpa
Power: AC380 or AC220V±5% 50Hz
Outside size: 950×400×1560mm
Max. piston lift speed: 50mm/min.
Piston free back speed: 20mm/min.
Net weight: about 850KGS
Noise: ≤80Db



Packaging & Shipping
Packing Material: Plywood Case meeting export long transport requirement.
Packing Method: Horizontal Packing to saving more shipping cost.
Shipping : within 5-10 days after receive 100% payment .
Shipping way: shipped by sea or Air is available.


Company Information
We are one of the  professional  manufacturing enterprises of geotechnical instruments, highway instruments and building material instruments in China. Our company's main products are divided into 13 series:
 1. Material Testing machines
 2. Soil Testing Equipment
 3. Cement Testing Equipment
 4. Concrete Testing Equipment
 5. Asphalt Testing Machines
 6. Rock Testing Equipment
 7. Aggregate
 8. Highway Testing Equipment
 9. Balances
 10. Moulds
 11. Sieves
 12. Lab Equipment
 13. Tools and Accessories for Lab
 14. Testing Equipments for drilling liquid mud

Our Services
Your inquiries will be replied in 24 hours, 24 hours technical support by email
Honesty to working for you, after or before  sale with our patient and sincerity.
If any products meet your demand, please feel free to contact us. We are sure your any inquiry or requirement will get prompt reply.

FAQ
1. Factory + trade (integration),35years focusing on test instruments field
2. We accept T/T, L/C or Western Union.
3. Generally about 15 days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
4.  For our products, we will give your professional guidance ( Product introduction  and operation  manual ). Air is available.
