Transformer Winding DC Resistance Tester for Transformer Winding Integrity Test

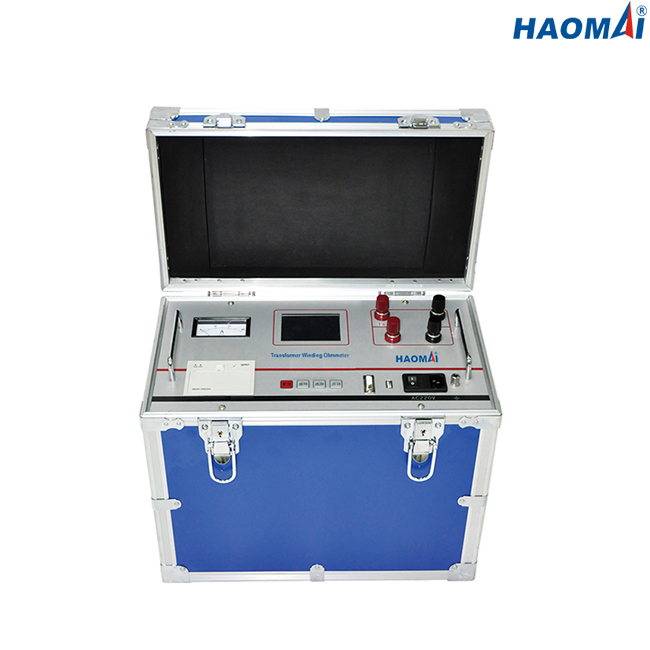

Transformer Winding Ohmmeter
Model: TWO-1100S

Main Features
1)Adopt 4-wire method for resistance measurement
2)DC test current up to 100 A maximum
3)User-selectable maximum current range
4)Resistance measurement from 50μΩ to 4Ω
5)Fast auto safety discharge circuit
6)Able to download test results via USB interface
7)Able to print the test results directly via built-in printer

Description
Transformer Winding Ohmmeter is designed to measure the dc resistance of all types of magnetic windings accurately. It can test transformers and rotating machine windings and perform low-current resistance measurement on connections, contacts and control circuits.

Technical Data
DC output range: 100A, 50A, 20A, 10A, 5A
Resistance measurement
50μΩ-100mΩ @ 100A
100μΩ-200mΩ @ 50A
200μΩ-800mΩ @ 20A
500μΩ-2Ω @ 10A
1mΩ-4Ω @ 5A
Measuring accuracy: ±0.2% reading ± 2μΩ
Resolution: 0.1μΩ
320×240 colour LCD screen for display
USB port for downloading results
Built-in printer for printing test results directly
Max. memory capacity: 1000 test results
Power supply: customized(AC220V/120V±10%, 50Hz/60Hz optional)
Dimension: 400x225x350mm(15.75x8.86x13.78 in)
Weight: 19.5kg(42.99 lb)
Environmental Conditions
storage temperature: -20ºC~60ºC
humidity: <90%
operating temperature: -10ºC~50ºC
Safety Qualifications and EMC
Safety: designed in accordance with IEC61010-1
EMC: light industrial IEC 61326
