Product Description

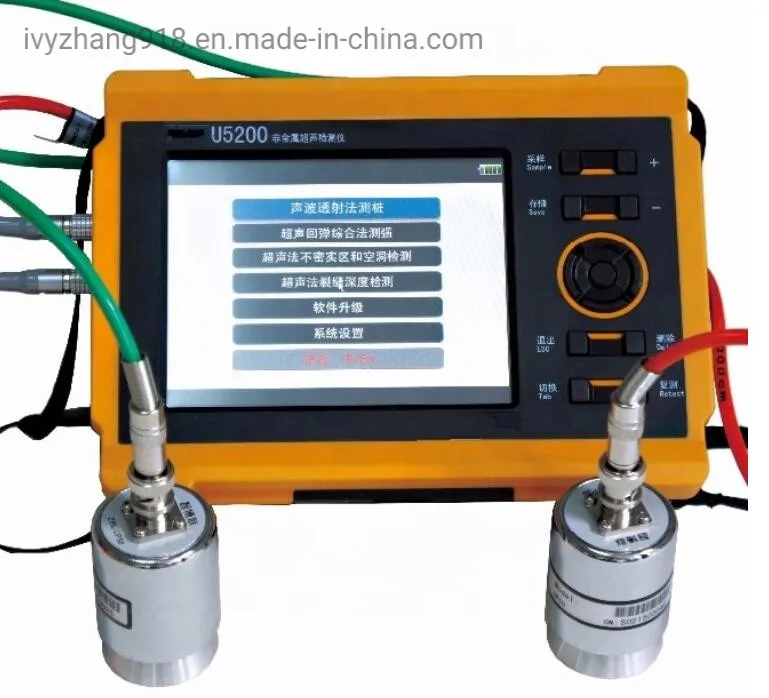

Ultrasonic Detector Pile Internal Defect Basic Pile integrity Tester Ultrasonic Penetration Equipment Foundation Pile Detector Surface Damage Layer Tester

Quick detection of the integrity of foundation pile continuous wall with Ultrasonic Penetration Method;

Testing depth of concrete fractures, quality of combined surface, thickness of surface damage layer,internal defect of steel pipe concrete, empty areas, and cellular empty with Ultrasonic Method;

Testing pressure strength of concrete with Ultrasonic -Test Hummer Method;zmwm06

Testing the mechanical properties of nonmetal materials such as Geological survey, rock, concrete, etc.

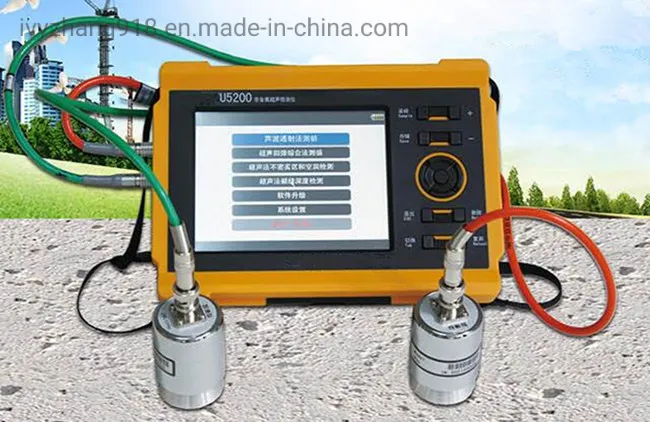

Ultrasonic Detector Pile Internal Defect Basic Pile Integrity Tester Ultrasonic Penetration Equipment Foundation Pile Detector Surface Damage Layer Tester

Features:

Super power emission,Ultra low noise receive,first-wave auto gain control system, the face-test penetration range can reach 10M in undefect concrete;

Accurate and rapid automatic read-in and analysis of acoustic wave transit time and fluctuation range guarantees the reliability and efficiency of the test data, and markedly improves the detection speed;

Real-time display and automatic saving of the plotted graph of pile integrity, the location of test points, the acoustic wave transit time of the first wave, the waveform, the wave range etc., without losing interruption of power supply;

Arbitrarily retest and redisplay of the sampling waveform of every test point. Preventing the error in on-site testing and on-site judgment. Convenient and rapid;

System provide private port for the power supply to radical transducer, convenient,safe;

High-reliablity industrial-grade dedicated control system, high definition, bright, and large-size TFT true color LCD, with stable and reliable performance;

Internal high energy lithium battery, instant charging (no memory), capable of outdoor continuous operation over extended time periods;

Standard USB ports, support U disk;

Small size, light weight (less than 1.8kg ), mobile;

Professional analysis-processing software generates and prints test reports.

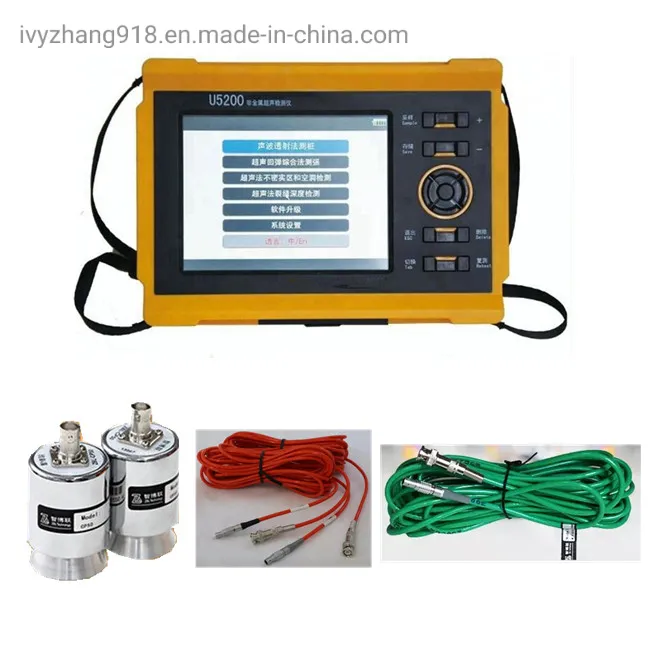

Ultrasonic Detector Pile Internal Defect Basic Pile integrity Tester Ultrasonic Penetration Equipment Foundation Pile Detector Surface Damage Layer Tester

Specification:

Item		Specifications	Item		Specifications
Control Mode		Internal A8 Industrial control board	Screen		5.7inch,high brightness TFT LCD screen
Data storage		Internal	Operation Mode		Touch screen and button
Signal collecting mode		Automatic continuous collection	Channels		1 emitter+2 receiver
Trigger		signal	Sampling interval		0.025μs~1638.4μs adjustable
Acoustic transit time accuracy		0.025μs			±1677.7ms
Dynamic range		154dB	Amplifier bandwidth		3~450kHz
Receiver sensitivity		≤10μv	Gain error		0.5dB
Emission voltage(V)		65,250,500,1000 V adjustable
Data transmission		USB,MiniUsb,Wi-Fi,Bluetooth	Size(mm)		210×149×60
Power	Internal	Built-in lithium battery	Operational environment	Temperature	-10ºC~+40ºC
	External	220V AC/DC		Humidity	<90%RH
Weight		1.36kg(lithinum battery included)	Battery time		>5h
