Product Description
I.Product Description:

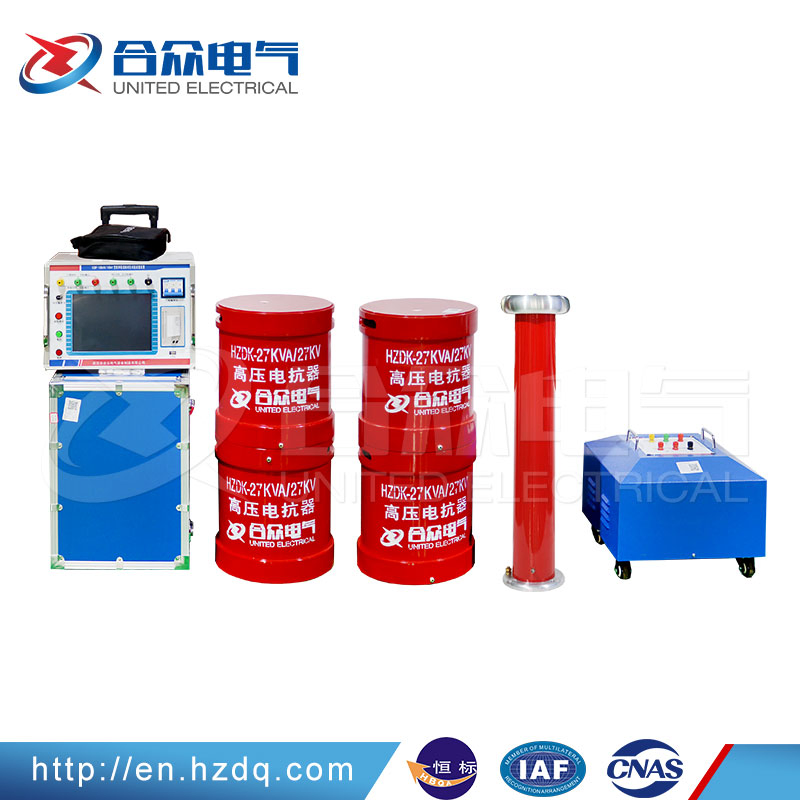

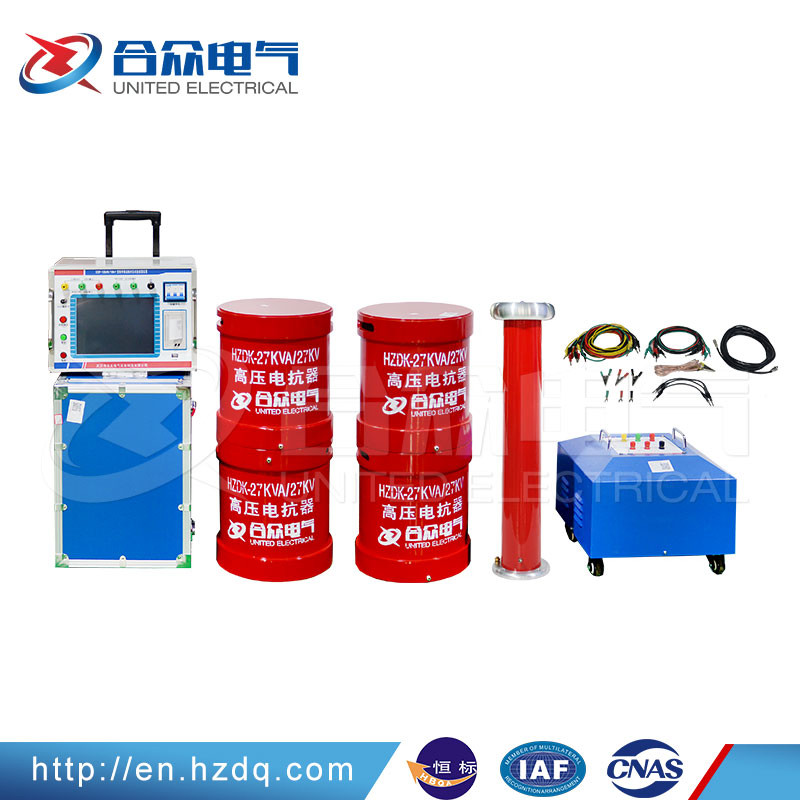

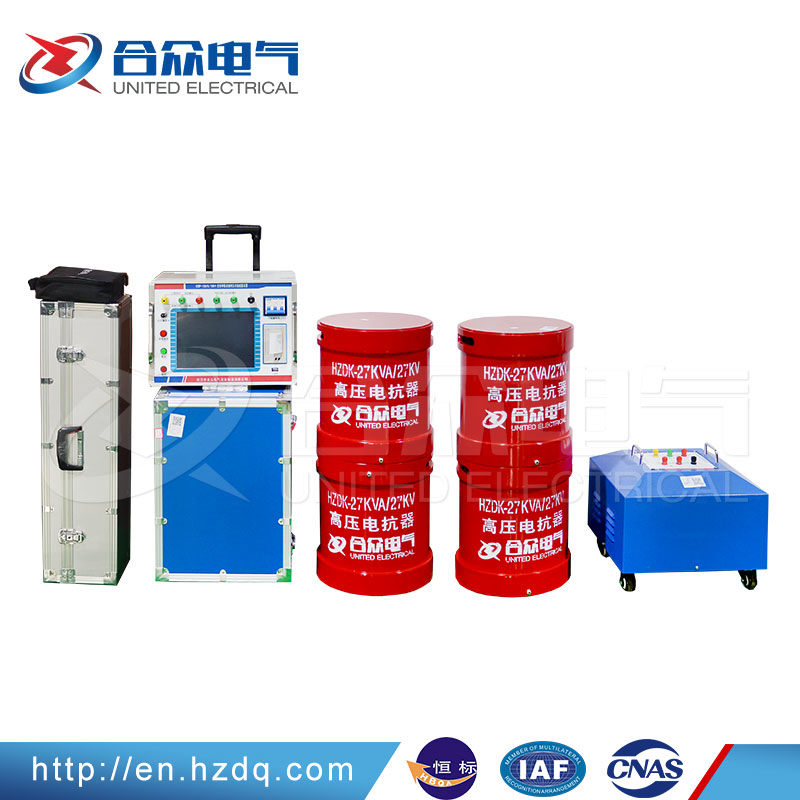

HZBP-BD series variable frequency resonant device is a common primary electrical equipment of substations. It is applied for voltage withstand test of capacitive equipment, such as transformer, GIS system, SF6 switch, CT/PT, insulator, busbar, cable and bushing ect. This device is researched and manufactured according to withstand test regulations of 220KV and blow substations primary electrical equipment. The AC/DC voltage withstand test equipment both need satisfy high voltage, small current and low voltage, large current test condition, and with wide application range. HZBP using the principle of series resonant, is composed by variable frequency power source control box(console), excitation transformer, reactor and capacitive voltage divider,compensating capacitor.
II.Product Features:

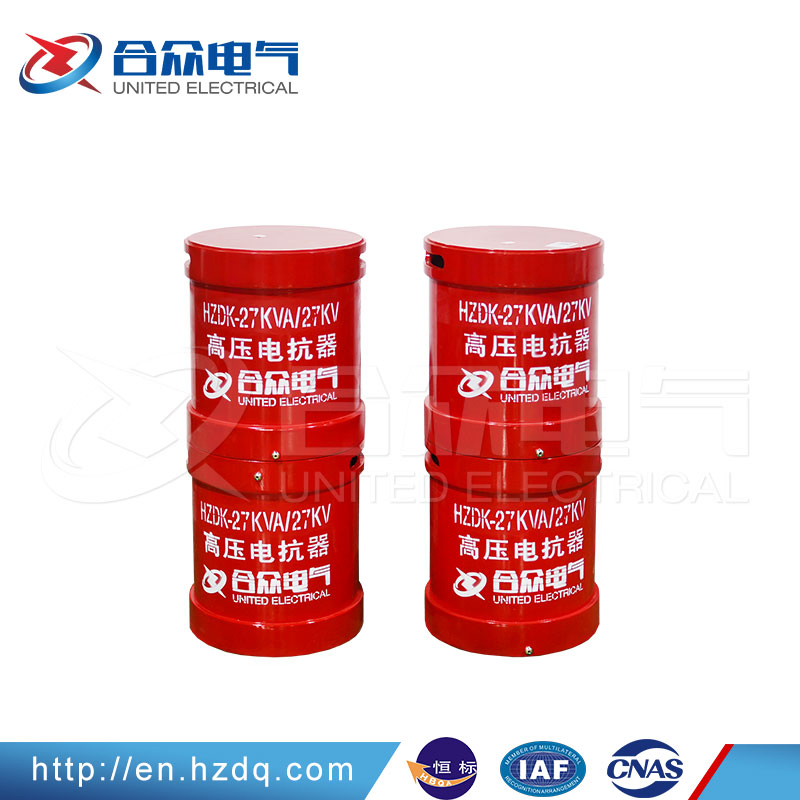

1.It has smaller volume and lighter weight compared with the same voltage grade and capacity reactor. Temperature rises small at the rated load. Dry-type epoxy resin casting with high mechanical strength, good electrical insulating property, nice appearance and reliability.
2.Variable power source control box has large capacity, strong protection function, good output wave, good stability and various working modes that easy to operate. Single phase 220V and three phase 380V input power source are in common use, convenient to take electricity on site.
3.Flexible configuration. Can equip with different types of reactor to satisfy different tested products. To achieve a multi-purpose machine, highly cost effective.
III.Product parameters:
Technique index
Serial products and application
Company Profile:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
Competitive Products
Certifications
Customer Visit
On-site Service
Package and Delivery
HZBP-BD series variable frequency resonant device is a common primary electrical equipment of substations. It is applied for voltage withstand test of capacitive equipment, such as transformer, GIS system, SF6 switch, CT/PT, insulator, busbar, cable and bushing ect. This device is researched and manufactured according to withstand test regulations of 220KV and blow substations primary electrical equipment. The AC/DC voltage withstand test equipment both need satisfy high voltage, small current and low voltage, large current test condition, and with wide application range. HZBP using the principle of series resonant, is composed by variable frequency power source control box(console), excitation transformer, reactor and capacitive voltage divider,compensating capacitor.
II.Product Features:
1.It has smaller volume and lighter weight compared with the same voltage grade and capacity reactor. Temperature rises small at the rated load. Dry-type epoxy resin casting with high mechanical strength, good electrical insulating property, nice appearance and reliability.
2.Variable power source control box has large capacity, strong protection function, good output wave, good stability and various working modes that easy to operate. Single phase 220V and three phase 380V input power source are in common use, convenient to take electricity on site.
3.Flexible configuration. Can equip with different types of reactor to satisfy different tested products. To achieve a multi-purpose machine, highly cost effective.
III.Product parameters:
| Rated Output Voltage | ≤0~1000kV |
| Output Frequency | 30~300Hz |
| Resonate Voltage Waveform | Sine wave, distortion≤1.0% |
| Working Mode | Continuous working |
| Quality Factor | 30~90 |
| Frequency Adjustment Sensitivity | 0.1Hz |
| Instability | <0.05% |
| Power Source | Single phase 220V or three phase 380V±10% |
| Power frequency 50Hz/60Hz±5% |
Serial products and application
| Mode | Application(10kV~500kV transformer substation AC voltage withstand equipment, frequency 30~300Hz) | ||||
| Frequency Power Source | Resonant Reactor | Excitation transformer | Divider | Application | |
| HZBP-BD-50/50/25 | 3kW | 25kV/1A two sets(dry type) | 3kVA(dry type) | 50kV | ≤1000kVA 10kV transformer 10kV switch, busbar, PT, CT ect. 10kV(300mm2) cable≤1.0km |
| HZBP-BD-108/108/27 | 5kW | 27kV/1A four sets(dry type) | 5kVA(dry type) | 110kV | ≤31500kVA 35kV transformer 35kV switch, busbar, PT, CT ect. 10kV(300mm2) cable 2km 35kV(300mm2) cable 0.5km |
| HZBP-BD-200/200/50 | 10kW | 50kV/1A four sets(dry type) | 10kVA(dry type) | 200kV | ≤50000kVA 110kV transformer 110KV GIS, PT, CT ect.(preventive test) 35kV(300mm2) cable ≤1.0km 10kV(300mm2) cable ≤2.0km |
| HZBP-BD-270/270/45 | 15kW | 45kV/1A six sets(dry type) | 15kVA(dry type) | 300kV | ≤50000kVA 110kV transformer 110kV GIS, PT, CT ect. 35kV(300mm2) cable ≤1.2km 10kV(300mm2) cable ≤3.0km |
| HZBP-BD-800/400/50 | 30kW | 50kV/2A eight sets(dry type) 100kV/2A four sets(oil immersed) | 30kVA(dry type) 30kA(oil immersed) | 400kV | ≤80000kVA 220kV transformer ≤50000kVA 110kV transformer 110kV/220kV GIS, PT, CT ect. 35kV(300mm2) cable ≤2.0km 110kV(300mm2) cable ≤0.7km |
| HZBP-BD-1600/800/200 | 60kW | 200kV/2A four sets(oil immersed) | 60kVA(dry type) | 800kV | ≤80000kVA 220kV transformer ≤50000kVA 110kV transformer 500kV GIS, PT, CT ect. 220kV switch, busbar, PT, CT ect. 110kV(400mm2) cable ≤1.5km 220kV(400mm2) cable ≤1.0km |
| Note: can be customized | |||||

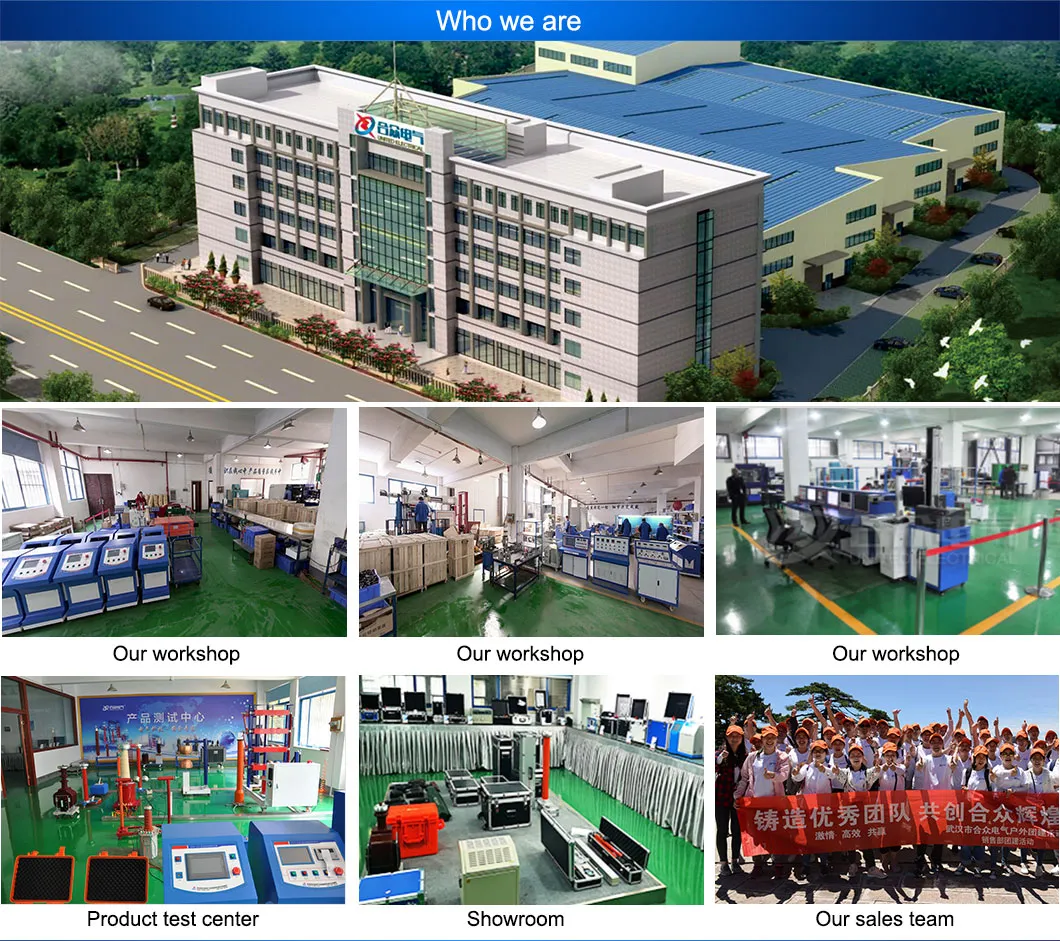

Company Profile:
Wuhan Hezhong Electric Equipment Manufacture Co., Ltd is a high-tech enterprise professionally engaged in R & D, manufacture and marketing of power testing products, instruments, power industry automation systems for 20 years.We export completed set to Korea, Singapore, Vietnam, India, Ecuador, Paraguay, Pakistan, Philippines, Russia, Italy, Austria, Portugal, Chile such as PD test system, impulse voltage generator, temperature rising test system, transformer comprehensive test system, cable fault detect system and varies of instruments for transformer, circuit breaker, switchgear, lightning arrestor, insulator, cable, battery,SF6 gas and so on.
Competitive Products
Certifications
Customer Visit

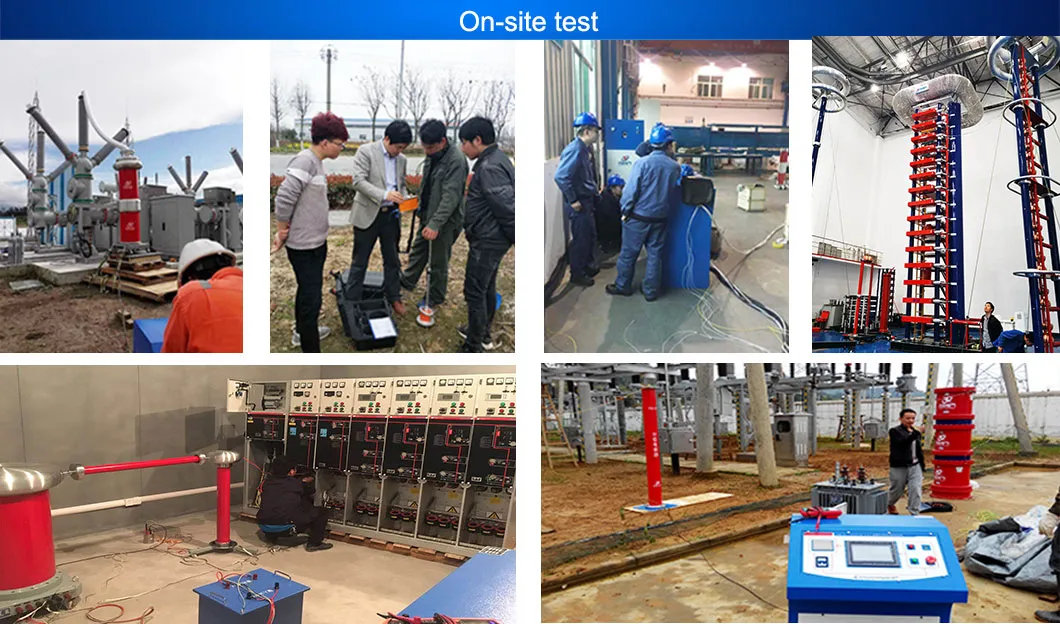

On-site Service
