Washing Machine Cover Impact Resistance Tester for IEC60335-2-7 Clause 21.101.1 Testing Equipment
Washing Machine Cover Impact Resistance TesterProduct details:ZLT-BC5To test the impact resistance of cover loaded from the top for spin extractor and washing machine, according to IEC60335-2-4 clause 21.101.IEC60335-2-7 clause 21.101.1 and other standard clause.Standard Outfit:1 Impact element, wit......
Send Inquiry
Product Description

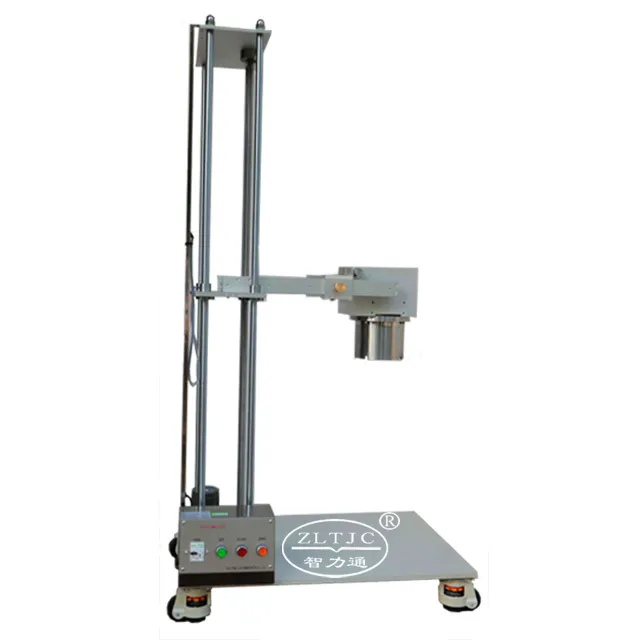

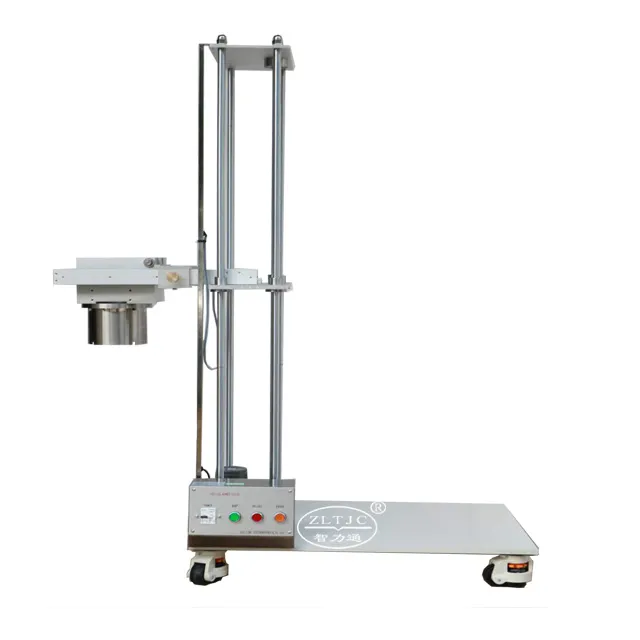

Washing Machine Cover Impact Resistance Tester
Product details:ZLT-BC5
To test the impact resistance of cover loaded from the top for spin extractor and washing machine, according to IEC60335-2-4 clause 21.101.IEC60335-2-7 clause 21.101.1 and other standard clause.
Standard Outfit:
1 Impact element, with a rubber hemisphere having a diameter of 70mm and a cylinder having a mass of 20kg, the dropped height of 10cm.
1 basic frame, height approx 1000mm.
1 the release mechanism, may be on the left or on the right,based on the sample size.
1 electric drive motor, to move the impact element up or down ,and release.
Power supply:A.C 220V 50Hz,other voltages and frequencies on request.
Product details:ZLT-BC5
To test the impact resistance of cover loaded from the top for spin extractor and washing machine, according to IEC60335-2-4 clause 21.101.IEC60335-2-7 clause 21.101.1 and other standard clause.
Standard Outfit:
1 Impact element, with a rubber hemisphere having a diameter of 70mm and a cylinder having a mass of 20kg, the dropped height of 10cm.
1 basic frame, height approx 1000mm.
1 the release mechanism, may be on the left or on the right,based on the sample size.
1 electric drive motor, to move the impact element up or down ,and release.
Power supply:A.C 220V 50Hz,other voltages and frequencies on request.
