Waw Series Hydraulic Universal Testing Machine Utm

Product Description

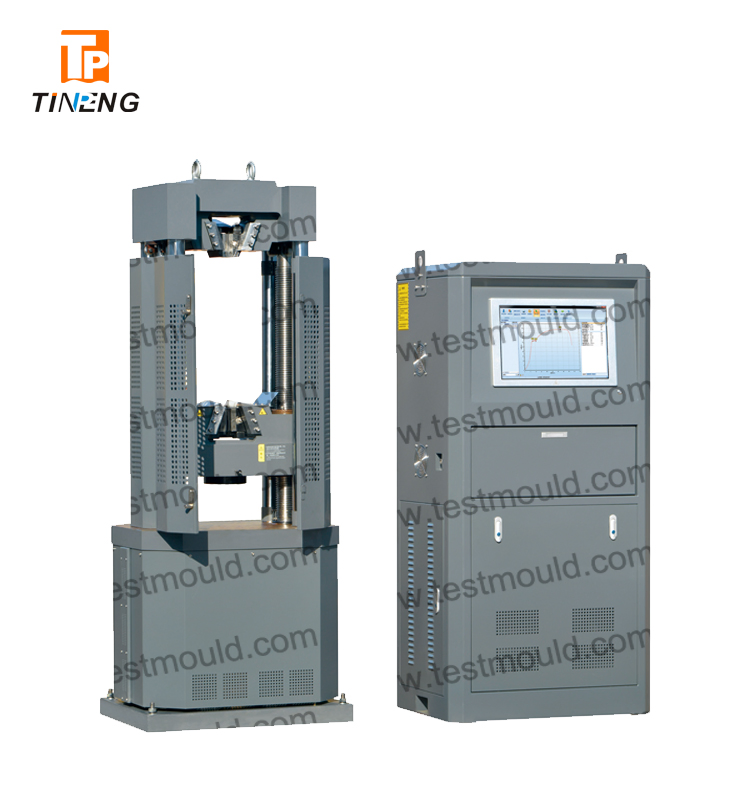

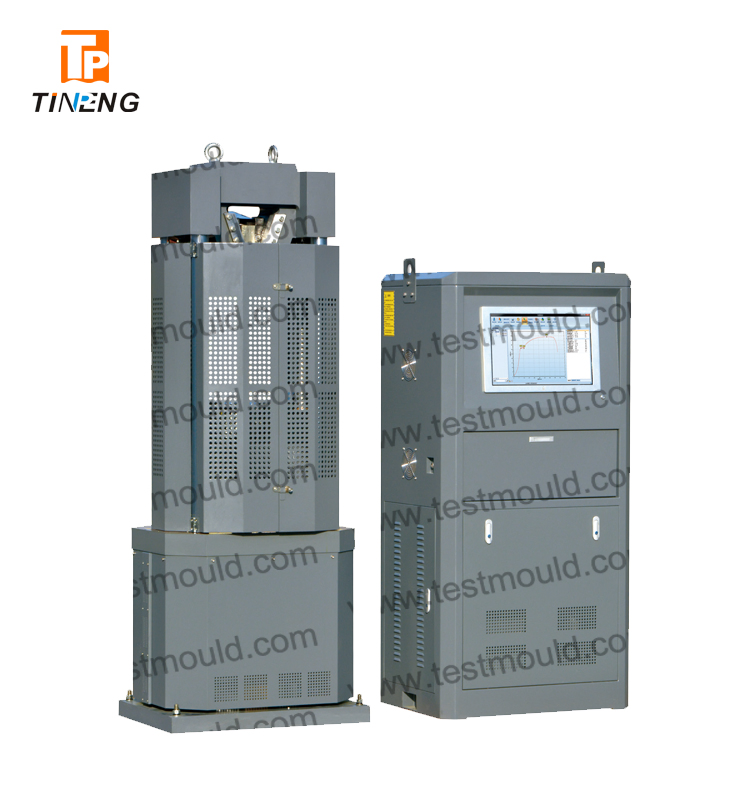

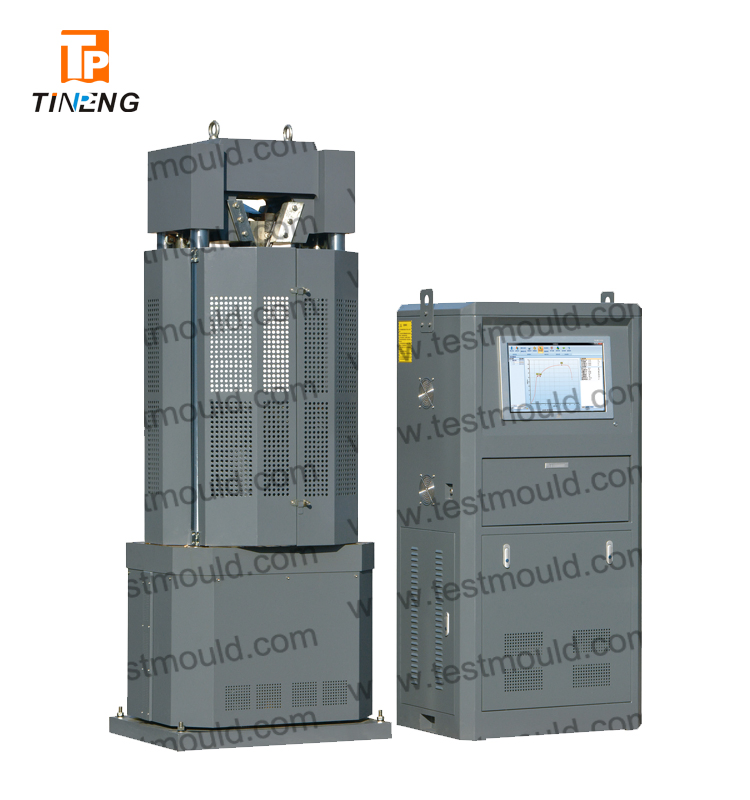

WAW Series Hydraulic Universal Testing Machine UTM

Universal Testing Machine have a wide range of applications. A number of materials, metals in different form and shapes can be tested for variety of tests like Tension, Compression, Transverse, Bend, Shear, Brine Hardness etc. Special attachments are also available for testing of Flat Belts, Chain Links, Wire Ropes etc.

Software:
TestMaster3 is the latest testing and control software launched by our company and applicable to Electric-Type Universal Testing Machine, Electro Hydraulic Servo Universal Testing Machine and Hydraulic OSD Universal Testing Machine and other types extended from the above three. The software can be used for regular testing including drawing, compressing, curving, cutting and twisting all materials (metal, rubber, plastic, cement concrete, rock and compound materials, etc.).
It has high expansibility and can be expanded for special machine types, special materials and special testing.
Support test analysis, display feature points for single curve, support on-line modification and multiple curves comparison within groups.
Support single and group printing. Report templates can be separately setup.
The sensor can be calibrated / verified by two ways manually, semi-automatic or full-automatic way.

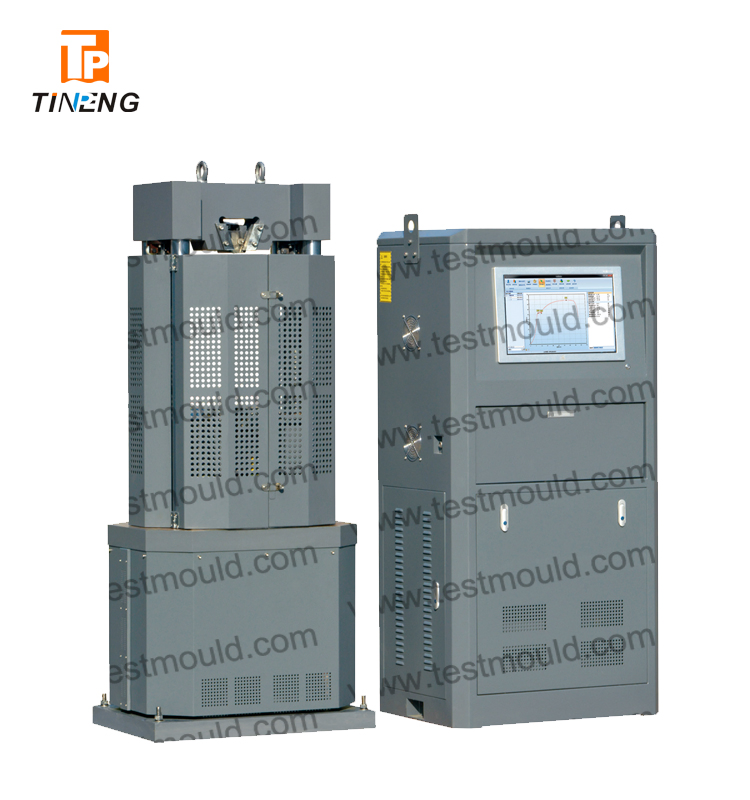

Waw Series Hydraulic Universal Testing Machine Utm

Features:
1. Dual-test space design, under-cylinder, four-column-double-screw frame structure, compact structure;
2. Hydraulic clamping, don't skip, and can be increased special fixture with the shoulder, thread, strand;
3. Durable chrome-plated column for easy cleaning and a long-lasting-life;
4. 12v Hand operation box makes the operation more convenient and flexible;
5. High-precision load cell directly measures force, strong resistance to lateral and impact;
6. By using high pressure internal gear pump, the noise is less than 60 db under full load;
7. The hydraulic system uses pressure servo technology, the system pressure always follow up with the working pressure, and thus more energy saving;
8. While computer-controlled, with manual operation so that customers have more choices to use;
9. With hardware and software overload protection;
10. Advanced and reliable PCI bus technology to improve the speed of data acquisition, control signal response and control accuracy.

Code	WAW-100B	WAW-300B	WAW-600B	WAW-1000B
Max load capacity(kN):	100	300	600	1000
Structure type	Underneath oil cylinder, Four stand column, double screw, Protect cover, Coil spring buffer device
Accuracy class	Class 1(0.5)
Test force range	1%-100% F.S
Test force accuracy	±1%(±0.5%)
Measuring range of extension	1%-100% F.S
Extension accuracy	±1%(±0.5%)
Displacement accuracy	±1%
Displacement resolution	0.001mm
Relative error of stress-controlled velocity	±2%(±1%)
Speed setting accuracy	±1%(±0.5%)
Adjusting range of strain-controlled velocity	0.00025/s-0.0025/s
Relative of force/extension/displacement-control	±2%(±1%)
Range of force/extension/displacement-control	0.3%-100% F.S
Relative error of force/extension/displacement-control	≤1%
Maximum speed of sentre sill (mm/min)	320
Compression space(mm)	500	600	600	600
Tensile space (mm)	600	700	700	700
Piston stroke (mm)	200	200	200	200
Diameter of round specimen (mm)	Dia. 6-22	Dia.10-32	Dia.13-40	Dia. 14-45
Thickness of flat specimen (mm)	0-15	0-20	0-20	0-40
Maximum distance of bending test (mm)	300	300	300	300
Size of compression plates(mm)	Dia.110	Dia. 150	Dia. 200	Dia. 225
Dimension (load frame mm)	800×620×1850	800×620×1900	800×620×2000	900×700×2300
Dimension (control console mm)	800×600×1600
Power	380V, 50Hz, 2.2kW
Weight (load frame kg)	300	300	300	300
Weight (control console kg)	1450	1600	1900	2600
