Product Description

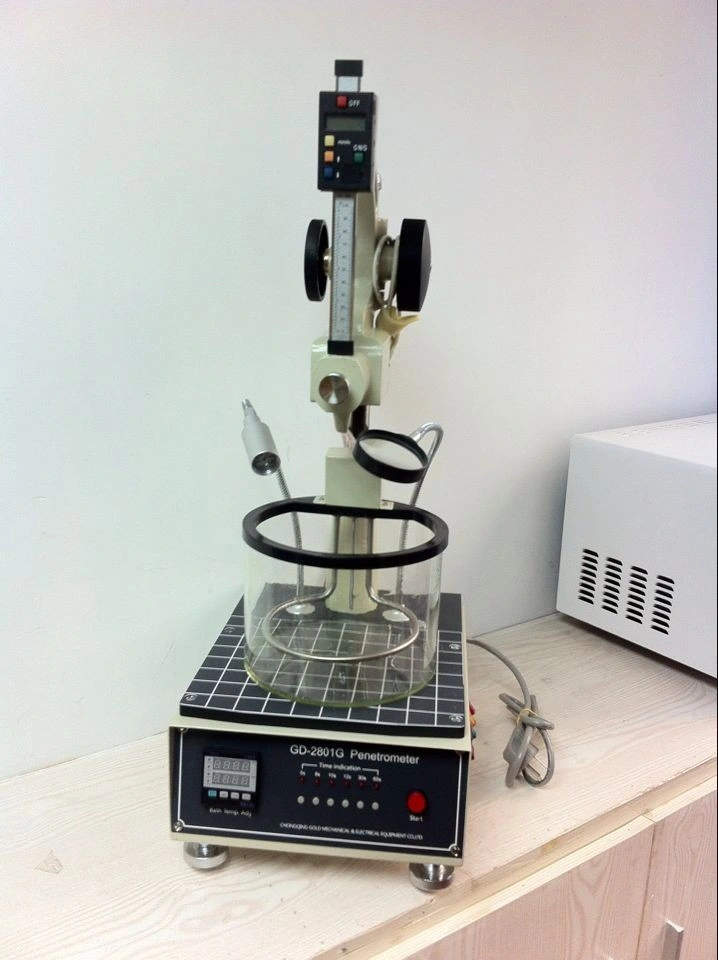

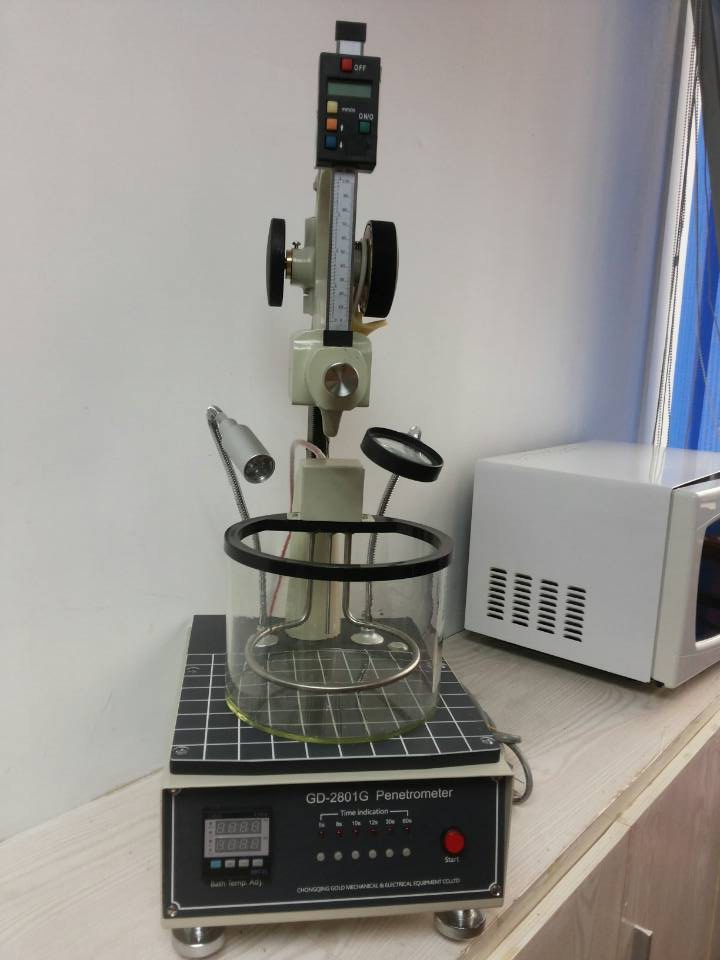

Wax Penetration Test Apparatus with Wax Standard Needle

Application:
GD-2801G Penetrometer is designed and made as per ASTM D1321 standard. It is used to do the penetration test for wax with wax standard needle.
Wax Penetration Test Apparatus with Wax Standard Needle

Features:

1. The needle penetration of wax is expressed as the depth that a standard needle of 100 g vertically penetrates into a wax sample without any measurable friction in 5 s at 25 ºC.

2. The test temperature for wax penetration is 25 ºC in general.

3. Each wax penetration is 0.1 mm. It is directly shown on display.

Technical parameters:

Timing selection	5, 8, 10, 12, 30 or 60 s
Timing error	less than ±0.1 s
Penetration accuracy	±0.1 penetration
Maximum penetration	600 penetrations
Standard needle	2.5±0.05 g
Constant temperature bath	made of harden glass
Mold	25×32×3mm, a brass cylinder
Brass board	65×40×6.5mm
Heating power	220 W

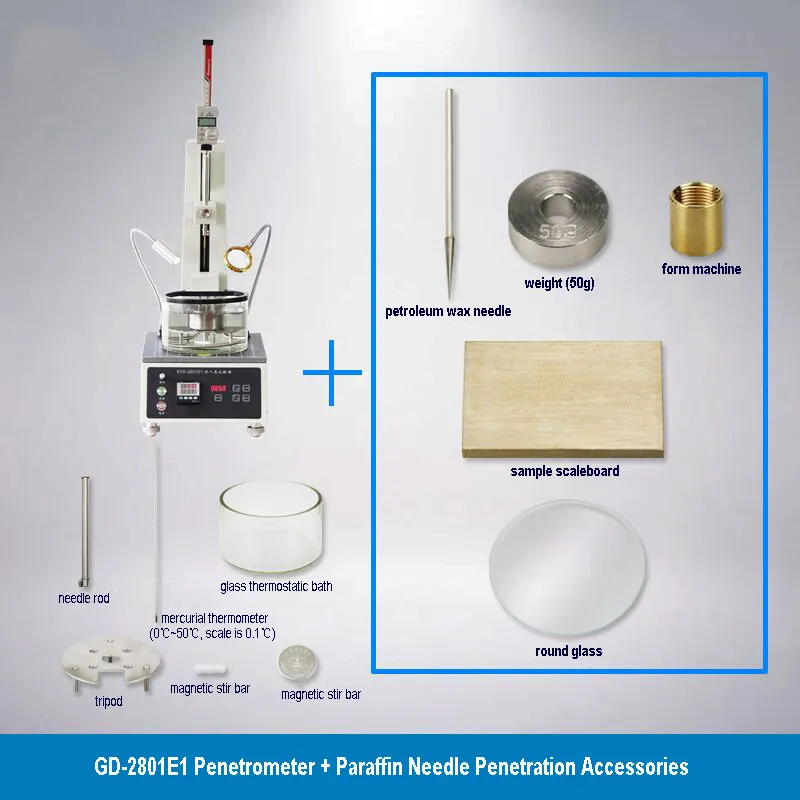

Related products:

Model	GD-2801C	GD-2801G	GD-2801E1	GD-2801F	GD-2801I
Max.Penetration	600	600	600	600	600
Resolution	0.1mm	0.1mm	0.1mm	0.1mm	0.1mm
Timing Control	5,8,10,12,30,60s	5,8,10,12,30,60s	50,60s	50,60s	0~60s
Temp. Control	Automatic	Automatic	Automatic	Automatic	Automatic
Test Samples	Oil	Wax	Asphalt	Asphalt	Asphalt
Type	Common	Multifuction	Common	Special	Full Function
With Water Bath	Yes	Yes	Yes	Yes, low temp.	Yes, low temp.
