Product Description

General Information

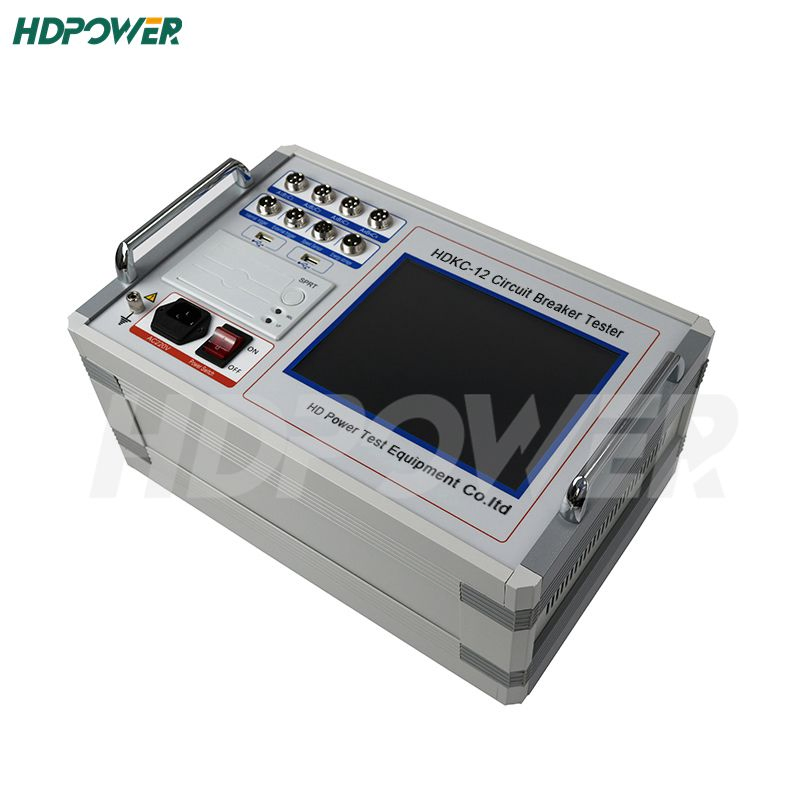

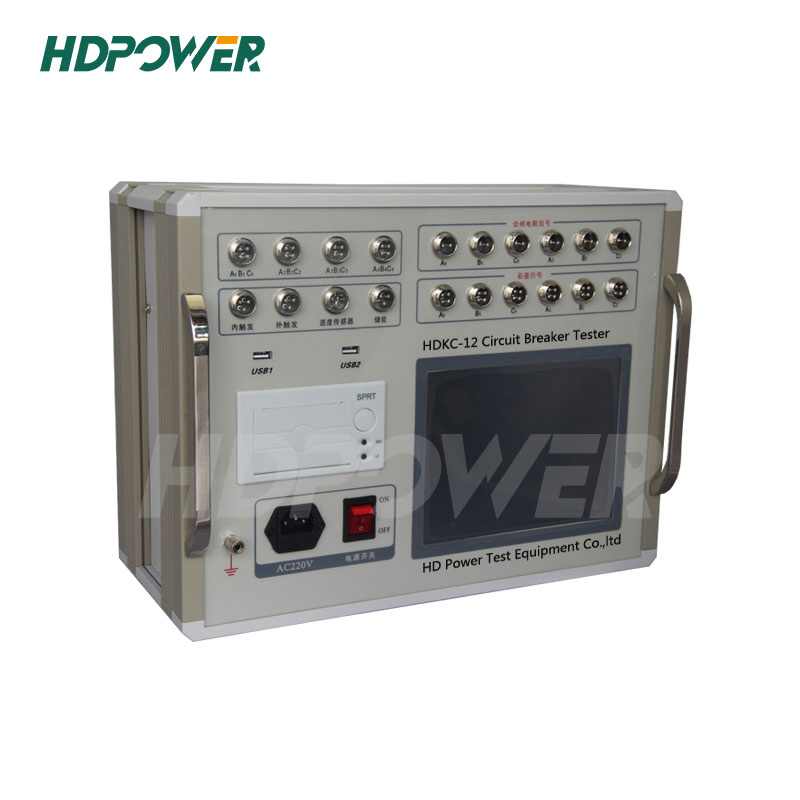

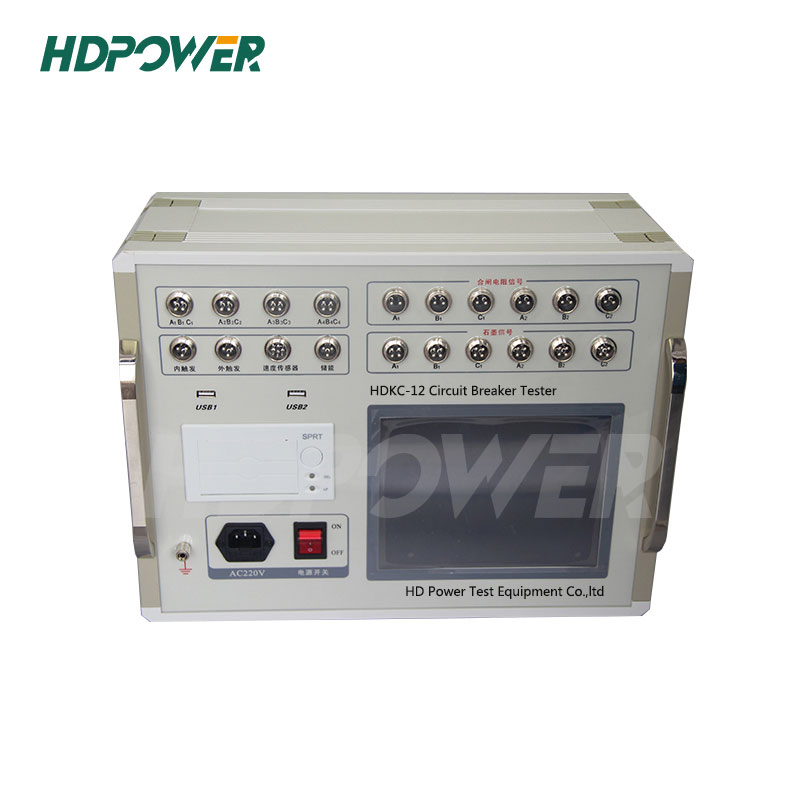

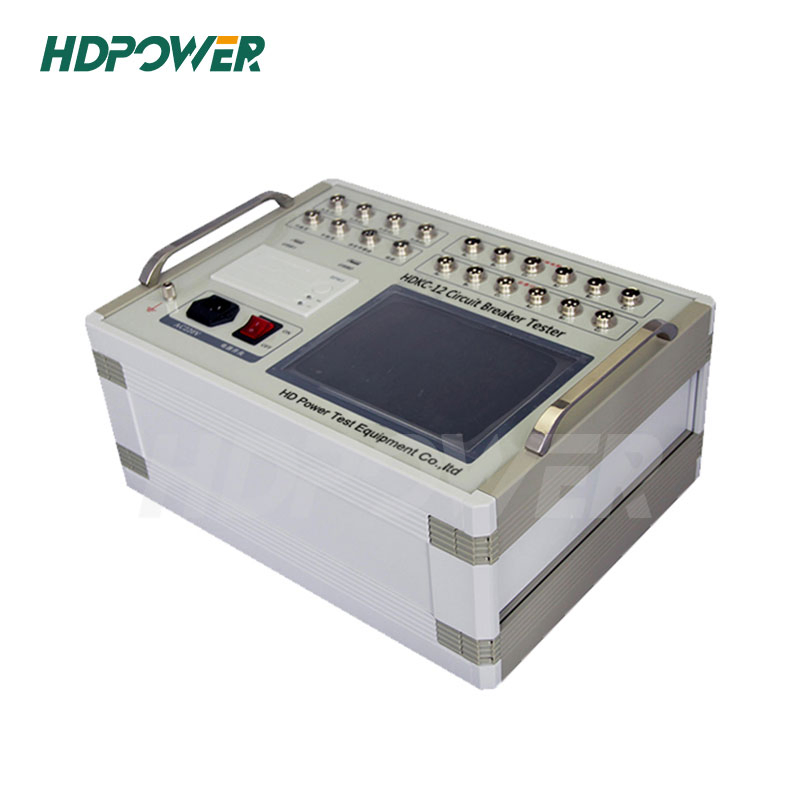

HDKC-12 Circuit Breaker Tester is applied to accurately test the dynamic characteristics parameter of high voltage circuit breaker such as Oil circuit breaker (bulk-oil-volume breaker, low oil circuit breaker), SF6 circuit breaker, vacuum circuit breaker. It is an ideal test equipment for test circuit breaker at large power companies, which is easy to connect and operate for testing at below 500kv station .

Features

Automatically identity open and close status avoiding error operation .
With 12 independent fractures, it is easy to inspect the connection, detect and tip the state of fractures .
Record 100 groups measurement data.
320X240 LCD with menu interface, it is easy operation .
Powerful graphical analysis function to display wave and measurement data
It is built-in the delay protection function , which will cut off coil voltage automatically after circuit breaker action to protect the circuit breaker and test instrument. Alone open and close control unit can proceed open test and close test . It will not affect the operate if one of control loop is error .
It can proceed automatic and manual open/close test .
Re-close test, close-open test, open-close test and open-open test
Vacuum contactor( uni-coil)parameter measurement.
Automatic aging test of circuit breaker(lift-time test)

Specifications

Time measurement: Fracture 12

                    Open (Close) time
Open(Close)same phase no- synchronism
Open(Close)phase to phase no-synchronism
Close(Open)bounce time(bounce numbers)
Measurement range: 0.01ms~10000ms
Accuracy: 0.1%±2 characters within 1ms~100ms
                             0.5%±2 characters over 100ms
Speed measurement: Open(Close) speed
                    Average speed for set period of time (distance or angle range)
2) Speed measurement range: 1mm sensor 0.01~25.00m/s,
                             0.1mm sensor 0.001~2.50m/s
                             360° angle sensor 0.01~25.00m/s
                             Universal sensor:0.01~10.00m/s
3) Travel measurement: Moving contact travel ( travel)
Contract travel(open distance)
Over-travel
4. Sensor measurement range: linear displacement sensor 50mm, resolution: 0.1mm, travel: 0.1~50mm;
                            linear displacement sensor 300mm, resolution: 0.1mm, travel :10~300mm(optional);
                            linear displacement sensor 500mm, resolution: 1mm, travel: 10~500mm(optional);
                            360° line sensor: 360°,resolution: 0.25, travel: 1mm~1000mm
5. current measurement range:0-15A,resolution:0.01A, max coil current value.
6. Display screen: 320×240 LCD, contrast adjustable
7. Data storage:100 groups of measuring data
8. Printer: High speed thermal printer
9. Apparatus power supply: AC/DC 220V ± 10%;50Hz ± 2%
10. DC power supply: output voltage: 25~265V continuously adjustable, output current:≤ 15A( short time)
11. Main unit size: 360×250×140mm
12. Operational environment: -10ºC~+50ºC
13. Relative humidity: ≤90%
