Wireless Type Digital IR Transmission Meter
Guangzhou Amittari instruments Co., LTD. specialize in manufacturing coating thickness gauge, ultrasonic thickness gauge, hardness tester, surface roughness tester, vibration meter, gloss meter, whiteness meter, reflectance meter, tint meter, lux meter, stroboscope, tachometer moisture meter, tensio......
Send Inquiry
Product Description
Product Description
The Window Tint Meter is applicable to measure the transmittance of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet, sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).
Product Feature

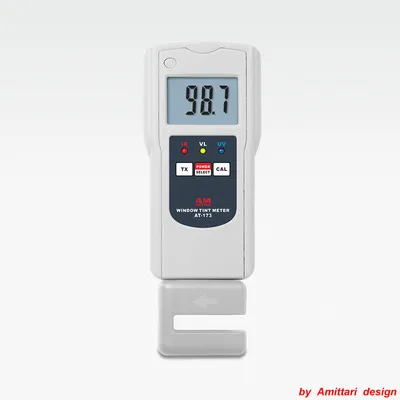

* This Window Tint Meter is a hand held device that mea- sures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Can measure the transmittance of ultraviolet light, visible light, and infrared light.
* It has a rotatable sensor, which can meet the needs of more different measurement angles.
* One key calibration, easy to use.
* Solid structure, exquisite, easy to carry, small volume, light weight.
* Use USB data output to connect with PC.
* Provide Bluetooth ™ data output choice
Product Parameters
| Measuring range | 0 to 100% Light Transmission |
| Resolution | 0.1 |
| Accuracy | ±2% |
| Light Source | LED |
| Sample Thickness | Less than 10 mm/0.4inch |
| Ultraviolet Light Wavelength | 380nm |
| Visible Light Wavelength | 380-760nm |
| Infrared Light Wavelength | central wavelength 950nm |
| Measurement mode | Visible light transmittance measurement, Ultraviolet light transmittance measurement, Infrared light transmittance measurement, Light transmittance measurement cycle. |
| Sensor rotation angle | 0-340°(do not rotate the sensor more than 340°, otherwise it will damage the sensor) |
| Lamp Life | 10 Years |
| Operating Conditions | Temperature : 0~50°C |
| Humidity: below 90% RH | |
| Power Supply | 4x1.5v Um-4 Battery |
| Size | 184x70x30mm |
| Weight | 160 g (Not Including batteries) |
Product Accessories
Standard Accessories | Main Unit |
| Carrying Case | |
| Operation Manual | |
| Optional Accessories | USB Data Output |
| Bluetooth™ Data Output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
