Lab Equipment Zjsj-008 Compressed Air Sampler Collector
Lab equipment ZJSJ-008 Compressed air sampler collectorAn overview of the compressed air collector zjsj-008 zhejiang su net relief valveAccording to the specifications of the new GMP, the cleanliness of the compressed air and the microorganism need to be determined.Zjsj-008 ADAPTS to the 30-150 psi ......
Send Inquiry
Product Description

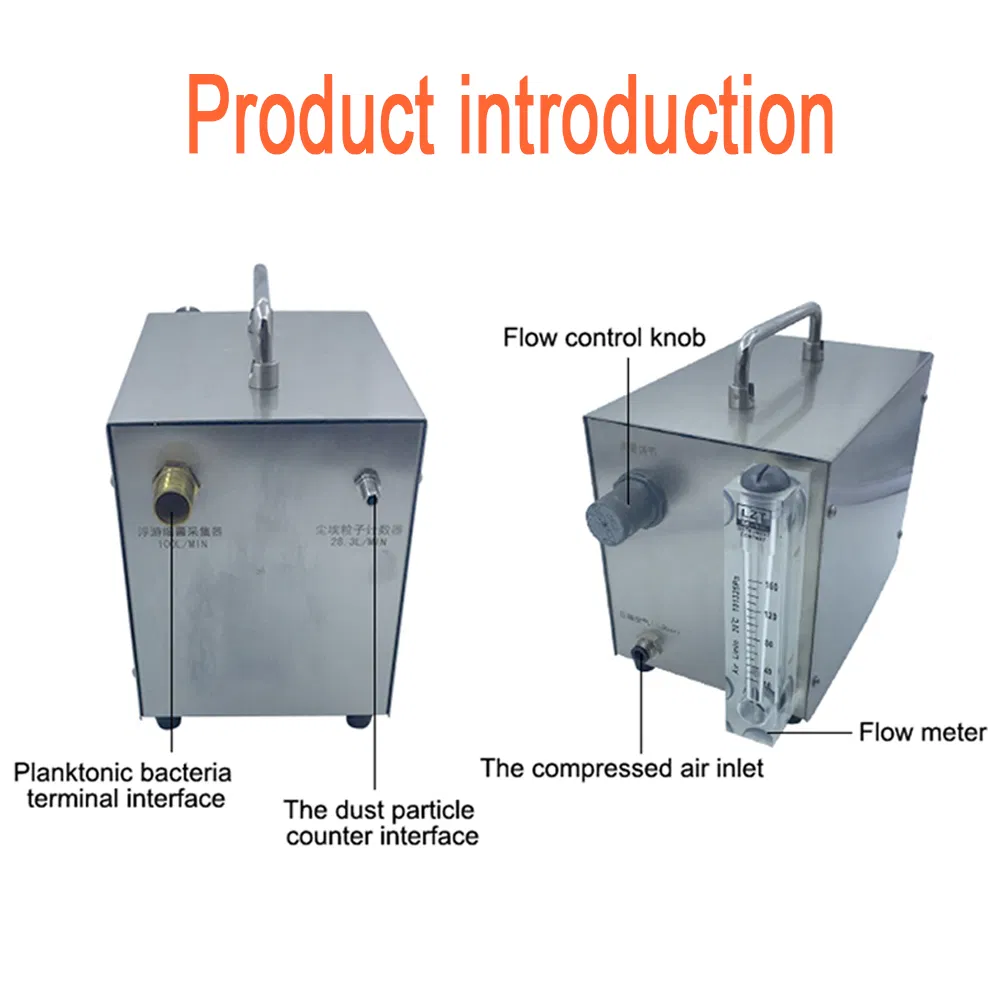

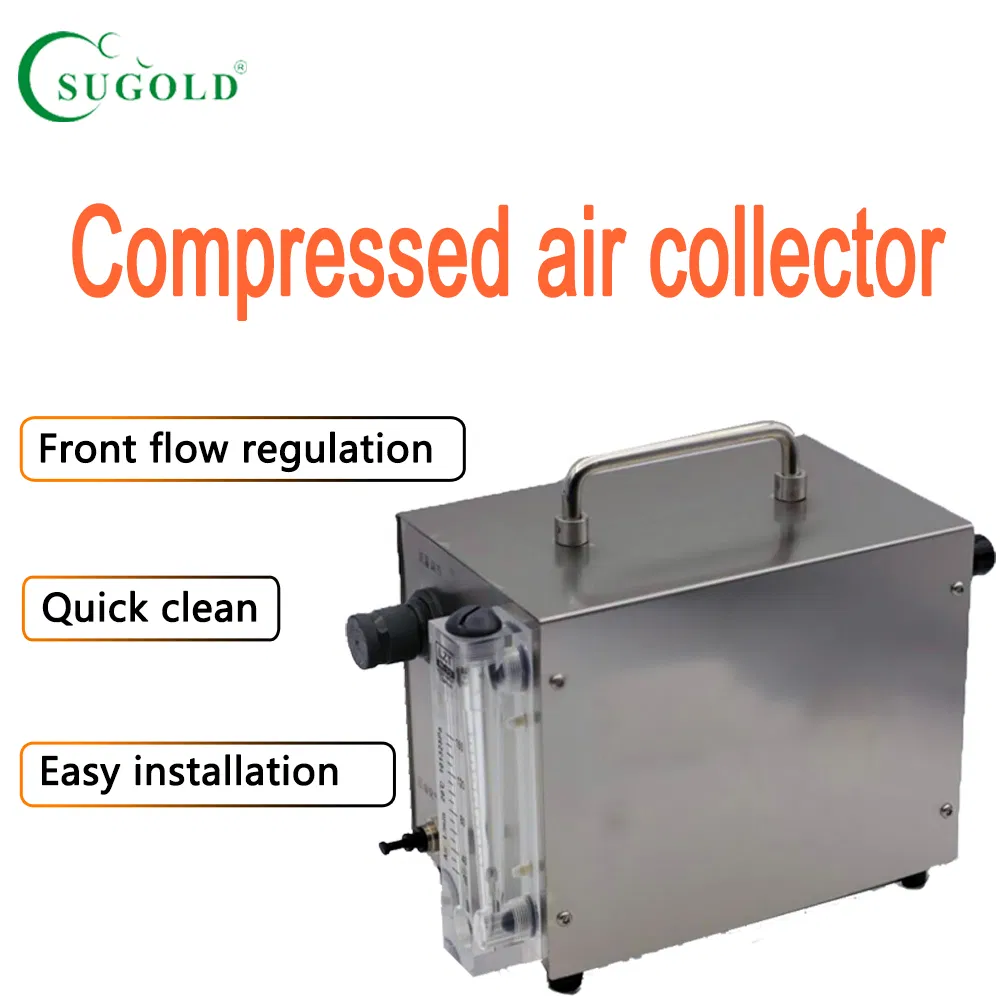

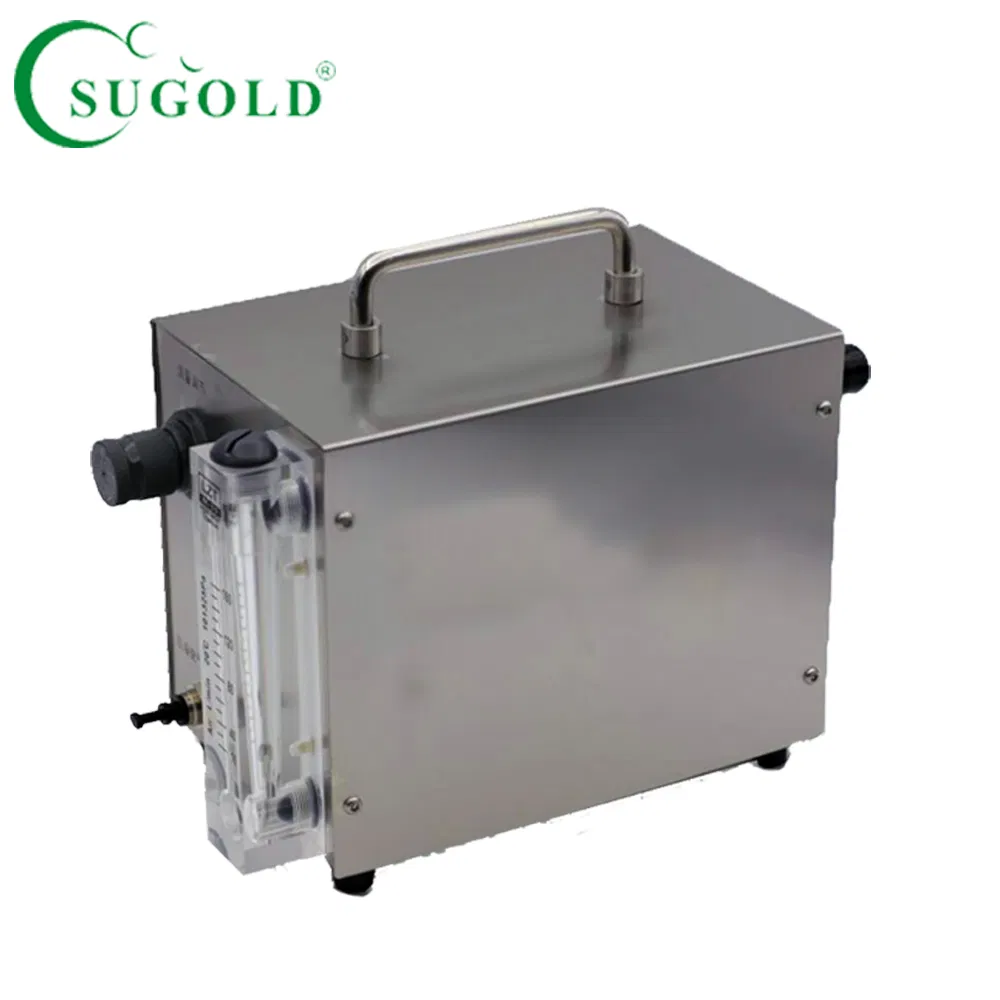

Lab equipment ZJSJ-008 Compressed air sampler collector
An overview of the compressed air collector zjsj-008 zhejiang su net relief valve
According to the specifications of the new GMP, the cleanliness of the compressed air and the microorganism need to be determined.
Zjsj-008 ADAPTS to the 30-150 psi pressure range,
A, cleanliness: the range of particle size: greater than 0.3 um, flow: 28.3 L/min, 50L/min, 100L/min.
B, microbiological detection: 50L/min, 100L/min phytoplankton sampler.
In the sampling process, the input gas is not wasted, and 100% of the input gas is applied to the process sampling.
The products are widely applicable and safe and reliable.
The core components are imported from the original

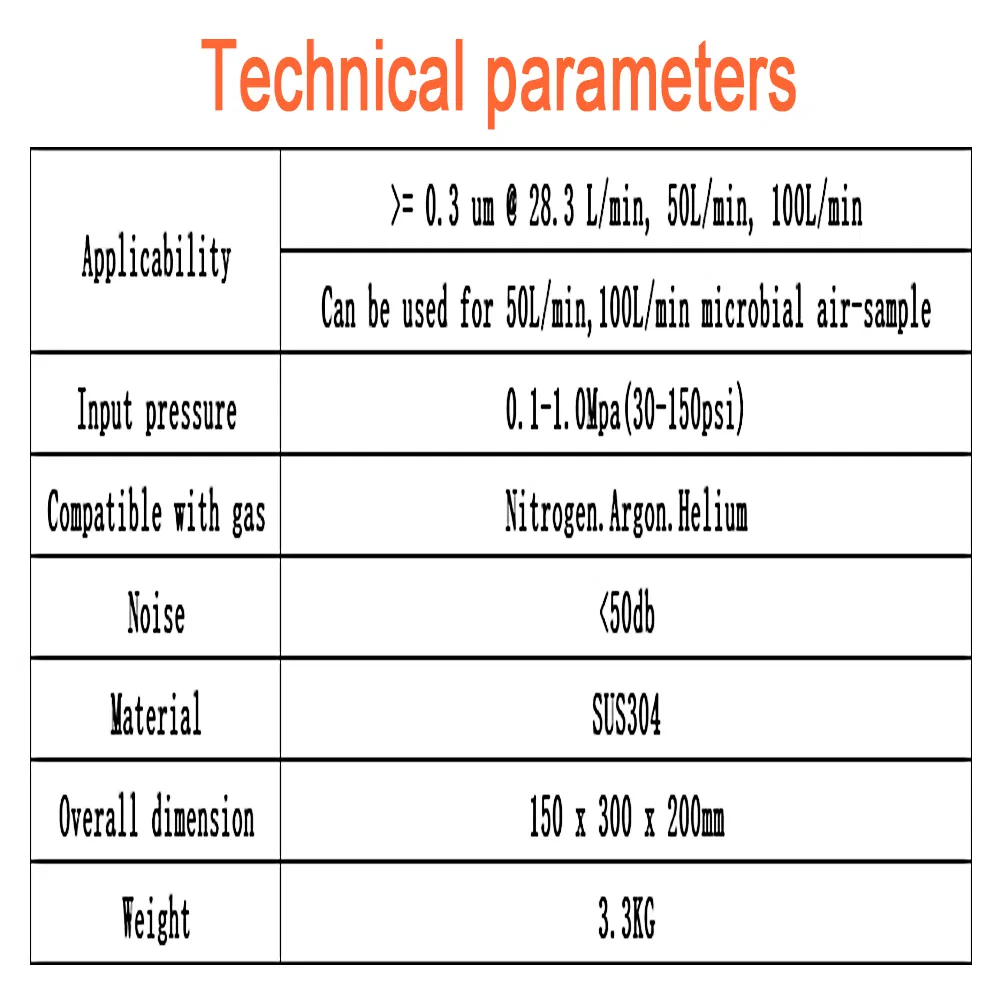

Two, compressed air collector zjsj-008 zhejiang su net relief valve parameters
Applicability: A, greater than or equal to 0.3 um @ 28.3 L/min, 50L/min, 100L/min; B can be used for 50L/min, 100L/min plankton sampler;
Input pressure: 0.1-1.0 MPa (30-150 psi)
Compatible gas: helium argon helium gas
Noise range: less than 50 db
Shell material: SUS304
Size: 150X300X200 (mm)
Weight: 3.3 Kg
Three, compressed air collector zjsj-008 zhejiang su net relief valve characteristics
The installation is easy to initiate the preset flow control and the easy and quick cleaning of the operation
An overview of the compressed air collector zjsj-008 zhejiang su net relief valve
According to the specifications of the new GMP, the cleanliness of the compressed air and the microorganism need to be determined.
Zjsj-008 ADAPTS to the 30-150 psi pressure range,
A, cleanliness: the range of particle size: greater than 0.3 um, flow: 28.3 L/min, 50L/min, 100L/min.
B, microbiological detection: 50L/min, 100L/min phytoplankton sampler.
In the sampling process, the input gas is not wasted, and 100% of the input gas is applied to the process sampling.
The products are widely applicable and safe and reliable.
The core components are imported from the original
Two, compressed air collector zjsj-008 zhejiang su net relief valve parameters
Applicability: A, greater than or equal to 0.3 um @ 28.3 L/min, 50L/min, 100L/min; B can be used for 50L/min, 100L/min plankton sampler;
Input pressure: 0.1-1.0 MPa (30-150 psi)
Compatible gas: helium argon helium gas
Noise range: less than 50 db
Shell material: SUS304
Size: 150X300X200 (mm)
Weight: 3.3 Kg
Three, compressed air collector zjsj-008 zhejiang su net relief valve characteristics
The installation is easy to initiate the preset flow control and the easy and quick cleaning of the operation
