Home > Products > Gas Analyzer > Multifunctional Ammonia Portable Gas Analyzer with Temperature&Humidity Detection
Multifunctional Ammonia Portable Gas Analyzer with Temperature&Humidity Detection
>>> Features:>>> Specifications: Product type:Portable,NH3Detection Range:0-5000ppmResolution:1ppmScalable gas sensor :User can customize up to 5 gas sensors in any combination,please refer to the sensor parametersDust sensor(optional) :Laser dust sensor (0.5um,1.0um,2.5um,10um)Te......
Send Inquiry
Product Description
>>> Features:
>>> Specifications:
>>> Packaging and Shipping:

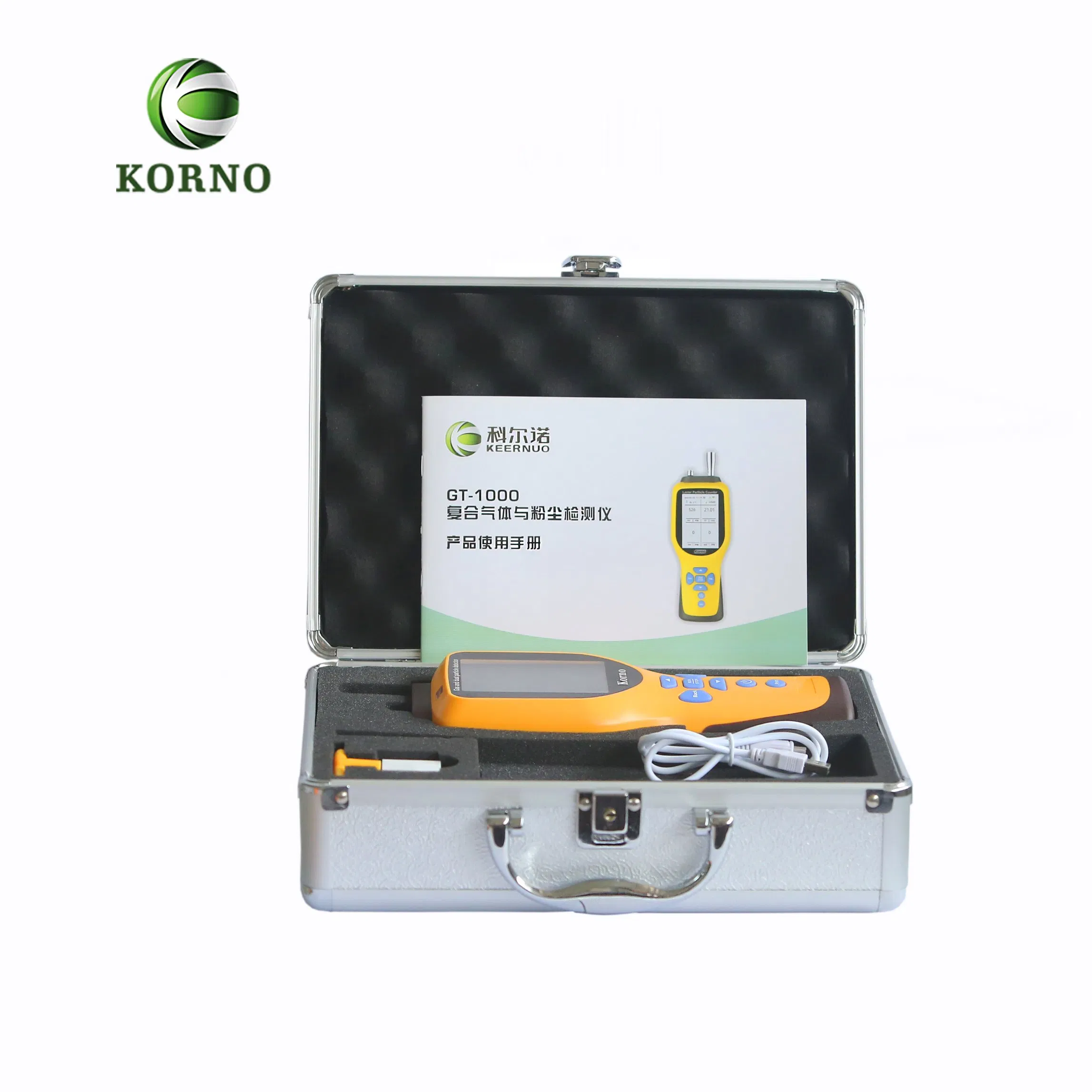

1:Gas detector
2:Portable aluminum Case
3:User manual
4:USB charger+Data cable(Andrews Interface)
5:Calibration cover
>>> F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
>>> Contact US:
>>> Specifications:
| Product type: | Portable,NH3 | |||
| Detection Range: | 0-5000ppm | |||
| Resolution: | 1ppm | |||
| Scalable gas sensor : | User can customize up to 5 gas sensors in any combination,please refer to the sensor parameters | |||
| Dust sensor(optional) : | Laser dust sensor (0.5um,1.0um,2.5um,10um) | |||
| Temperature and humidity: | Temperature detection range:-40 ~ 120ºC Humidity detection range:0-100%RH | |||
| Detection pattern: | Pumping,the flow rate is adjustable. | |||
| Detection Accuracy: | ≤±3%F.S | Linearity Error: | ≤±1%F.S | |
| Reaction Time: | ≤20 S(T90) | Zero drift: | ≤±1%(F.S/Year) | |
| Detection Method: | Real-time detection mode and timing detection,Cycle detection mode mode can be switch freely | |||
| Storage Method: | Automatically saving and manually saving is available, Up to 30,800 group data ,user can view history data on the display. | |||
| Explosion Proof Sign: | Exdll CT4 (IA) | Shell Case material: | ABS+PC | |
| IP rating: | IP66 | Operating Temperature: | -30 ~ 60ºC(-22~144ºF) | |
| Power: | 4000mA high capacity polymer rechargeable battery | Relative Humidity: | ≤90%RH,Non-condensing | |
| Dimensions / Weight: | 220*88*55 mm(L×W×H) 0.5 Kg(net weight) | Operating Pressure: | -30Kpa ~ 100Kpa | |
| Standard Accessories: | -Internal dust filter -Portable aluminum Case -User manual -Certification -USB charger+Data cable -Calibration cover | |||
| Optional Accessories: | -Micro printer&connected cable -Wireless transmitter&wireless receiver -Vapor filter(external) -Hose -Sampling handle(stainless steel ,approx 60cm) | |||
>>> Packaging and Shipping:
1:Gas detector
2:Portable aluminum Case
3:User manual
4:USB charger+Data cable(Andrews Interface)
5:Calibration cover
>>> F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.
Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.All the finished products will be 100% inspection and all the non-conforming units will be clearly marked and segregated to repaired and re-inspection.
Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
>>> Contact US:
