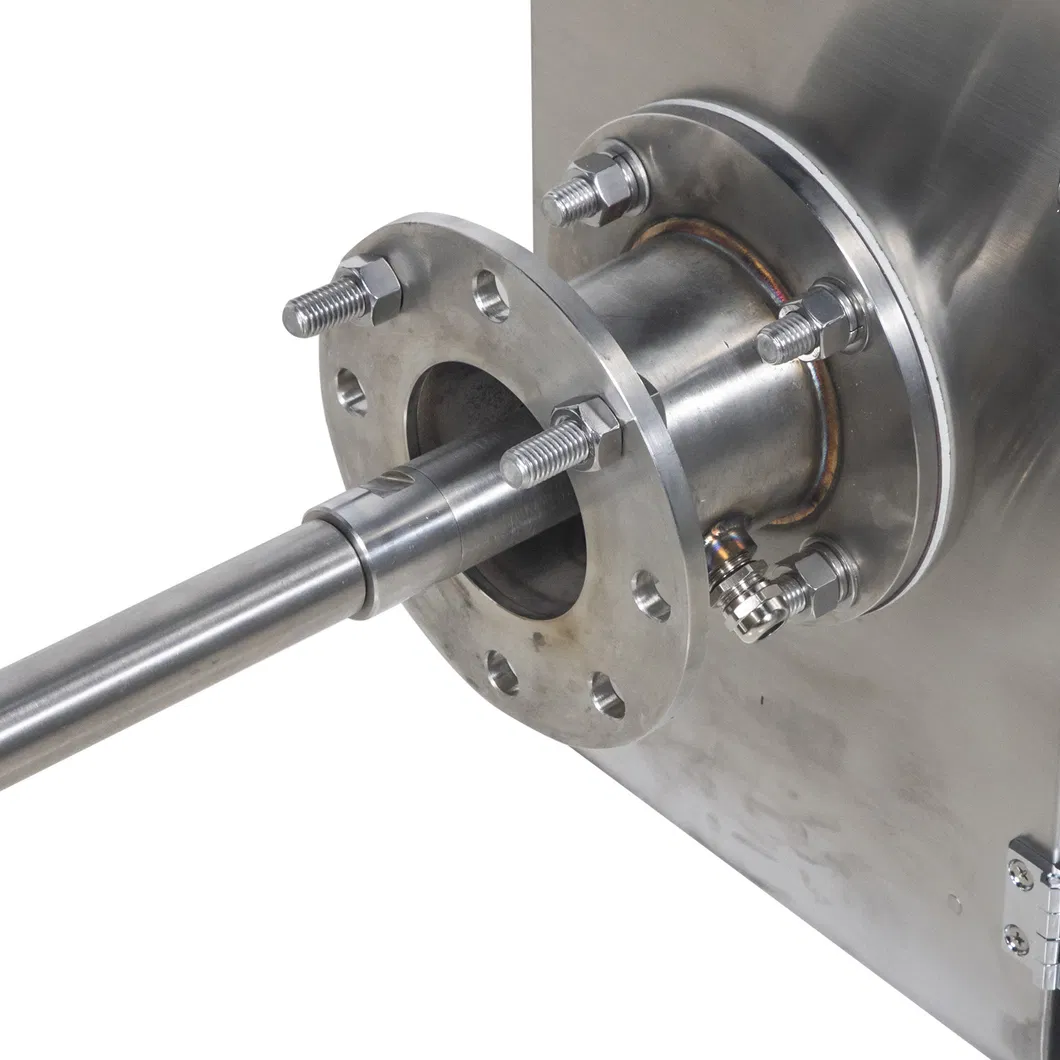

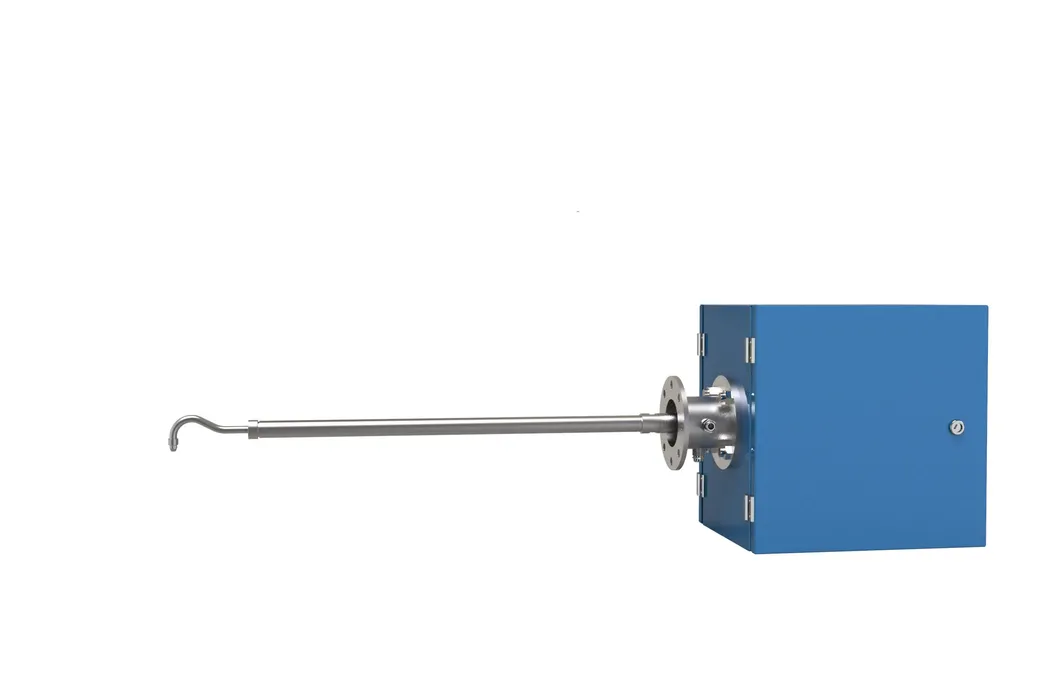

on-Line Analysis Equipment for Laser Scattering Flue Gas Concentration at High Temperature and Humidity
The online smoke and dust monitor adopts the forward scattering method to measure, through the whole process of high temperature extraction and constant velocity sampling, to avoid the influence of high humidity water vapor on the measurement. It can be used for continuous online monitoring of high ......
Send Inquiry
Product Description
The smoke and dust is extracted by constant velocity sampling and transmitted by high temperature heat tracing. Through the measurement area, the system finally collects the effective light signal and obtains the accurate dust concentration
| The main parameters | indicators |
| error | ≤10% |
| Warm up time | ≤15minutes |
| The response time | ≤30s |
| Flue gas humidity | ≤100%RH |
| The flue gas temperature | ≤400ºC |
| Measuring range | (0~5,0~20,0~50,0~100,0~200) mg/m3 |
| Minimum monitoring limit | 0.1mg/m3 |
| Sampling methods | Jet sampling |
| Signal output | 4-way 4-20mA analog quantity, 8-way switching quantity,RS232,RS485 |
| Protection grade | IP65 |
| Working temperature | -30~55ºC |
| Size | 400mm*550mm*300mm |
| The power supply | 220V 50HZ |
| Gas supply | ≥0.2MPA,≥50L/min |
| Range and elegant | 1.5%F.S/24h |
Box ,Wonden Box
Suzhou Woman Environmental Technology Co., Ltd. is a high-tech enterprise specializing in the development and production of environmental online monitoring and analysis instruments and related application software, service platform. The core team of the company has rich experience in the industry, including doctors, masters, undergraduates and other high-level talents, many of whom have participated in major national scientific research projects. The company products integrated optics, microelectronics, software, communication, mechanical and electrical engineering and other fields of technology, is one of the few domestic UV differential ultra-low flue gas analyzer, ultra-low emission dust monitor and other products technology independent intellectual property rights of innovative enterprises. Since its establishment, the company has been highly concerned by Xuzhou Municipal Government, and has rapidly grown into the only comprehensive enterprise in Huaihai Economic Zone which is engaged in environmental online monitoring research and development, production and sales
1,Are you a factory?
Yes, we have professional production and operation experience, the annual production can reach 3000 pieces.
2,Can you provide customized solutions?
Of course, we can provide gas monitoring solutions in the field of environmental monitoring, including atmospheric environment monitoring, flue gas environment monitoring, and water quality monitoring.
3,what is the MOQ?
The minimum order quantity is 1 piece, don't worry about the quantity.
4,What is the delivery time?
sample will be prepared within 15days after 100%T/T in advance payment,QTY will be delivered in 30days.
5,If i order big quantity ,Can i have a good price?
Please send me your specific requirements and we will adjust the price according to your specific requirements.
