Product Description

1) Description
Gas concentrations and history data can be displayed in the 2.4 inches LCD HD color screen, user can read all information at a glance . It can also export history data to computer via USB port so that the users can view in a EXCEL format or graph format.

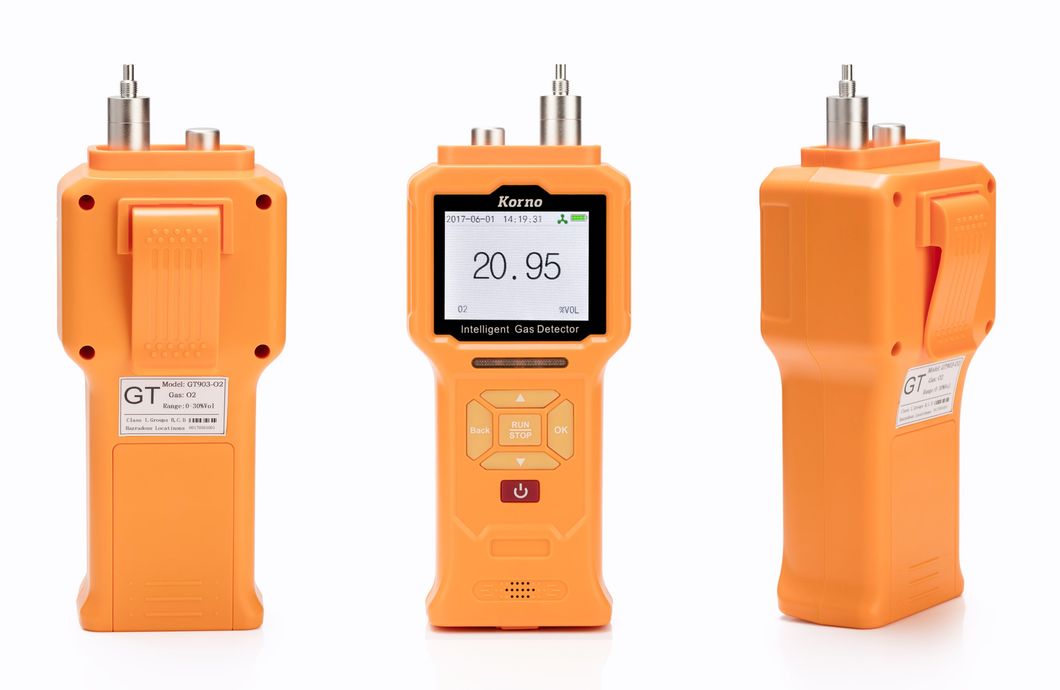

Portable Ammonia Gas Leak Detector and Meter (NH3)

Portable Ammonia Gas Leak Detector and Meter (NH3)

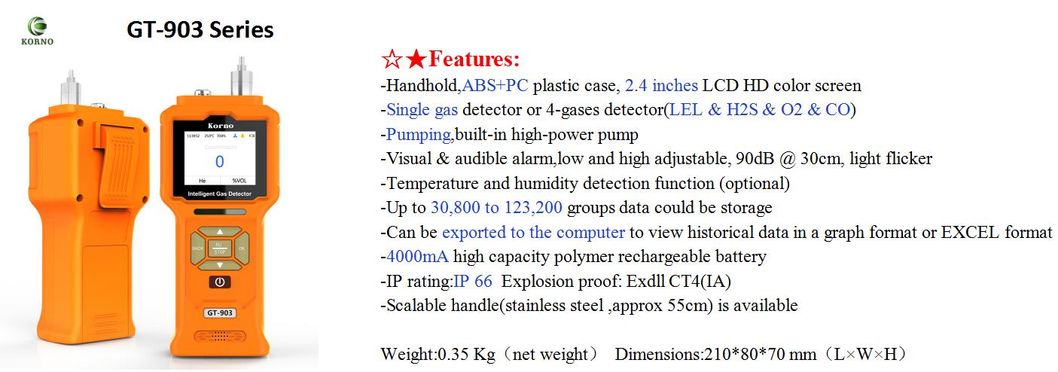

2) Features
1.STEL&TWA readouts
2.Up to 100,000 group data can be storage
3.Temperature and humidity detect function is including as standard.
4.Four operation modes are optional:Detection mode,Storage mode,Display mode,Pumping mode.
5.All software automatic calibration, the sensor can calibrate up to 6 target concentration values
6.Chinese and English operation model are available,user-friendly.
7.Can be exported to the computer to view historical data in a graph format or EXCEL format

Portable Ammonia Gas Leak Detector and Meter (NH3)

3) Specifications

Product type:	Portable,Ammonia(NH3)
Detection Range:	0-100ppm
Resolution:	0.01ppm
Temperature and relative humidity: (Optional)	Temperature detection range:-40 ~ 120ºC Humidity detection range:0-100%RH
Detection pattern:	Pumping, the flow rate is adjustable.
Detection Accuracy:	≤±3%F.S	Linearity Error:		≤±1%F.S
Detection Method:	Real-time detection mode, timing detection mode and cycle detection mode can be switch freely
Storage Method:	Automatically saving and manually saving is available, Up to 100,000 group data ,user can view history data on the display.
Explosion Proof Sign:	Exdll CT4 (IA)		Case material:		ABS+PC
IP rating:	IP66		Operating Temperature:		-30 ~ 60ºC(-22~144ºF)
Power:	4000mA high capacity polymer rechargeable battery		Operating Humidity:		≤90%RH,Non-condensing
Dimensions / Weight:	1808855 mm(L×W×H) 0.5 Kg(net weight)		Operating Pressure:		-30Kpa ~ 100Kpa
