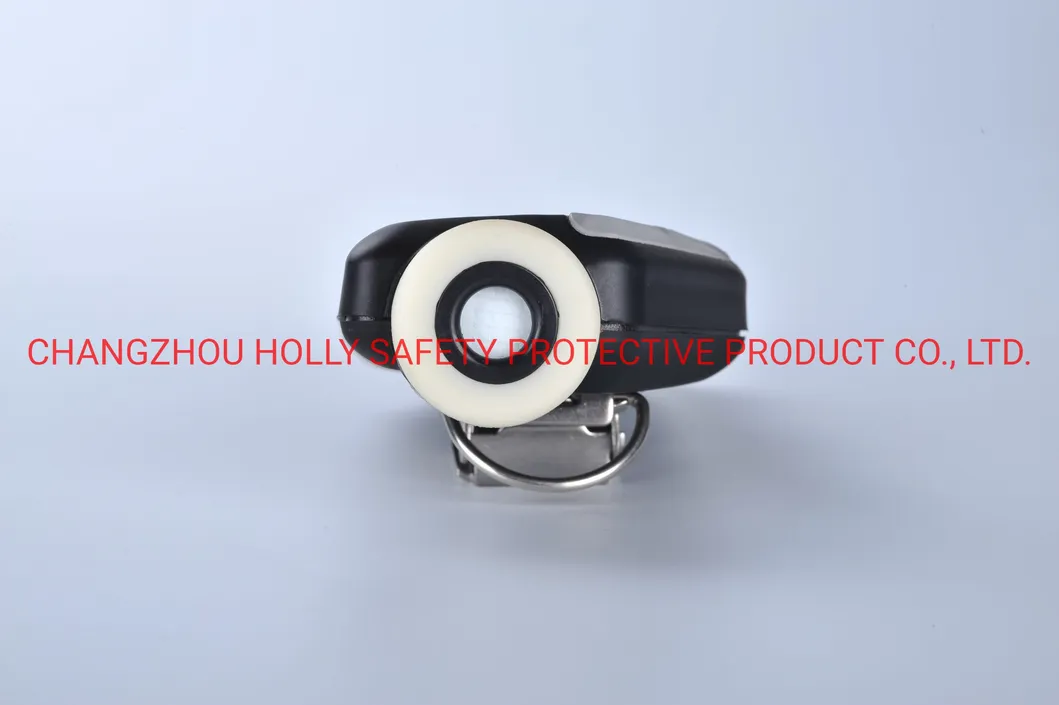

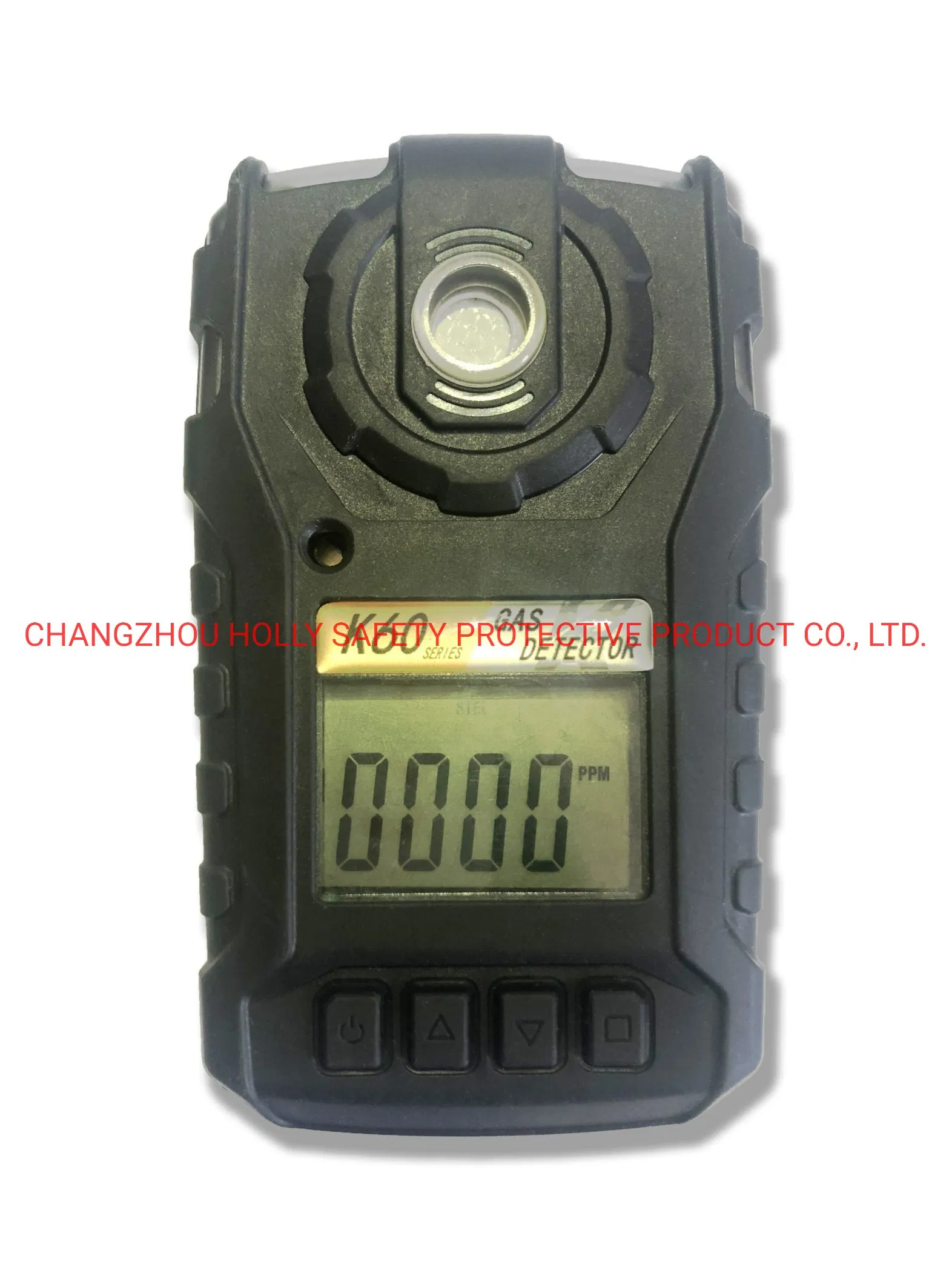

Portable Single Gas Cl2 Detector/Analyzer
Portable Single Gas CL2 Detector/AnalyzerFeatures:1) Equipped with import CITY, Alphasense, Dynament, SGX, Honeywell sensors 2)Light weight and small size design(less than 120g), easy to operate3)Bright, red flashing visible alarm 4)90dB audible vibration alarm 5)Excellent built-in vibration alert f......
Send Inquiry
Product Description

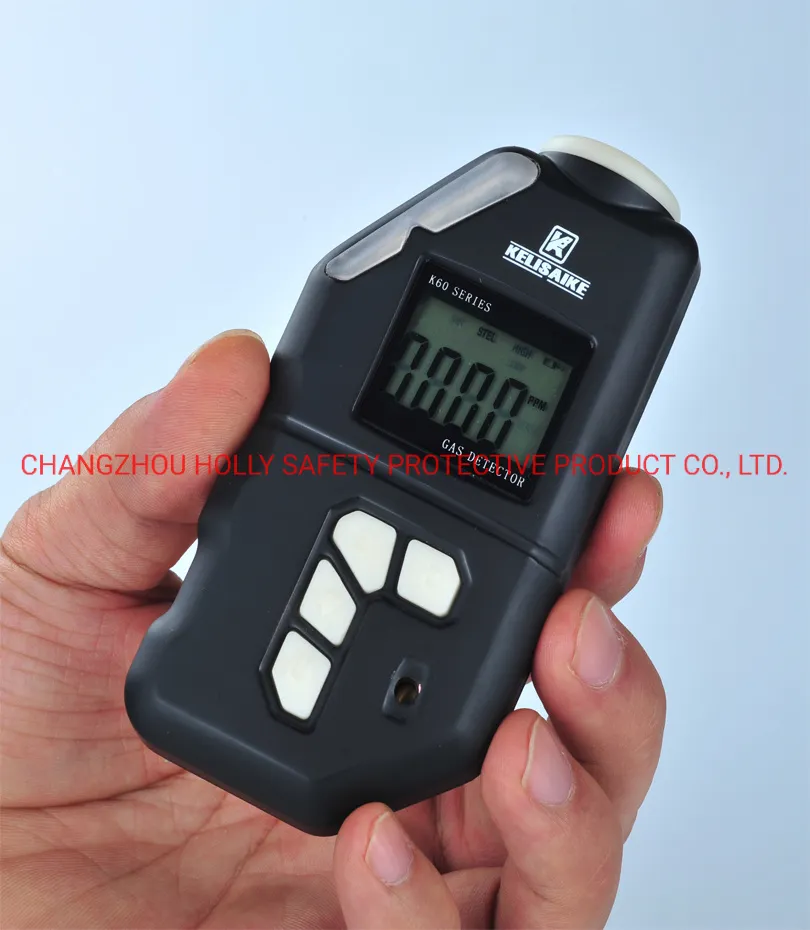

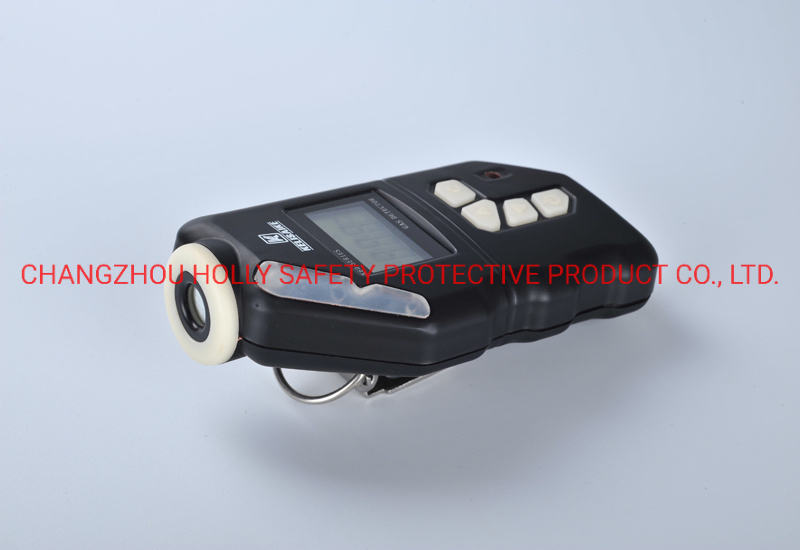

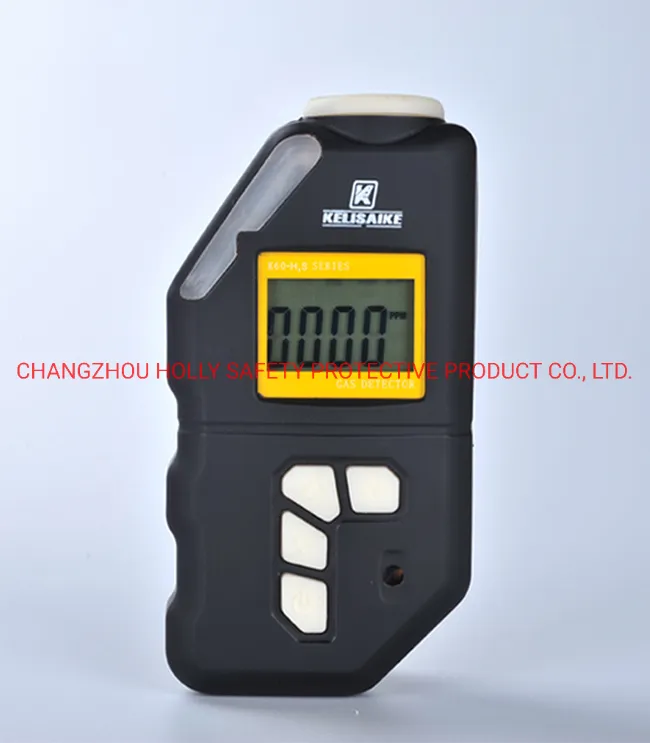

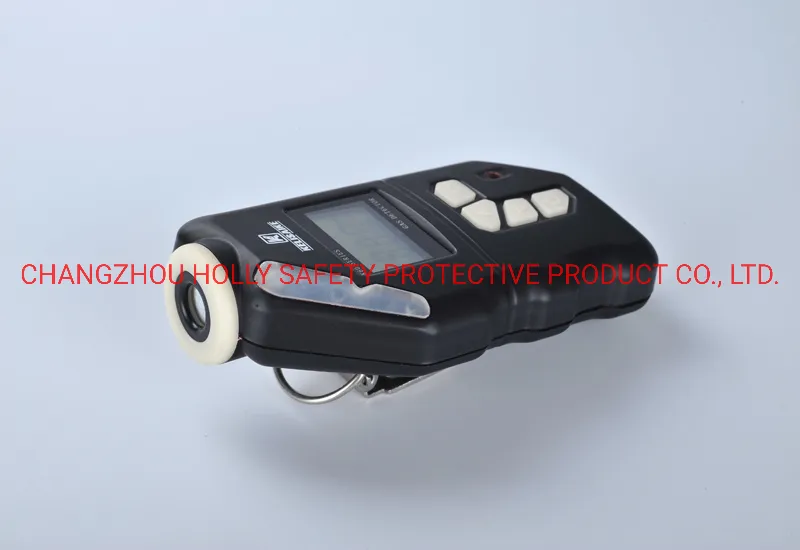

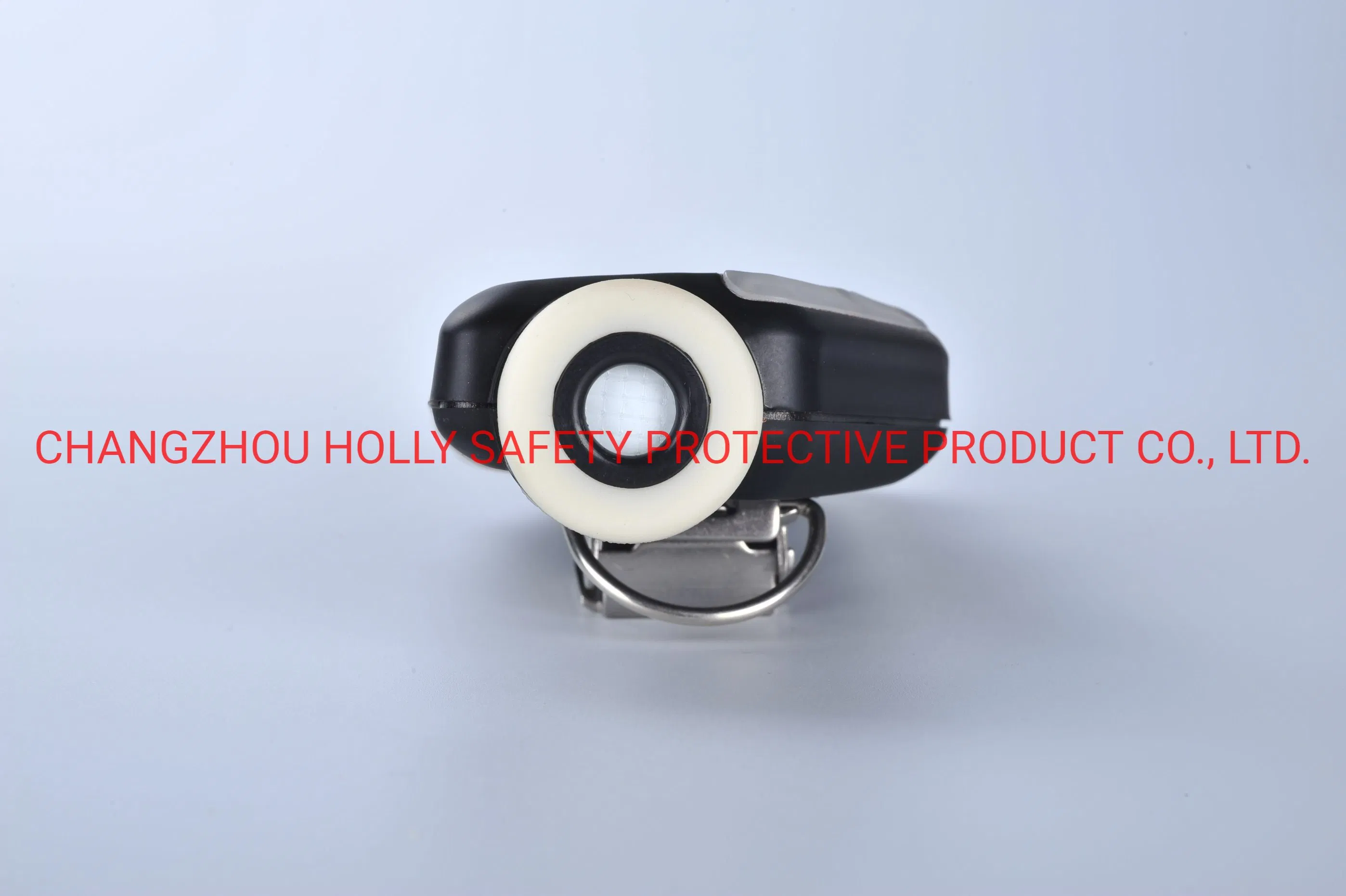

Portable Single Gas CL2 Detector/Analyzer
Features:
1) Equipped with import CITY, Alphasense, Dynament, SGX, Honeywell sensors
2)Light weight and small size design(less than 120g), easy to operate
3)Bright, red flashing visible alarm
4)90dB audible vibration alarm
5)Excellent built-in vibration alert for use in areas of high ambient noise
6)Strong, protective, concussion-proof design of IP67 protection able working in harsh environments
7)3.7V rechargeable lithium battery, continuously work for 10+hours
8)2+2 digits LCD real time display gas concentration

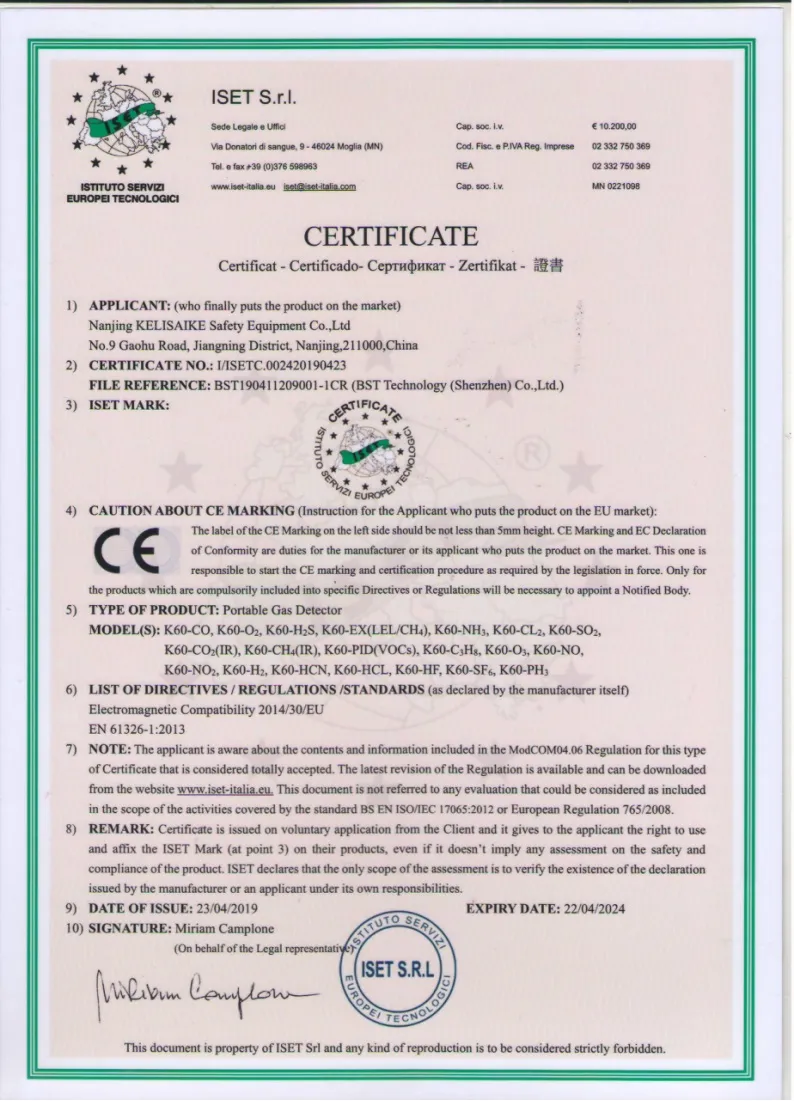

9) CERTIFICATIONS: CE, CMC, Ex, MA COAL MINING PRODUCTS IN CHINA )
Technical Specifications:
Mark: other customized gas types are also available.
Features:
1) Equipped with import CITY, Alphasense, Dynament, SGX, Honeywell sensors
2)Light weight and small size design(less than 120g), easy to operate
3)Bright, red flashing visible alarm
4)90dB audible vibration alarm
5)Excellent built-in vibration alert for use in areas of high ambient noise
6)Strong, protective, concussion-proof design of IP67 protection able working in harsh environments
7)3.7V rechargeable lithium battery, continuously work for 10+hours
8)2+2 digits LCD real time display gas concentration
9) CERTIFICATIONS: CE, CMC, Ex, MA COAL MINING PRODUCTS IN CHINA )
Technical Specifications:
| Item: | portable single gas detector |
| Model NO.: | K60 |
| Sensors: | UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors, ensuring high stability &sensitivity |
| Sensor service life: | 2 years |
| Operating voltage: | 3V lithium battery |
| Display: | LCD display |
| Alarm buzzer: | 90db |
| Alarm mode: | acousto optic alarm |
| Ambient temperature: | - 20 ° C ~ + 50 ° C |
| Relative humidity: | 15~90%RH(non condensation) |
| Material: | ABS, slip silicone |
| Detecting method: | diffusion |
| Dimension(mm): | 109×56×38mm |
| Explosion-proof grade: | ExdII CT3 |
| Weight : | 120g |
| Package: | carton |
| Pcs/ctn: | 1pc/ctn |
| Ctn size: | 150x105x47mm |
| Payment terms: | T/T |
| Warranty: | 1 year |
| Gas Types | Detection range | Response Time | Resolution | Alarm Values | ||
| O2 | 0-25%vol/30%vol | T90≤20s | 0.1%vol | 18.0%vol/23.0%vol | ||
| LEL | 0-100%LEL | T90≤30s | 1%LEL | 25.0%LEL/50.0%LEL | ||
| CO | 0-1000 ppm/2000ppm | T90≤30s | 1 ppm | 50ppm/100ppm | ||
| H2S | 0-200 ppm | T90≤30s | 0.1 ppm | 10ppm/20ppm | ||
| SO2 | 0-200ppm | T90≤30s | 0.1 ppm | 2 ppm /10 ppm | ||
| Cl2 | 0-20 ppm | T90≤30s | 0.1 ppm | 1 ppm /10 ppm | ||
| NH3 | 0-100ppm/2000ppm | T90≤50s | 1 ppm | 25 ppm /50 ppm | ||
| NO2 | 0-200ppm | T90≤25s | 0.1 ppm | 3 ppm /10 ppm | ||
| NO | 0-1000 ppm | T90≤50s | 1 ppm | 25 ppm /50 ppm | ||
| O3 | 0-1ppm/10ppm | T90≤30s | 0.1ppm | 0.3ppm/5ppm | ||
| PH3 | 0-10ppm | T90≤60s | 0.1ppm | 0.3ppm/5ppm | ||
| H2 | 0-2000ppm/4%vol | T90≤50s | 1 ppm | 50ppm /100ppm | ||
| HF | 0-10ppm | T90≤50s | 0.1ppm | 3ppm /10ppm | ||
| HCL | 0-30ppm/200ppm | T90≤50s | 0.1 ppm | 5ppm /10ppm | ||
| HCN | 0-200ppm | T90≤200s | 0.1ppm | 10 ppm /20 ppm | ||
| CH4 (IR) | 0-5.00%vol | T90≤60s | 0.01%vol | 1.00%vol/2.00%vol | ||
| VOCs | 0-1999ppm | T90≤20s | 0.1ppm | 1000ppm/1500ppm | ||
| CO2(IR) | 0-5.00%vol (0-1%vol) | T90≤60s | 0.01%vol (0.001%vol) | 1.00%vol/2.00%vol (customize) | ||
| C2H4 | 0-100ppm | T90≤60s | 0.1ppm | 10ppm/20ppm | ||
| C3H8(IR) | 0-5.00%vol | T90≤60s | 0.01%Vol | 1.00%vol/2.00%vol | ||
