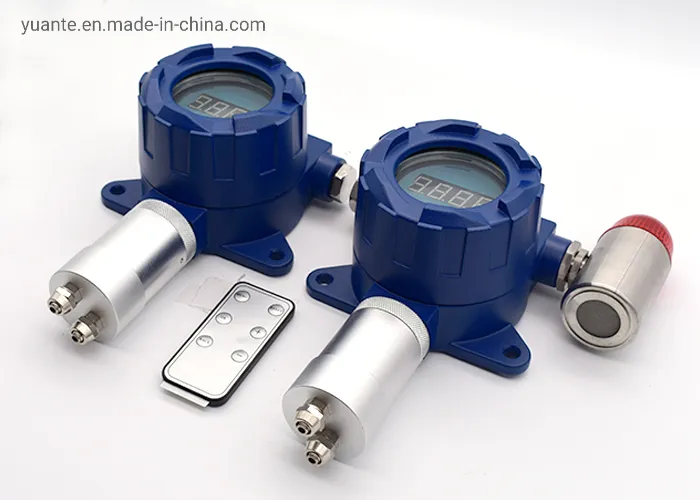

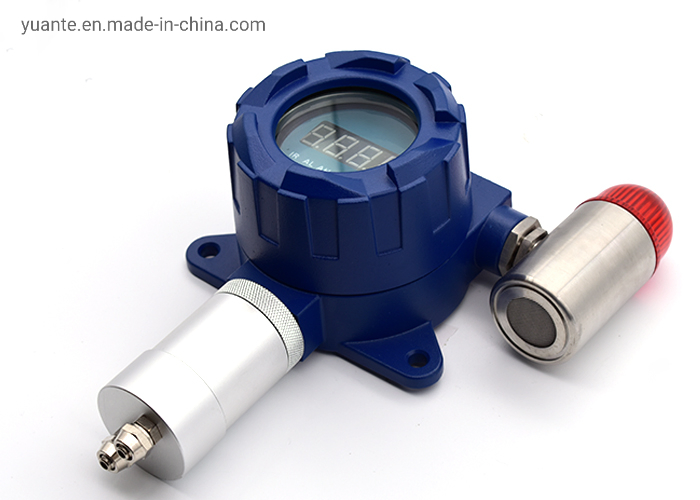

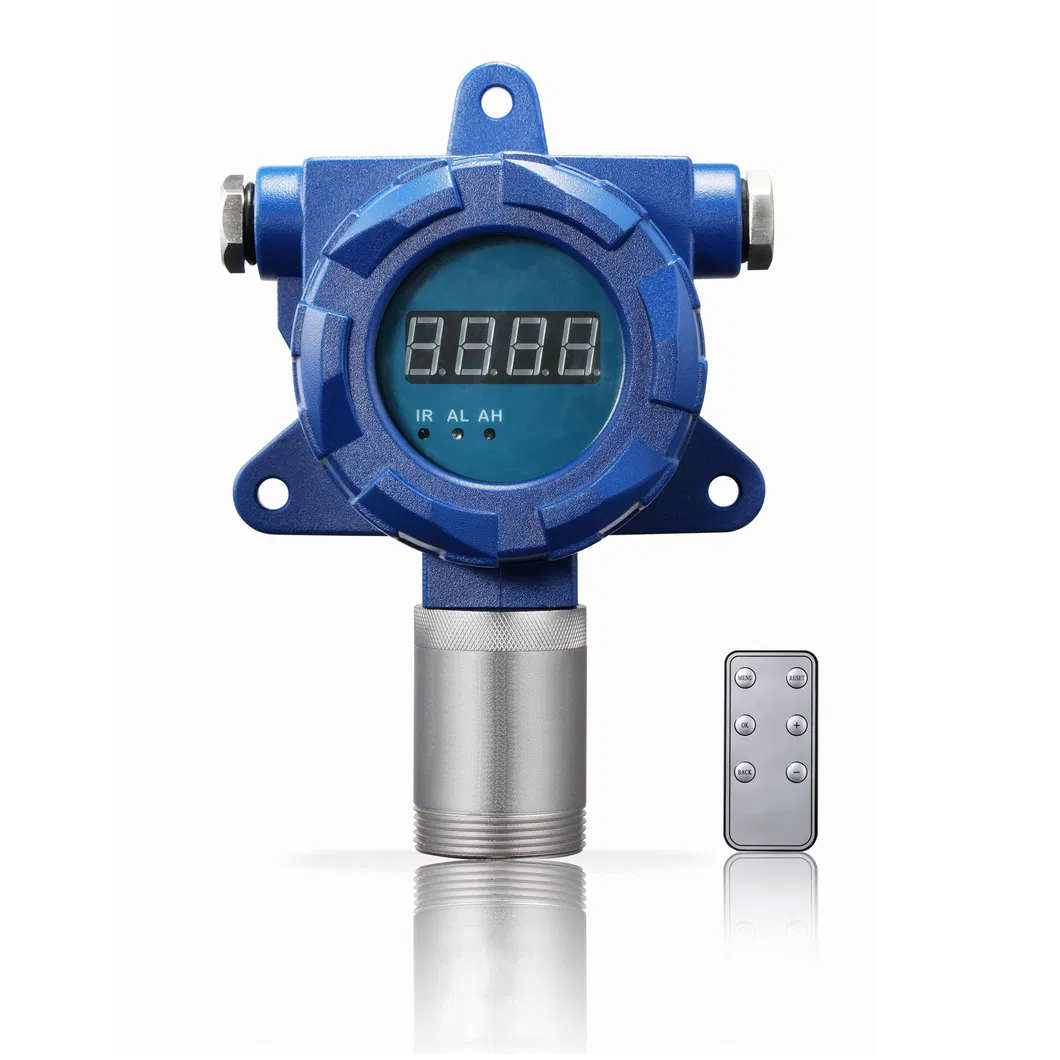

So2 0-5000ppm Gas Detector 24 Hour Online Monitor for Industrial with Import Sensor

Product Description

SO2 0-5000ppm Gas Detector 24 Hour Online Monitor for Industrial with Import Sensor

Product description

Characteristics & Functions

1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.

2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex d II CT6

3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.

4. Monitor the ammonia gas concentration in environment or pipeline and alarm.

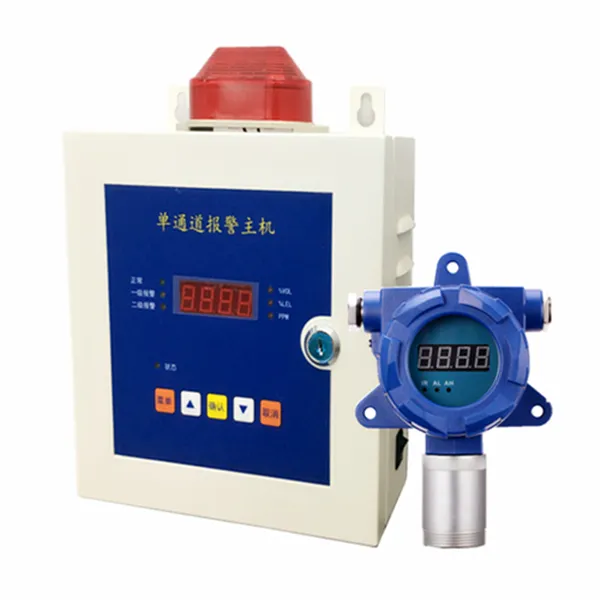

5. Two-stage alarm with sound and light, alarm point is settable.

6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.

7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.

Specificiation

Gas Detected	SO2
Detection principle	Electrochemistry

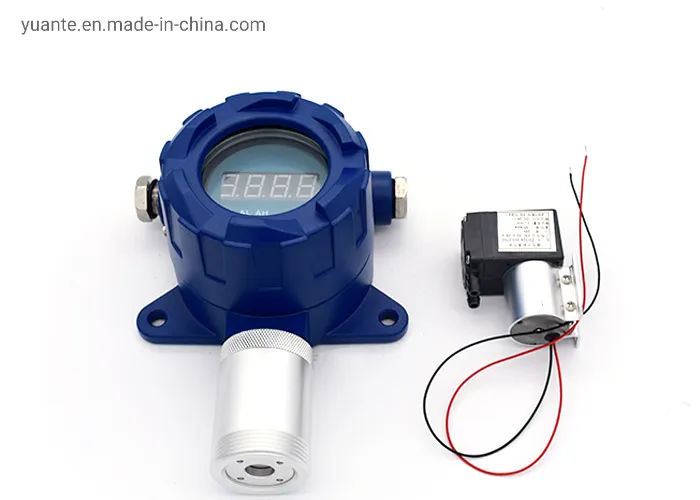

Install methode	Wall-mounted, piping type, flow-type(according to the detected environment)
Measure Range	0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm
Resolution	0,01ppm, 0,1ppm, 1ppm
Precision	≤± 3% F.S.
Signal Output	4-20MA, RS485, relay
Response Time	≤10S	Recovery Time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(F.S/year)	Display	High light nixie tube display
Operating language	G1/2 external thread explosion-proof flexible pipe	Gas unit	ppm
Temperature	-20ºC~50ºC	Humidity	0-90%RH
Explosion-Proof	Ex d II CT6	Degree of protection	IP65
Alarm mode	Sound, light	Operating time	24h
Dimensions	18015090mm	Weight	≤1.6kg
